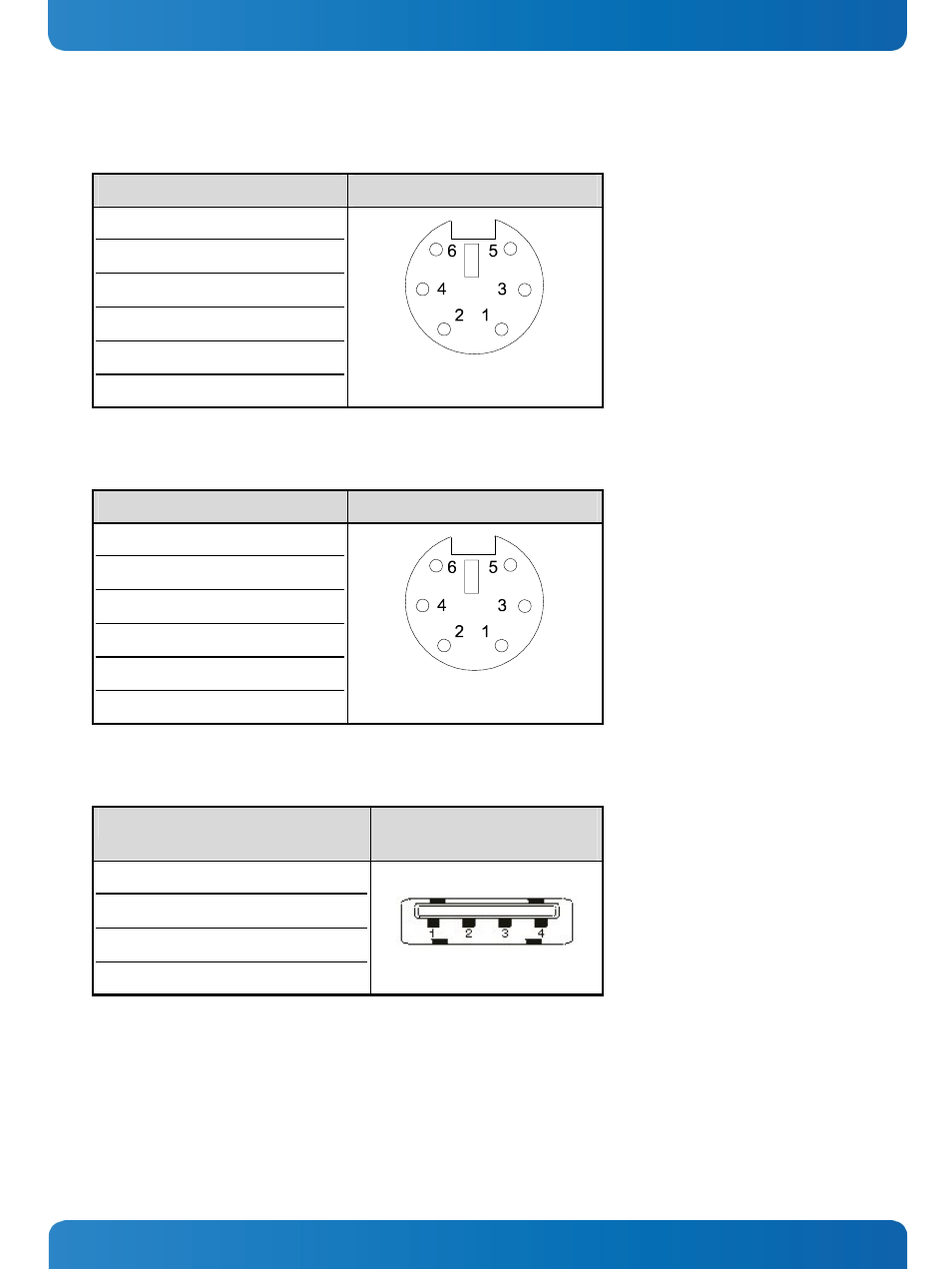

13. Standard Interfaces – Pin Assignments

KISS 1U Short – User’s Guide (V1.10)

13.1.3. PS/2 Mouse Connector

Pin Signal

Name

6-pin Mini-DIN Connector

1

Mouse data

2 N.C.

3 GND

4 ++5V/SB5V

5 Mouse

clock

6 N.C.

13.1.4. PS/2 Keyboard Connector

Pin Signal

Name

6-pin Mini-DIN Connector

1 Keyboard

data

2 N.C.

3 GND

4 ++5V/SB5V

5 Keyboard

clock

6 V.C.

13.1.5. USB Port

Pin Signal Name

4-pin USB Connector

Type A Version 2.0

1 VCC

2 Data-

3 Data+

4 GND

www.kontron.com

33
