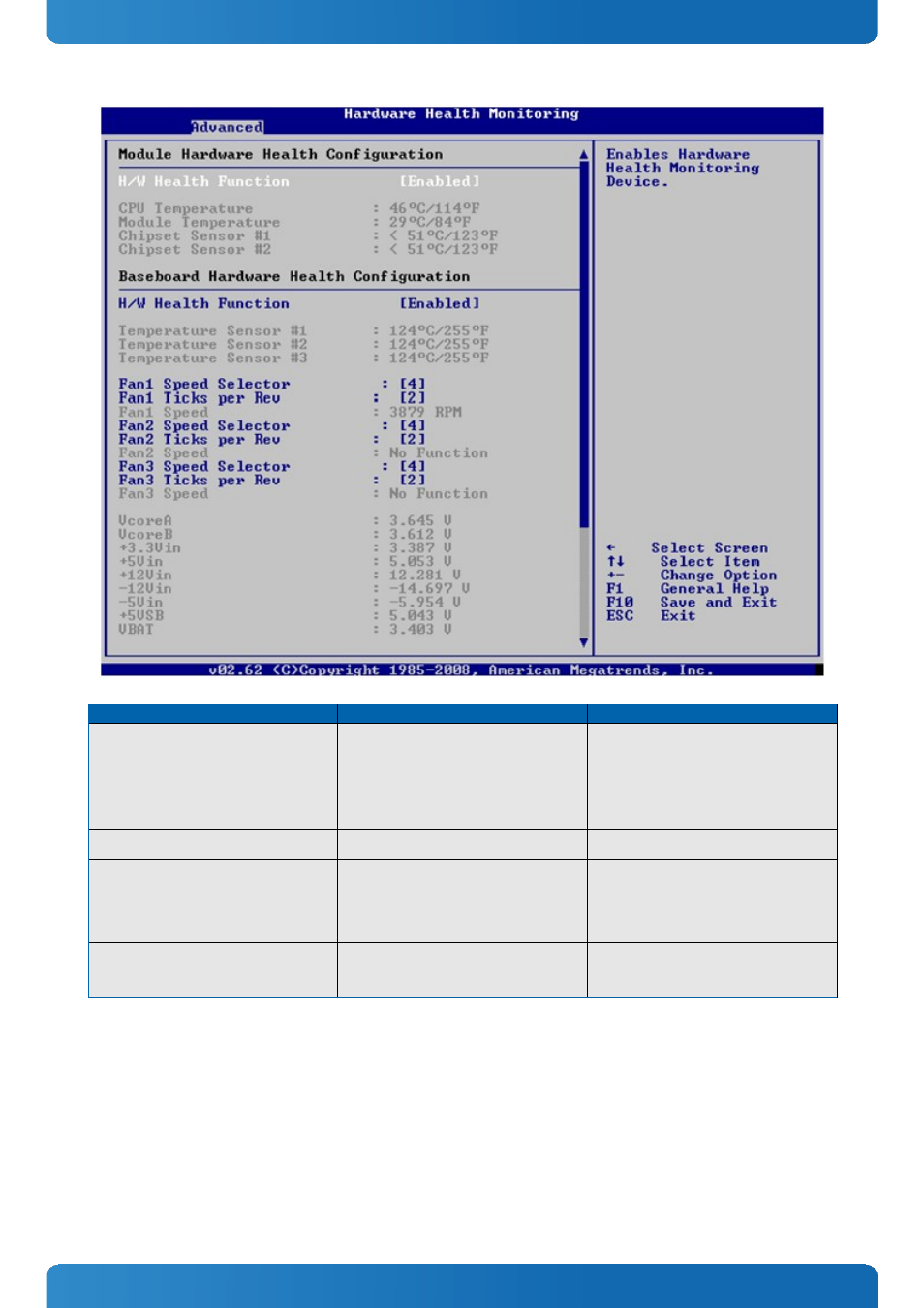

COMe-mSP1 / BIOS Operation
Hardware Health Configuration
Feature Option Description
Module HWM:
H/W Health Function Disabled
Enabled Enables the onboard Hardware Health Monitoring
Device
CPU Temperature: CPU ACPI temperature
Module Temperature: Internal temperature of HWM
Chipset Sensor #1 / Chipset Sensor #2: Internal
thermal sensors of US15W SCH to cause main memory
throttling and display refresh throttling.
See JIDA32/K-Station resource list for more details
Baseboard HWM:
H/W Health Function
Disabled
Enabled
Enables the Hardware Health Monitoring support for
external LPC I/O Winbond 83627
Fan Speed Selector 1
2
4
…
128
Select the FAN Speed Divisor according to nominal
revolutions per minute of used FAN:
Divisor 1: 8800 rpm, Divisor 2: 4400 rpm
Divisor 4: 2200 rpm, Divisor 8: 1100 rpm
Divisor 16: 550 rpm, Divisor 32: 275 rpm
Divisor 64: 137 rpm, Divisor 128: 68 rpm
Fan Ticks per Rev 1
2
4
8
Number of Ticks per Revolution
