COMe-mSP1 / Features and Interfaces
4.16 USB
The USB interface comes with three USB controllers (6 USB ports). The USB configuration of the COMe-mSP1 module is
described in the following table:
COM Express Port SCH US15W Port Description
USB0 USB0 USB 2.0 compliant
USB1 USB1 USB 2.0 compliant
USB2 USB4 USB 2.0 compliant
USB3 USB5 USB 2.0 compliant
USB4 USB6 Not USB 2.0 compliant, no UHCI controller (no USB 1.1 / USB 2.0 only)
USB5 USB7 Not USB 2.0 compliant, no UHCI controller (no USB 1.1 / USB 2.0 only)
USB6 USB3 USB 2.0 compliant
USB7 USB2 USB Client or USB 2.0 compliant port (configurable in BIOS Setup)

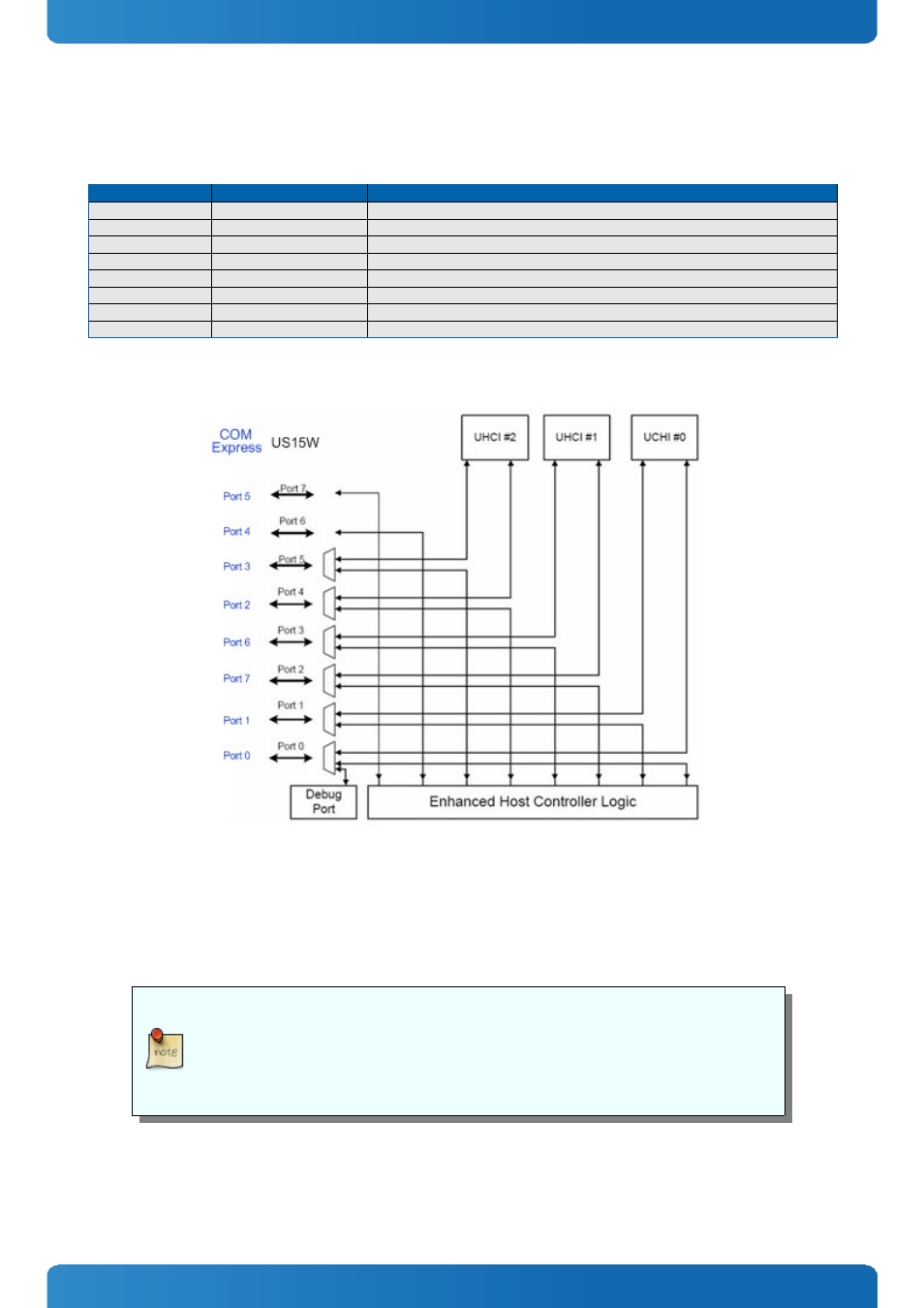

Internal USB mapping from US15W SCH
USB Client Port
The USB interface supports also one USB client port (USB port 7) that can be activated in setup. If the client function is
disabled in the BIOS this port acts as a normal USB 2.0 port. Please be aware that USB power lines may not be connected
on the USB client port.
Special USB client and host driver software is needed for USB client function. When this
driver and software is installed the client port appears as a mass storage device and NDIS
Network device or as NDIS Network device only in the device manager of the operating
system. Please refer to the Kontron COMe-mSP1 download page for the driver
43
