KTD-N0886-A Page 89 BIOS - Advanced
KTQM87/mITX Users Guide
Hardware Health Configuration
Note: System Temperature readout is the temperature measured by the selected sensor via System
Temperature Ext Type. If disabled then onboard sensor (U79) is used.

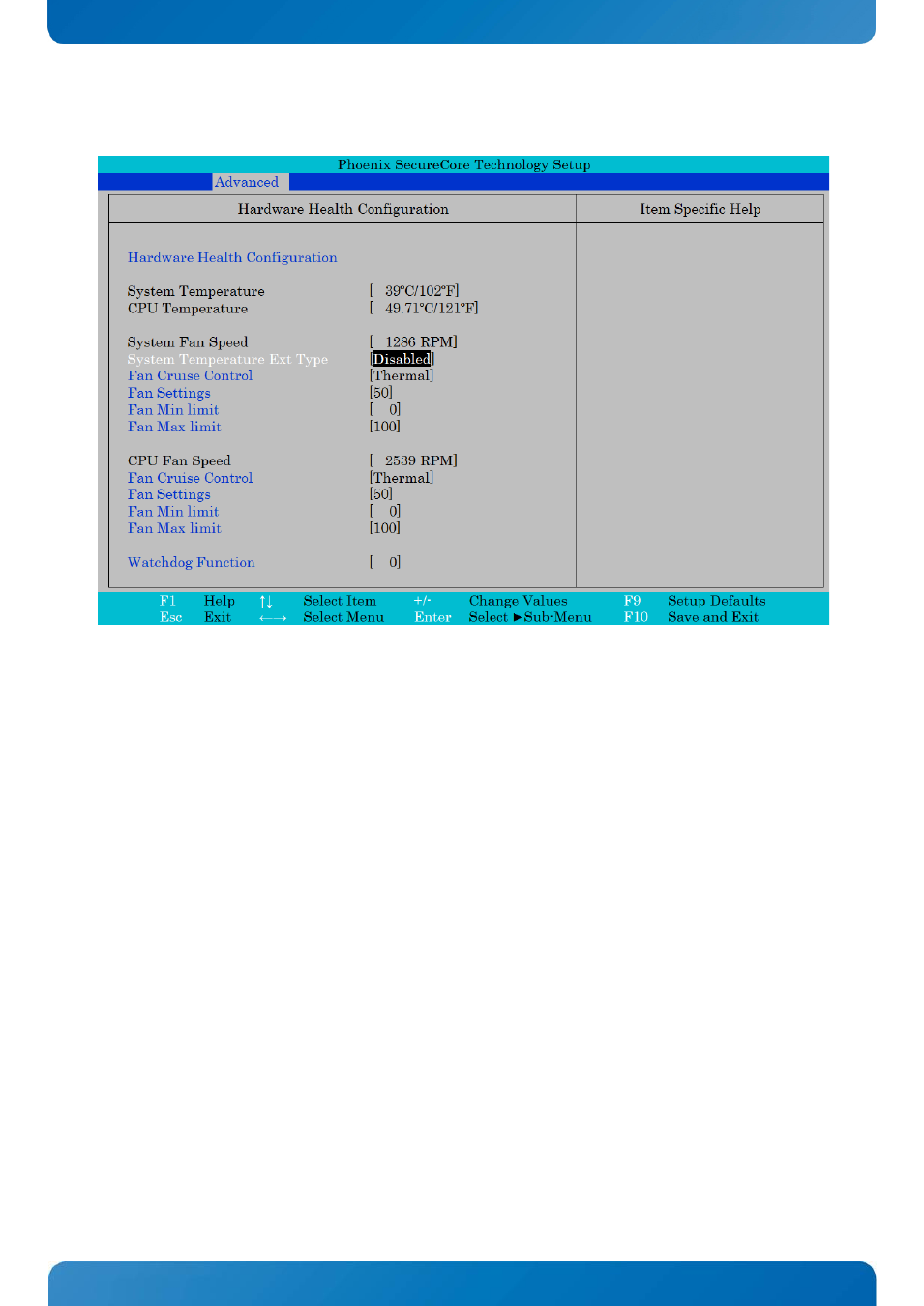

Phoenix SecureCore Technology Setup
Advanced
Hardware Health Configuration Item Specific Help
Hardware Health Configuration
System Temperature
CPU Temperature
System Fan Speed
System Temperature Ext Type
Fan Cruise Control
Fan Settings
Fan Min limit
Fan Max limit
CPU Fan Speed
Fan Cruise Control
Fan Settings
Fan Min limit
Fan Max limit
Watchdog Function
[ 39ºC/102ºF]
[ 49.71ºC/121ºF]
[ 1286 RPM]
[ Disabled ]
[Thermal]
[50]
[ 0]
[100]
[ 2539 RPM]
[Thermal]
[50]
[ 0]
[100]
[ 0]
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select ► Sub-Menu F10 Save and Exit
