KTD-N0886-A Page 16 System Specification
KTQM87/mITX Users Guide

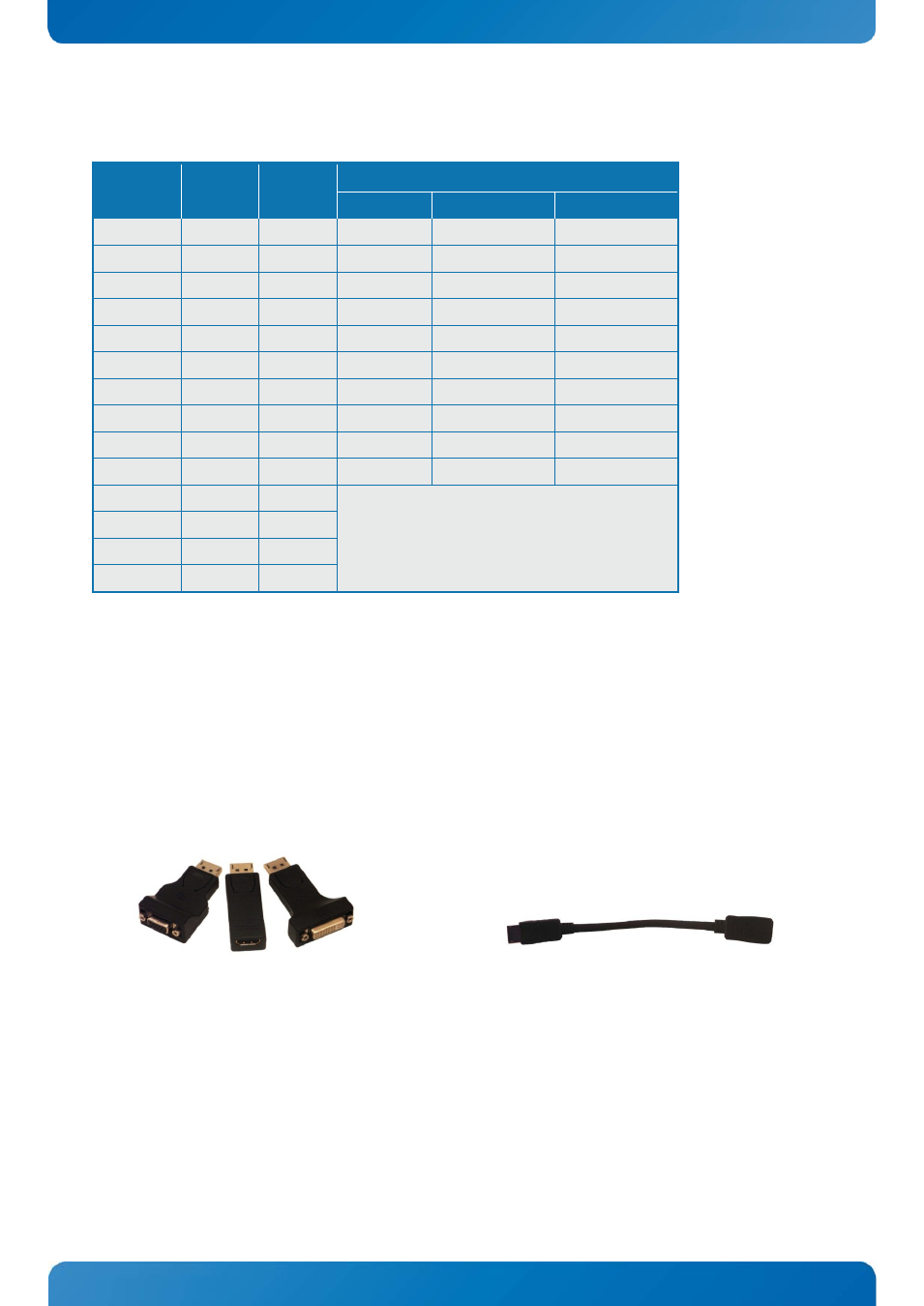

3-displays Configurations:
Display1 Display2 Display3
Max resolution @60 Hz
Display 1 Display2 Display3
LVDS DP DP 1920x1200 3840x2160 3840x2160
LVDS HDMI DP 1920x1200 2560x1600 3840x2160
LVDS HDMI HDMI 1920x1200 2560x1600 2560x1600
LVDS HDMI DVI 1920x1200 2560x1600 1920x1200
LVDS DVI DP 1920x1200 1920x1200 3840x2160
LVDS DVI DP 1920x1200 1920x1200 3840x2160
HDMI HDMI DP 2560x1600 2560x1600 3840x2160
HDMI DVI DP 2560x1600 1920x1200 3840x2160
DVI DVI DP 1920x1200 1920x1200 3840x2160
DP DP DP 3840x2160 3840x2160 3840x2160
HDMI HDMI HDMI
Not allowed
HDMI HDMI DVI
HDMI DVI DVI
DVI DVI DVI
By DVI and HDMI means using “DP to DVI passive adapter” and “DP to HDMI passive adapter” respectively.
If using “Active adapter” it will be same as “DP” in above table.
DP Adapters
Use of DP Adapter Converters (3 rd party accessories) can provide HDMI, DVI or VGA panel support.
The Kontron DP to VGA is the only active Adapter, so that both Kontron DP to HDMI and DP to DMI are
passive adapters. The DP to HDMI supports the HDMI 1.4a specification including audio codec.
DP to VGA DP to HDMI DP to DVI Cable DP Extender cable 200mm
PN 1045-5779 PN 1045-5781 PN 1045-5780 PN1051-7619
For alle the above adapter’s the maximum resolution is: 1920x1200. Extension cable available:
Alternative adapters with integrated cable are available:
KAB-ADAPT-DP-VGA, KAB-ADAPT-DP-HDMI and
KAB-ADAPT-DP-DVI.
