BIOS - Advanced
KTQ87/KTH81 Users Guide
LVDS Configuration
Function
Selection
Description
Switch mode
LVDS
DP
Switch Display Port-D between LVDS or DP.
LVDS Voltage Note1 3.3V
5V
Select the LVDS Voltage.
Panel Color Depth Note1
18 bpp
24 bpp
Select the LVDS Panel Color Depth.
Brightness Level Note1 0%, 10%, … 100% Select the LVDS Brightness Level.
Panel Driver Note1
HW default
LG 1600x1200
.
.
.
Test 3
Select the Panel (EDID)
Note 1, only when Switch mode = LVDS.

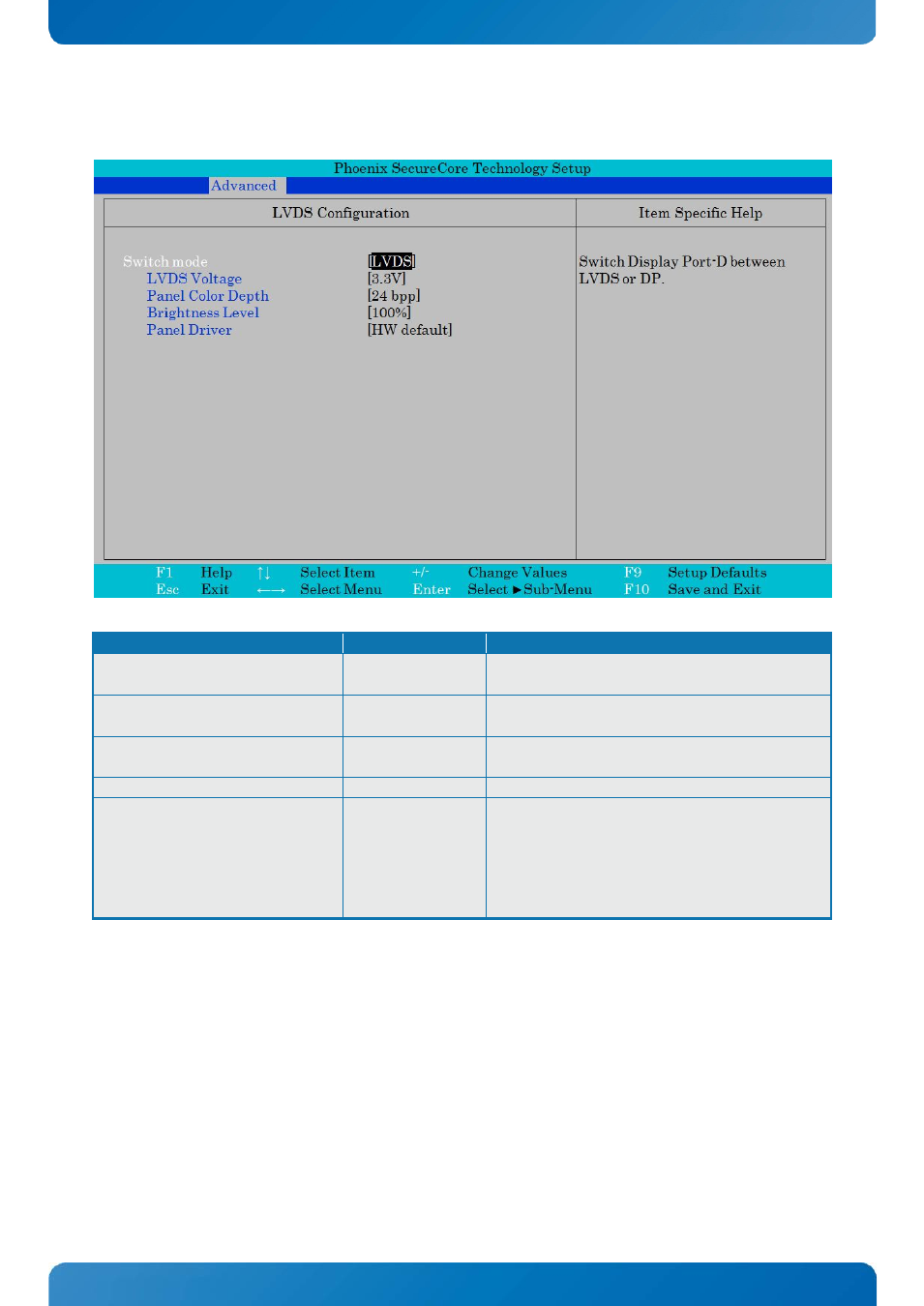

Phoenix SecureCore Technology Setup
