16 Operation www.ets-lindgren.com
Operation of Controls
Operation Screen
1. Turn on power to the HI-1710 LCR and the HI-2790B Power/Control
Module.

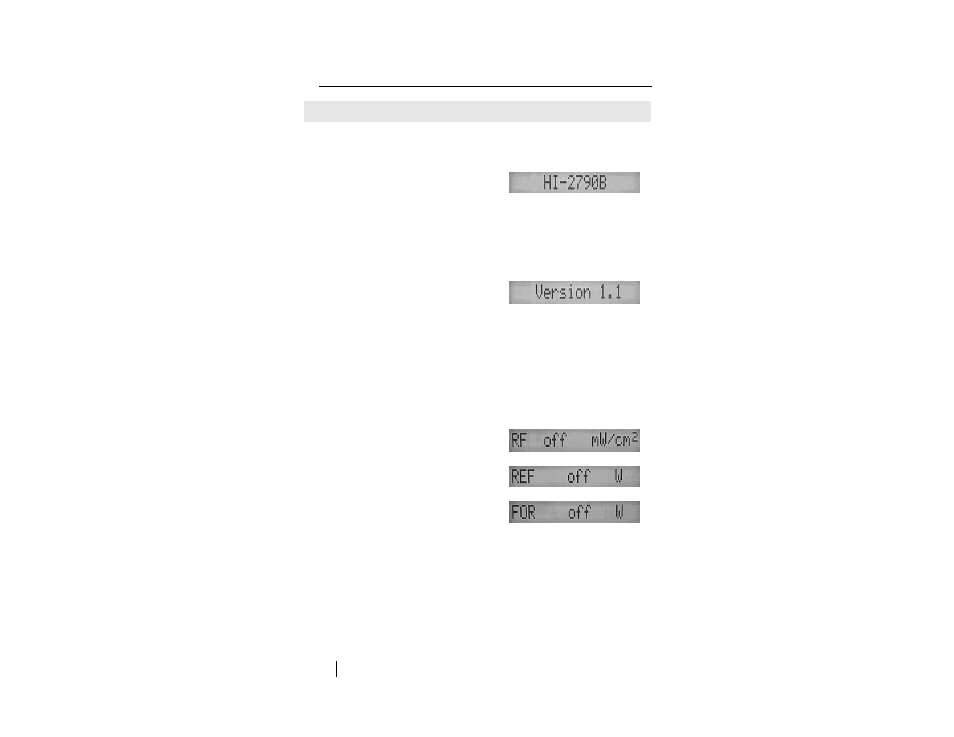

The two modes of the
Power/Control Module that
display are Operating and
Status. When initially turned
on, the product screen
displays.
The version screen displays,
and then the RF power
operating mode screen
displays.
2. In Operating mode, the home (initial) screen is RF power. Press the
UP ARROW key and the DOWN ARROW key to change the displayed
parameters within the selected Operating mode. The following
parameters are displayed in the Operating mode:
 RF Power
 Reflected Power
 Forward Power
