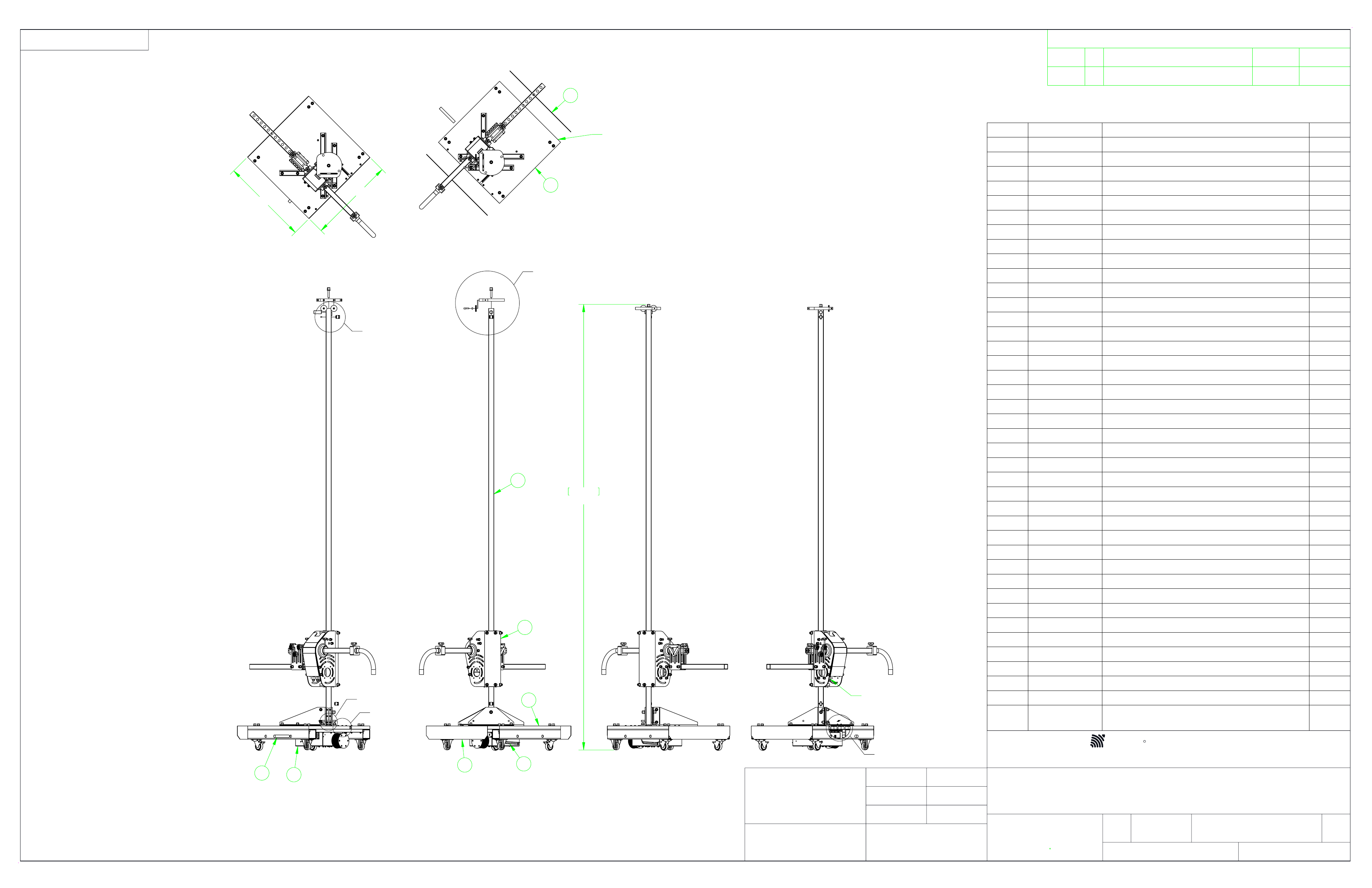

ETS-Lindgren 2175 Antenna Tower - Manual (Page 40)

34.25
34.50
A
B
D
8
18
C
7
4
17
6 22
176.63
4486.28
2X APPLY TAPE TO FULL
WIDTH OF BASE AND THEN
APPLY 1" LENGHTS EQUALLY
SPACED, 6" ON CENTER TO
CLOSURE.
17
6
E
ATTACH TWIN HOSE
TO FITTINGS ON AIR
CYLINDER.
NOTES:
1) CUT ROPE
1 EA. 29.5 FT. BURN ENDS
AND INSTALL ON WINCH
DRUM. TAPE TO HOLD IN
PLACE FOR SHIPPING.
2) CUT ROPE 3 EA.
18 FEET. BURN ENDS AND
INSTALL IN HOLES PROVIDED
IN MAST CAP FOR GUYING.
ITEM NO. PART NUMBER DESCRIPTION Default/QTY.
41 920300 TAPE,RECLOSABLE,250 STEMS/IN, I IN. WIDTH 8
40 910899 NUT,5/8-11,FG,BROWN 1
39 910686 SCREW,10-32 X 1/2,PHIL,FLAT,SS 4
38 910455 WASHER,1/4,FLAT,SS 5
37 910451 BOLT,1/4-20 X 1-3/4,HEX,SS 5
36 910357 SCREW,10-32 X 3/4,PHIL,BIND,SS 6
35 910331 SCREW,10-32 X 1/2,PHIL,BIND,SS 9
34 910269 NUT,8-32,HEX,SS 2
33 905194 COUPLING,BULKHEAD,1/8 NPT 2
32 890983 SLEEVING,SLIT-CONVOLUTED,PE,1/4" ID(NOT SHOWN) 23
31 890971 PIN,3/16 X 1" QUICK RELEASE 3
30 890951 PIN,1/2 X 5 GRIP LENGTH,SST 1
29 890950 FITTING,TUBE,1/8 NPT TO .17 ID,RT ANGLE 2
28 890947 HOSE,TWIN,1/8 ID X 1/4 OD,COILED,20 FT 1
27 890946 BUSHING,3/8 ID X 5/8 OD X 3/8,GRAPHITE 2
26 890797 BUMPER,.75 OD,.5 HT,#8 SCREW 2
25 890465 BARB HOSE 11924-1 CLIPPARD 4
24 890464 NUT TUBE 5000-2 CLIPPARD 4
23 860314 ROPE,3/16,2300 LBS 83.5
21 860140 TUBE,1/4 O.D. X .047 W.T.,NYLON,BLK 6.5
20 708041 FIBER OPTIC CABLE LIMIT SWITCH 6.5M(NOT SHOWN) 2
19 708040 FIBER OPTIC CABLE LIMIT SWITCH 1.5M(NOT SHOWN) 2
18 109363 LENSE,INFARED,1" X 8" 1
17 109362 BASE,ASSEMBLED,2175 1
16 109355 NUT,MAST CAP,2175 1
15 109354 PLATE,NUT,2" MAST 1
14 109353 BRKT 2,MINIMAST 1
13 109352 BRKT 1,MINIMAST 1
12 109285 BRKT,PIN MOUNT 3
11 109284 BRKT 2,MOTOR MOUNT 3
10 109283 BRKT 1,MOTOR MOUNT 3
9 109282 STUD,5/8-11 X 4,FG 1
8 109277 MOTORBASE,2175 1
7 109276 CARRIER,2175 1
6 109274 CLOSURE,BASE,2175 2
5 109272 CAP,MAST,2175 1
4 109271 MAST,2-1/8" X 4 METER,2175 1
3 109252 LIMIT,F.O. ASSEMBLY 2
2 108963 AXLE,ROPE PULLEY,3/8 DIA. 2
1 108962 PULLEY,2-5/16 MEAN DIA.,3/16 ROPE 2
MATERIAL
CHECKED
APPROVALS
1:16 109356 B
1
DECIMALS
UNLESS OTHERWISE SPECIFIED:
TOLERANCES ARE:
DIMENSIONS ARE IN INCHES
FINISH
X.XXX
X.XX
±
±
ANGLES
±
2
DRAWN
DOCUMENT, WHOLE OR IN PART,
PERMISSION OF ETS LINDGREN
WITHOUT EXPRESS WRITTEN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
EMC Test Systems, L.P.
Cedar Park, TX
TITLE
SRK
RG
DATE
Glendale Hts, IL
Lindgren-RF Enclosures
SEE BOM
DO NOT SCALE DRAWING
SHEET OF
.015
DWG. NO.
An ESCO Technologies Company
ETS LINDGREN
.005
.5
SIZE
D
SCALE
TM
REV.
REF DRAWING
ECO# REV APPROVED DESCRIPTION DATE
REVISIONS
5120 B CHANGED ROPE 09/14/06 SRK
NONE
12/12/04
POSITIONER,2175
2/4/05
