ETS-Lindgren 2175 Antenna Tower User Manual
Page 18
18
|
Assembly and Installation

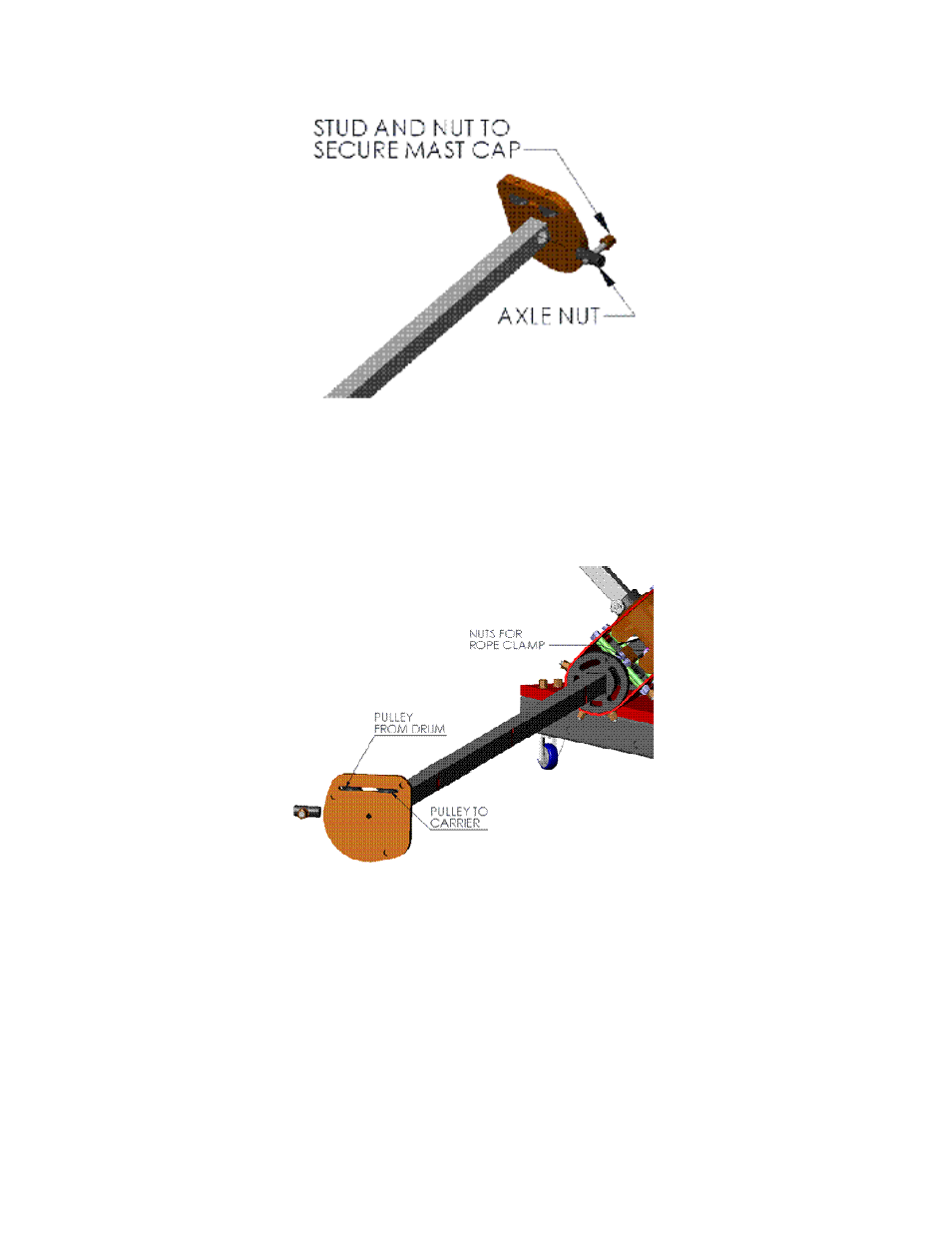

Figure 4: Securing the Mast Cap
5. Unwind the rope from the winch drum and feed it over the pulleys so that the free end
lines up with the clamp on the carrier brake assembly. Feed the rope through the
clamp on the brake assembly and tighten clamp nuts hand tight. Further adjustment
will be necessary once the mast is completely assembled.
Figure 5: Pulley Location
