16 | Assembly and Installation
Product Assembly
1. Attaching the motor is the first step of the assembly process. Locate the motor in the
packaging under the positioner base. Lay the motor with the winch drum facing the
direction of the slot provided in the base. Roll the platform over the top of the motor
and find the brackets under the platform that pin the motor into position.
Tabs on motor slide between the brackets on the platform.

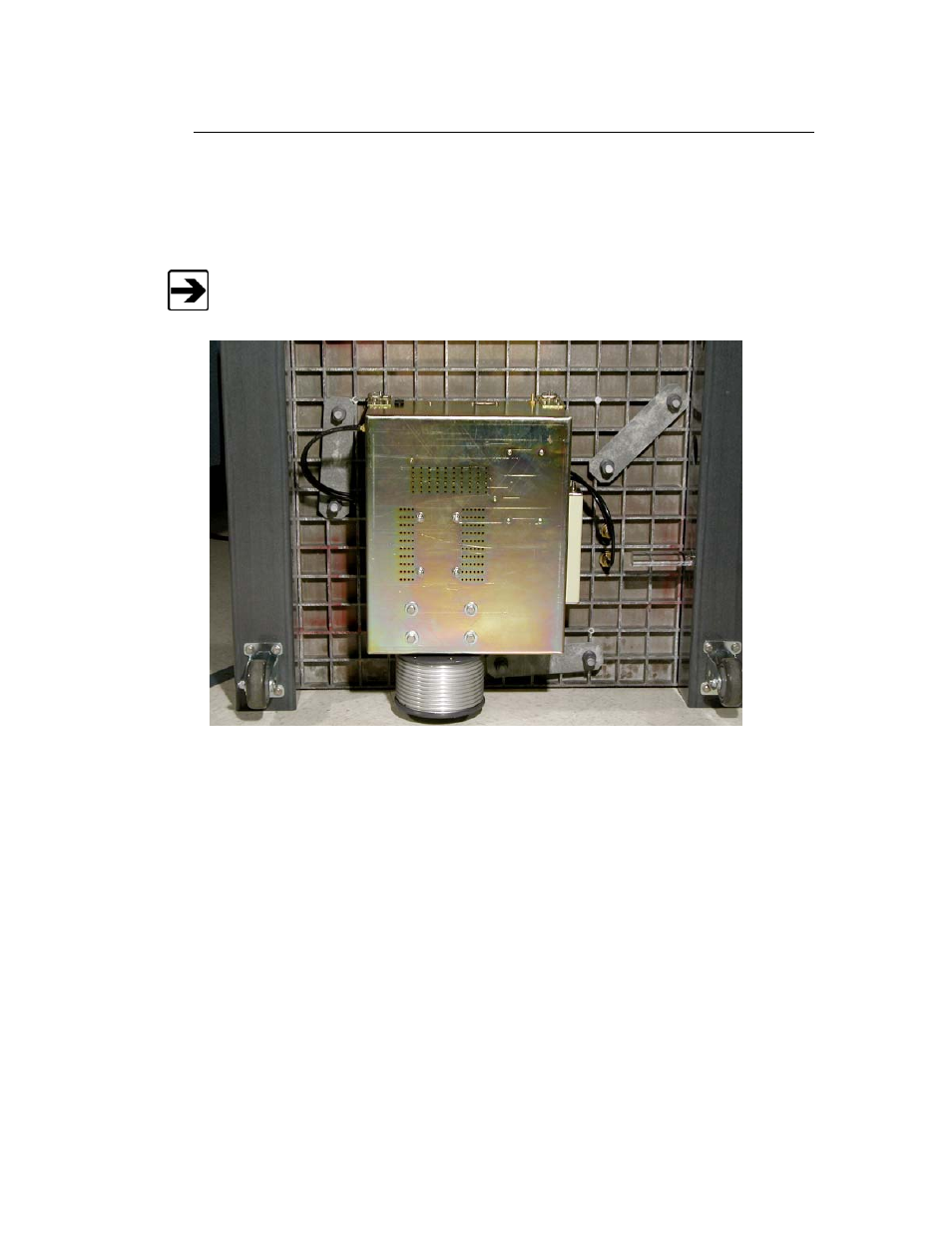

Figure 2: Motor attached to bottom of MiniMast
2. Lift slightly on the motor and insert the pins provided to secure the motor in position.
Once pinned into position, the platform and motor together may be placed on one
side to connect the air hoses from the platform to the motor base. After the air hoses
are connected lay the positioner platform back into position with the casters on the
floor.
