Elecraft KX3 Mobile Installation And Operation Guide User Manual
Page 11
11

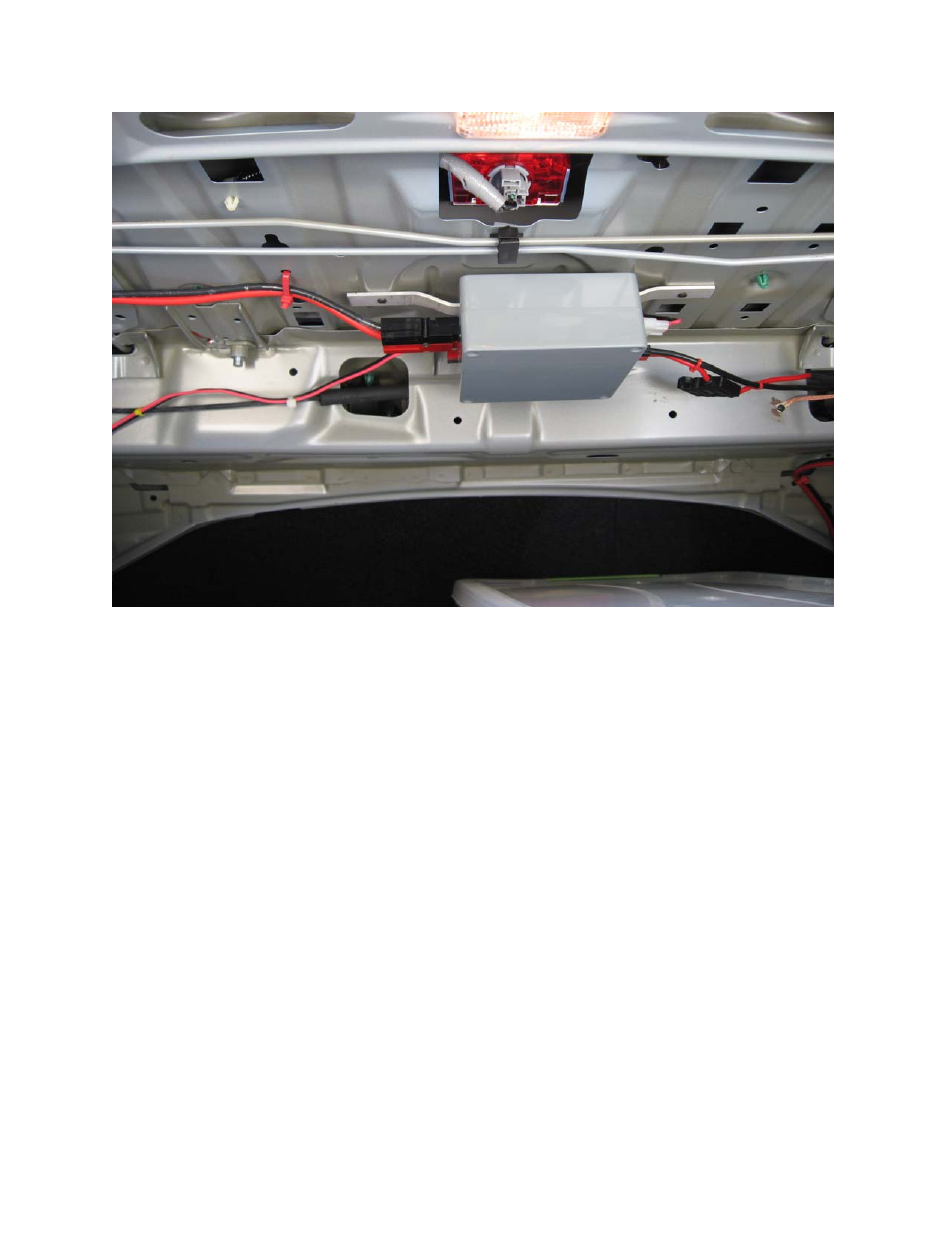

Figure 6. Trunk‐mounted relay enclosure and cabling. The 8 AWG battery power feed enters the
enclosure via the APP pair on the left. Behind it is the control input wiring from the panel switch shown
in Figure 5. The 10 AWG power cable exiting to the right is protected by a 30A inline blade fuse. It’s
routed under the rear seat and carpet to the in‐cab West Mountain 5x APP strip shown in Figure 6 on
the next page. The enclosure and all cable ties are secured to the rear deck’s metal understructure.
Note the hard‐point ground at the right – used to provide a solid ground for the antenna.
