Page 18: Page 17

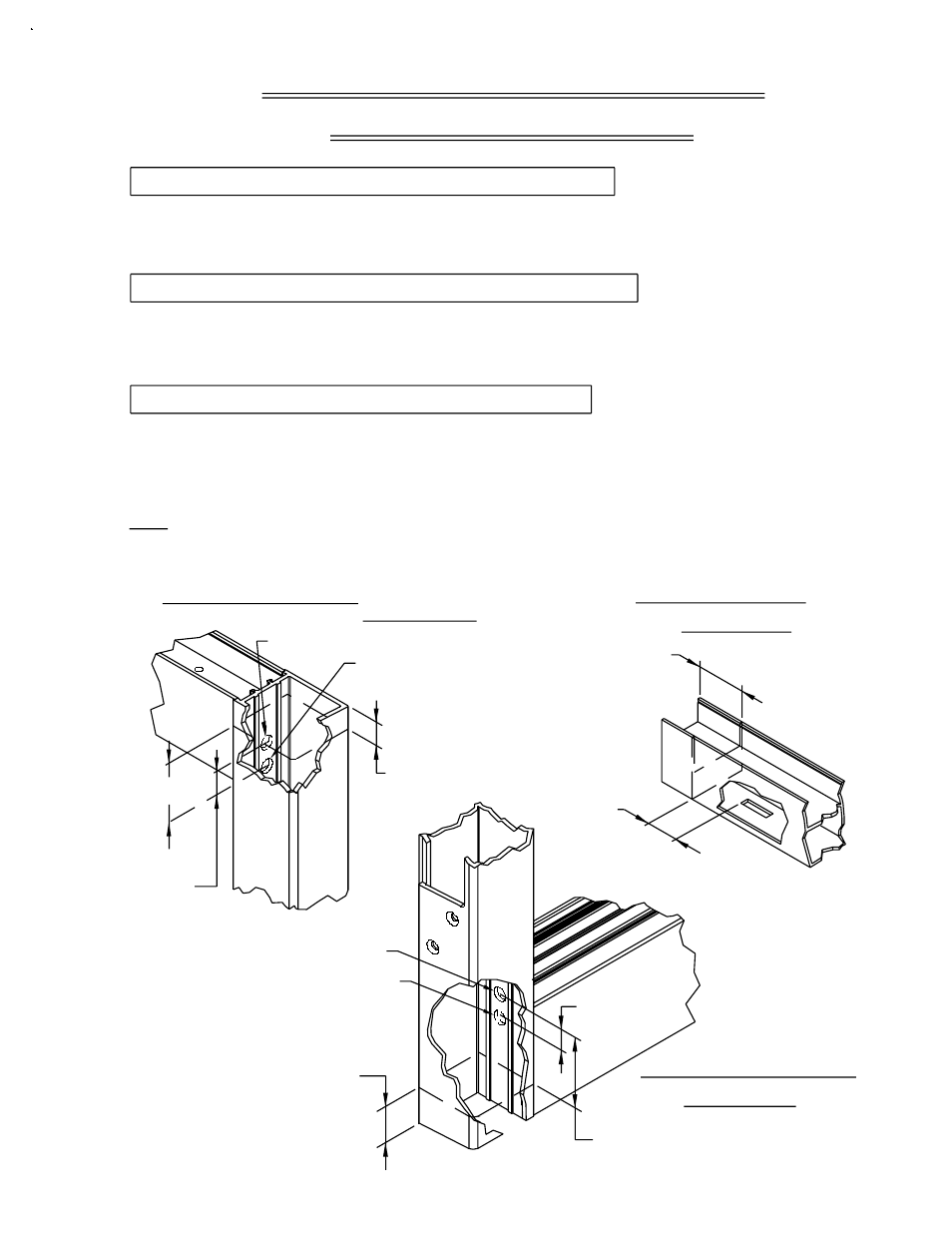

HINGED STILE CUTOFF
11/16" MAX.
1 1/8"
FIGURE #19
MIN.
LOCK STILE CUTOFF
STEP #25 TOP RAIL LENGTH ALTERATIONS
CUTOFF
FIGURE #20
TOP RAIL CUTOFF
FIGURE #21
SECTION XIV: TIE ROD DOOR CUT
STEP #23 LOCK STILE LENGTH ALTERATIONS
STEP #24 HINGED STILE LENGTH ALTERATIONS
9/16" MIN.
CUTOFF
9/16"
REF.
9/16" MIN.
CUTOFF
9/16"
REF.
LENGTH ALTERATIONS
PAGE 17
The maximum cutoff for the top rail is 11/16" as shown in Figure #21. The cutoff must be
taken from the offset jack screw end so as not to interfere with the concealed overhead
closer prep at the hinged end of the rail.
Note: Fabrication done in the field must bypass the factory drilled holes by 1/2 the
diameter of the hole. There is no minimum cutoff length for the bottom rail.
DPS/BB JULY 2000
FACTORY PREPPED HOLE
.391"(25/64")
DRILL THRU
.391" (25/64")
DRILL THRU
FACTORY PREPPED HOLE
The minimum cutoff for the hinged stile is 9/16" as shown in Figure #20. When using a
C.O.C., the cutoff must be taken from the bottom of the hinged stile only. This will prevent
interference with the preps for the concealed overhead closer at the top of the stile.
The minimum cutoff for the lock stile is 9/16" as shown in Figure #19. The minimum cutoff
needs to be taken from the top of the lock stile only. This will prevent having to relocate
the M.S. lock.
1 9/16"
2 1/8"
