Page 15

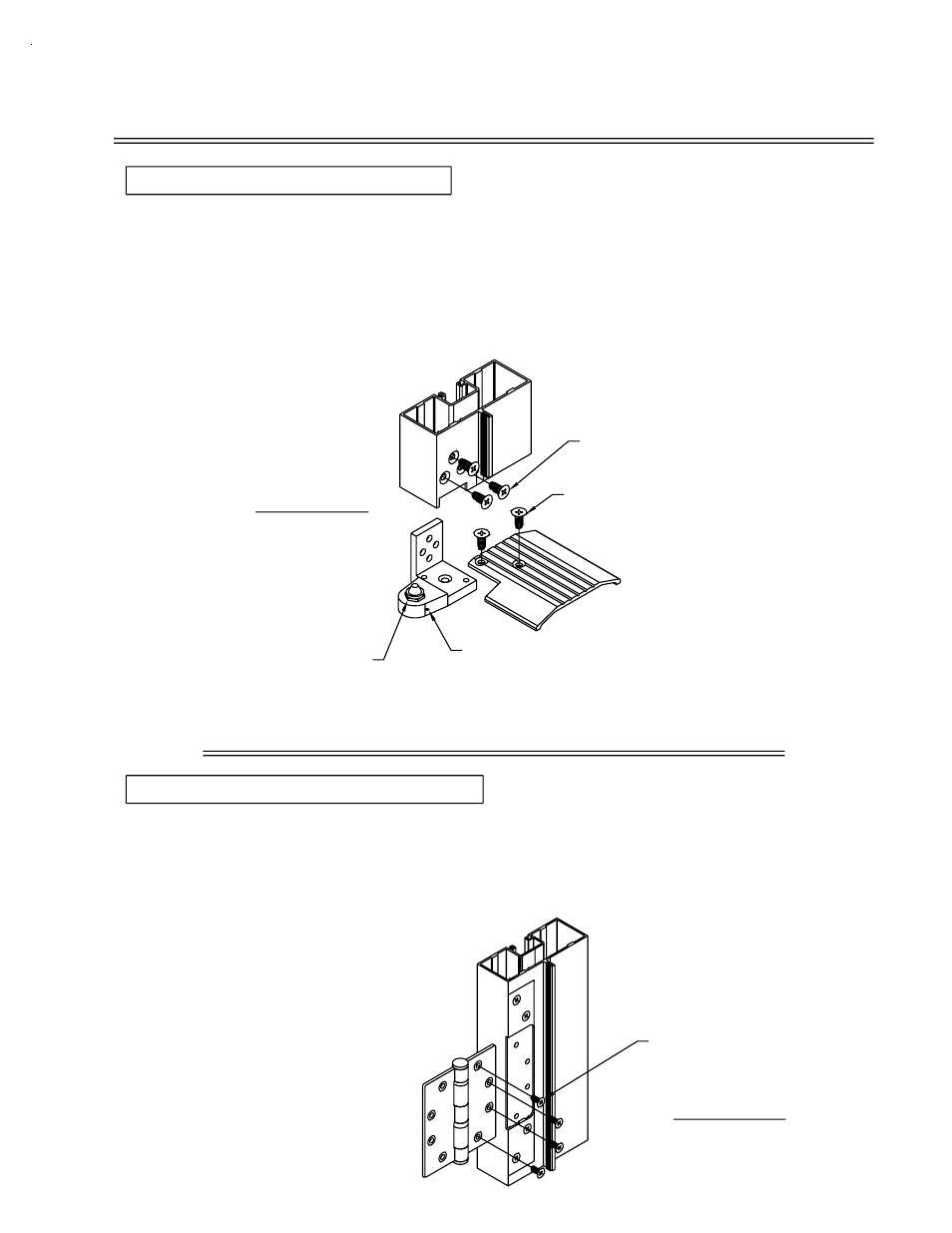

FIGURE #15
SECTION X: BUTT HINGE APPLICATION
STEP #18 BUTT HINGE INSTALLATION
FIGURE #14
SECTION IX: OFFSET PIVOT APPLICATION (CONT.)
STEP #17 BOTTOM OFFSET PIVOT
PAGE 14
DPS/BB JULY 2000
#12-24 X 1/2"
F.H.M.S.
#12-24 X 1/4"
F.H.M.S.
#12-24 X 3/4"
F.H.M.S.
PIVOT PIN
SET SCREW
Be sure the butt hinge reinforcing plate in the frame is in the correct position. Align the
hinged side of the door to the hinge reinforcing plate in the frame. Using a #3 tipped
screwdriver, attach the hinges to the frame with four (4) #12-24 x 3/4" F.H.M.S. as shown
in Figure #15.
Attach the bottom offset pivot frame portion to the bottom of the jamb using three (3)
#12-24-1/4" F.H.M.S., and attach the threshold to the bottom pivot with two (2) #12-24 x
1/4" PL-FH-MS. Adjust the door clearance by turning the pin clockwise to lower the door,
and counterclockwise to raise the door. After the proper door clearances are reached,
tighten the set screw on the pivot with a 3/32" Allen wrench. See Figure #14.
