SERIES 5600 CENTER TONGUE SUNSHADE CLIP INSTALLATION MANUAL 6/2012
EFCO CORPORATION PART #YWSS Page 37 of 41

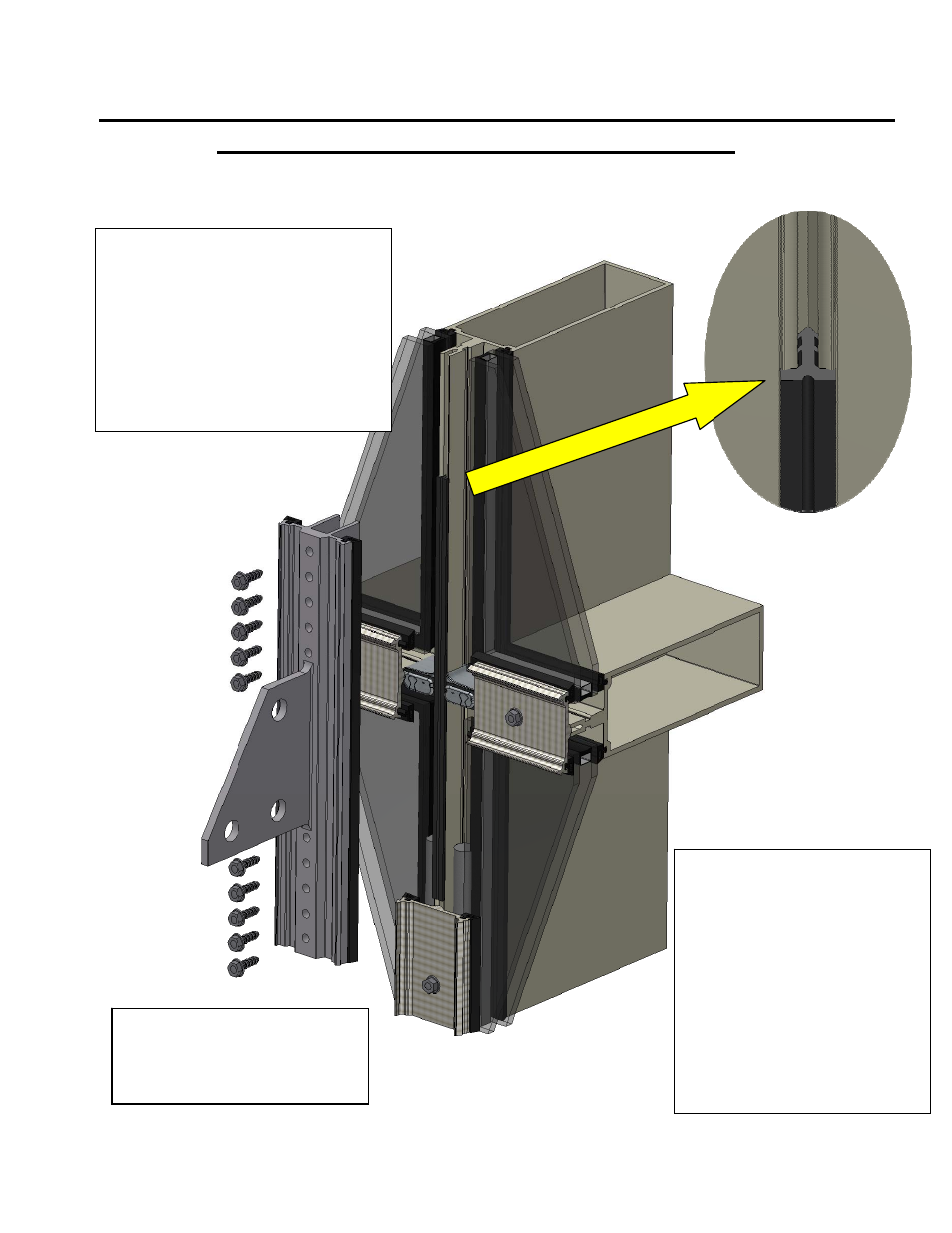

SECTION XIII: SUNSHADE CLIP ATTACHMENT UTILIZING
BUTT JOINTED 2½” OUTRIGGER CLIP
LOCATE AND PRESS IN 12.5”
LENGTH OF THERMAL ISOLATOR
AS IDENTIFIED BY THE SHOP
DRAWINGS INTO THE MULLION
TONGUE.
THE ISOLATOR SHOULD BE
LOCATED ¼” ABOVE THE LOWER
PRESSURE PLATE.
LOCATE AND INSERT THE
SUNSHADE CLIP ¼” ABOVE
THE LOWER PRESSURE PLATE
PER THE SHOP DRAWINGS.
NOTES:
FASTENER QUANTITY AND
TYPE SHOULD BE BASED ON
STRUCTURAL REVIEW AND
IDENTIFIED ON THE SHOP
DRAWINGS.
STARTING AT THE CENTER
MOST FASTENERS AND
WORKING OUTWARDS
TORQUE EACH FASTENER TO
80 INCH-POUNDS.
