SERIES 5600 CENTER TONGUE SUNSHADE CLIP INSTALLATION MANUAL 6/2012

EFCO CORPORATION

PART #YWSS Page 33 of 41

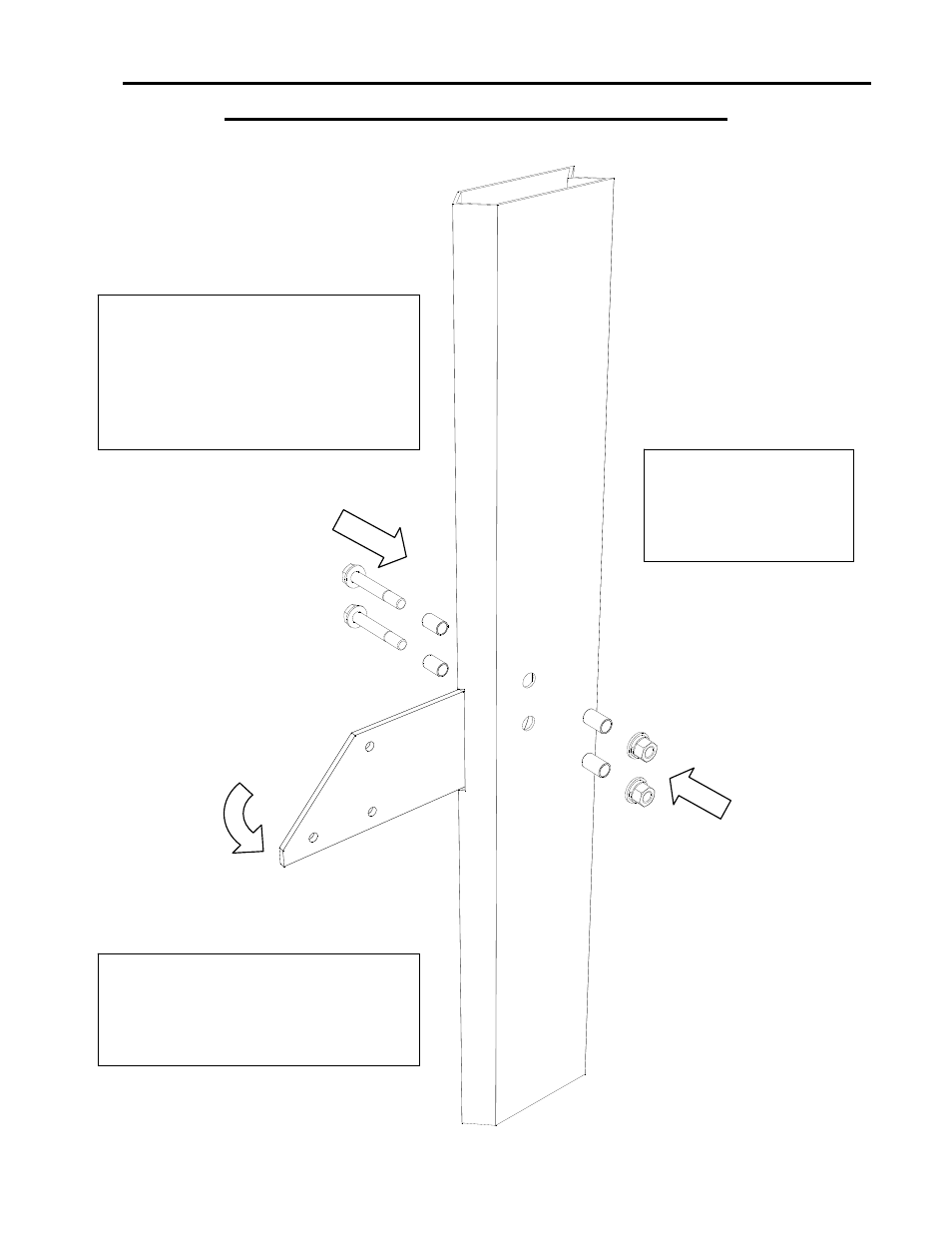

SECTION XII: SUNSHADE CLIP ATTACHMENT AT

VERTICAL 90 DEGREE MULLION

BOLT THROUGH MULLION WITH

STACK OF FLAT WASHER, ALUMINUM

SPACER BUSHING, THROUGH HOLES
IN CLIP, OPPOSITE SIDE ALUMINUM

SPACER BUSHING, FLAT WASHER,

LOCK WASHER, AND HEX NUT.

FINGER TIGHTEN ONLY!

USING A TRI-SQUARE

MAKE SURE THE CLIP

IS PERPENDICULAR TO
THE VERTEX OF THE

VERTICAL MULLION

NOTE

: THE BUSHING LENGTH WILL

VARY BY MULLION NUMBER. SEE “X”
LENGTH ON CHART “CURTAIN WALL

SUNSHADE EXTRUSIONS” IN THE

ENGINEERING REFERENCE MANUAL.
