EFCO E-Shade - Manual (Page 29)

SERIES 5600 CENTER TONGUE SUNSHADE CLIP INSTALLATION MANUAL 6/2012
EFCO CORPORATION PART #YWSS Page 29 of 41
SECTION XI: SUNSHADE CLIP ATTACHMENT AT
S.S.G VERTICAL MULLION

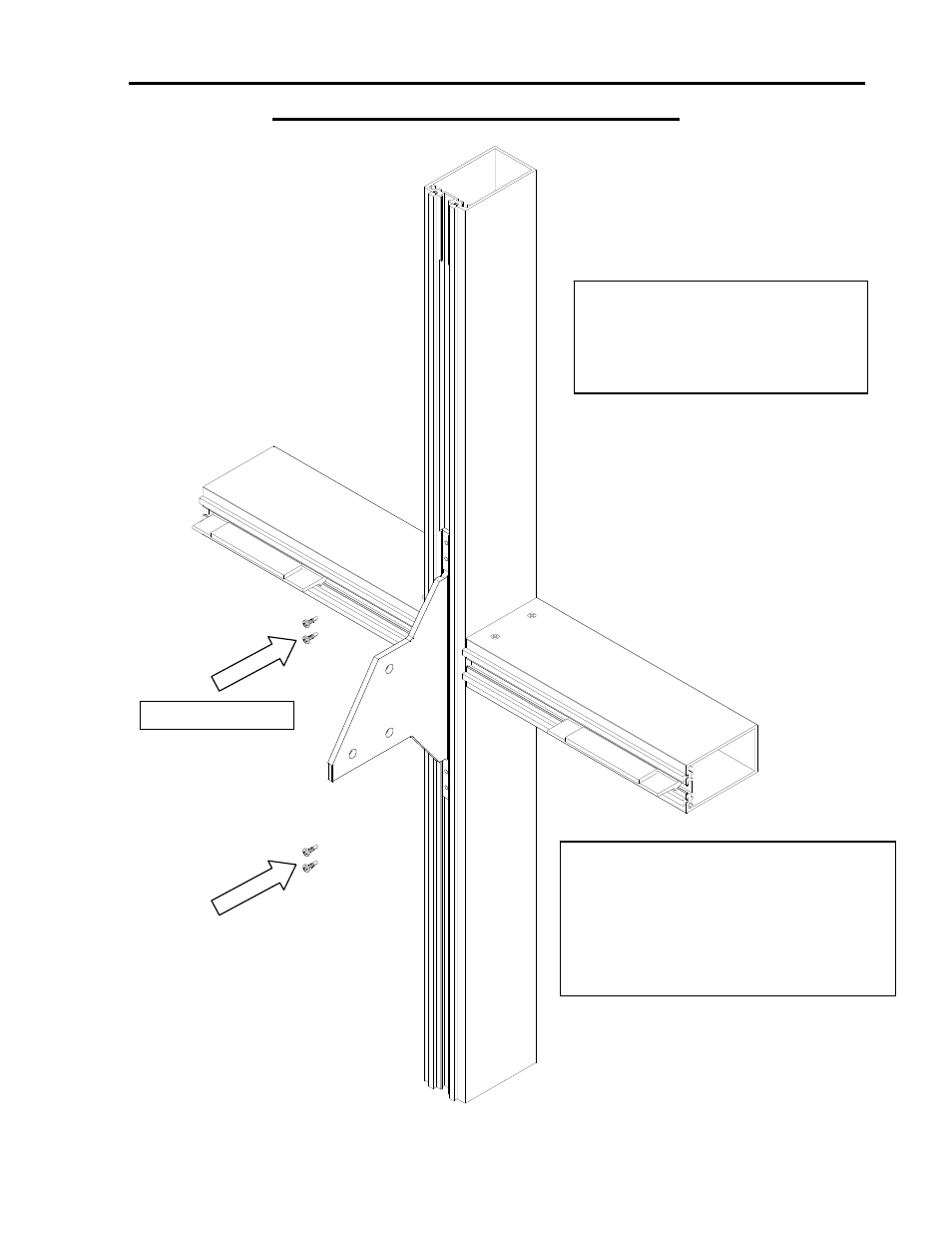

ONCE THE CLIP IS POSISTIONED,
ATTACH IT TO THE VERTICAL
MULLION WITH (4) FOUR “TEK”
SCREWS SUPPLIED WITH THE
SUNSHADE CLIP “K” PACKAGE.
“TEK” SCREWS
NOTE: CARE MUST BE TAKEN WHEN
TIGHTENING THE TEK SCREWS.
IT IS EXTREMELY CRITICAL THAT EACH
TEK SCREW BE COMPLETELY “SEATED”
WITHOUT STRIPPING OUT THE HOLE
IN THE MATERIAL OR TWISTING OFF
THE HEAD OF THE SCREW.
