Coral Industries Provincial Prestige Swing Door/ILP - 0PJ - Manual (Page 5)

0PJ 6/02

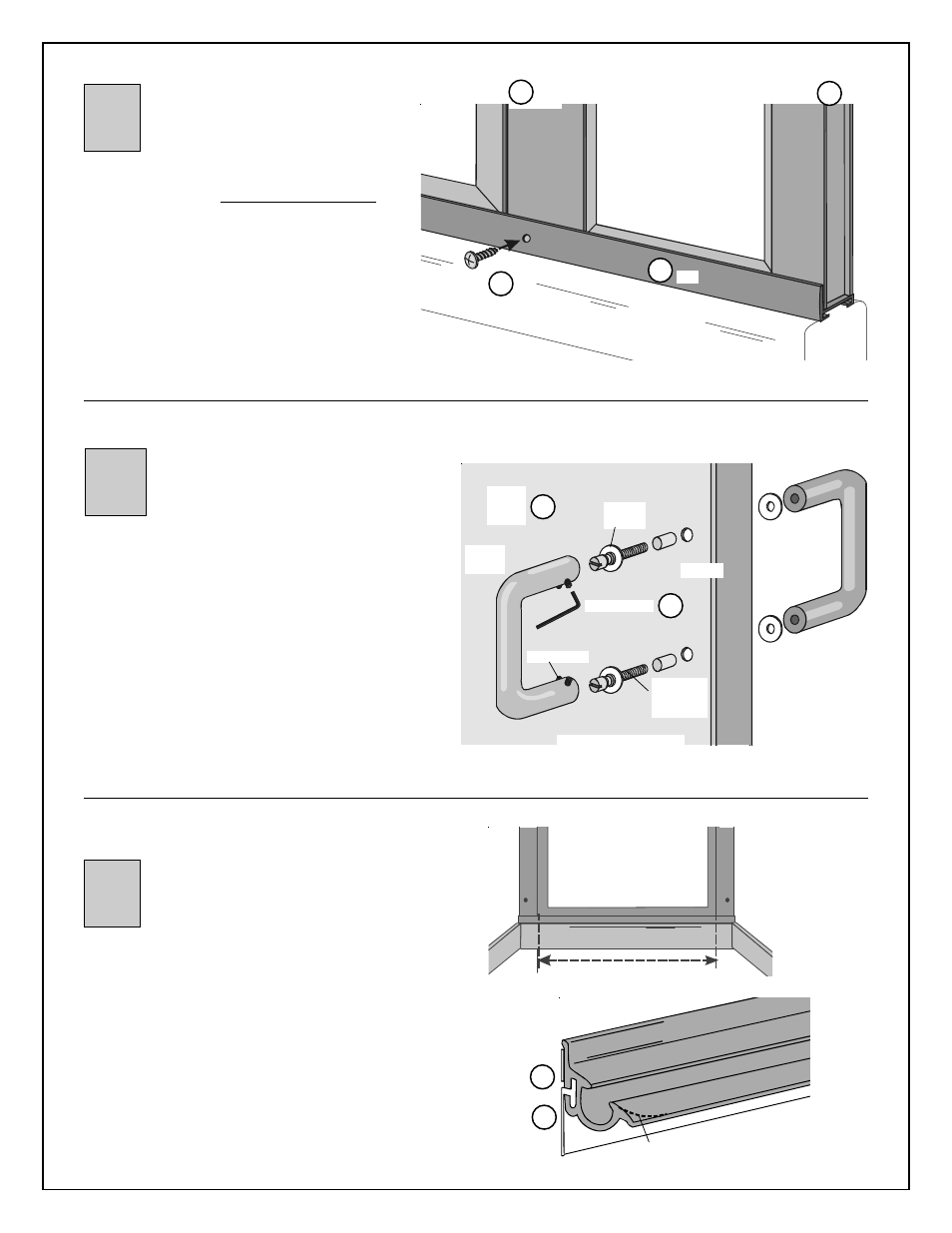

Push/Pull handle kit (L) comes with
parts assembled in the order they will be
once installed on glass. Using allen
wrench (K), loosen set screws on
interior handle and slip handle off
handle connector screws. Remove
connector screws from exterior
handle. Remove plastic washers and bushings
from connector screws.
Place bushings in holes in glass. Trim as needed so
that bushings are flush with surface of glass. Place
one plastic washer on each connector screw. From
inside shower, insert connector screws through holes
in glass. Place second plastic washer on end of each
connector screw on outside of glass. Hold exterior
handle in place on outside of glass and secure by
tightening connector screws. On inside of shower,
slip interior handle over connector screws and tighten
in place with allen wrench.
Exterior
Handle
L
Plastic
Washer
Handle
Connector
Screw
Bushing
Plastic
Washer
INSIDE OF SHOWER
Allen Screw
Allen Wrench
Interior
Handle
Pull
Handle
Kit
Secure sill dy drilling, from outside of shower,
through sill into double channel. Secure using
8A x 3/8" truss head screw (J).
9
10
OUTSIDE OF SHOWER
Double
Channel
Door
Panel
8A x 3/8 "
Truss Head Screws
B
Jamb
A
J
B
Sill
Side
Panel
K
11
From inside shower, measure width of door panel
at bottom. Drip rail (F) should be 1/2" shorter
than door width. If longer, cut to proper length.
Slide vinyl sweep (N) into slot on back of drip
rail. Trim ends even with edges of drip rail.
Smooth cut end of drip rail fin with a file to
remove sharp point.
INSIDE
OF SHOWER
Measure
Drip Rail
Sweep
N
F Drip Rail
Contour
