Coral Industries Provincial Prestige Swing Door/ILP - 0PJ - Manual (Page 3)

0PJ 6/02

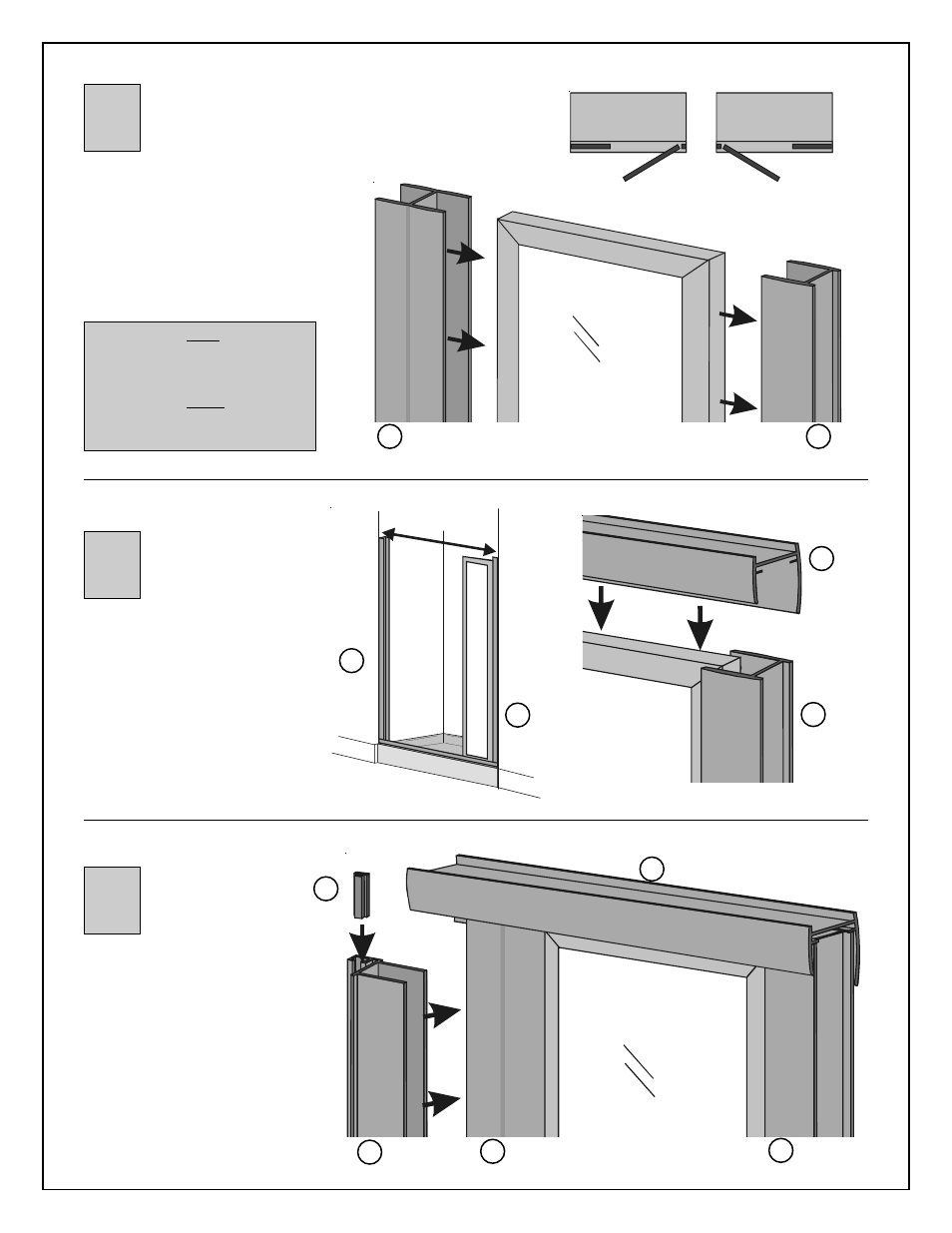

Measure from wall to wall (over
top of both jambs) and cut
header (C) to that measurement.
Position header so that long leg
is toward inside of shower. Lower
into place over jambs, side panel
and double channel.
Side Panel
Header
Door may be
installed to hinge
from either wall
jamb.
OUTSIDE OF SHOWER
4
3
INSIDE
OF
SHOWER
INSIDE
OF
SHOWER
Door Door
Double Channel D
Jamb
B
Side Panel
C
OUTSIDE OF SHOWER
Choose side on
which side panel will
be mounted. Insert
side panel into wall
jamb with bottom of
panel resting on sill.
Only position panel at this time.
Parts will be secured after door is
in place and adjustment has been
made for proper alignment.
Slide double channel (D) over
side panel.
On units with clear, painted
glass, the painted surface of
glass faces outside of
shower.
On units with tinted, painted
glass, the painted surface of
glass faces inside of surface.
Long leg of header is
toward inside of shower
B
Jamb
B
Jamb
B
Jamb
Measure
Slide magnetic strip (G) into slot
on magnetic door stop (E). Trim
ends even with door stop using
scissors.
Slide magnetic door stop into
double channel with magnetic strip
facing outside of shower.
5
OUTSIDE OF SHOWER
Jamb B
Header C
Double
Channel
D Magnetic
Door Stop
E
G
Magnetic
Strip
Side Panel
