Adjust door, side panel, double channel, and
door stops so that magnetic strip properly aligns
on door panel and door closes evenly at top and
bottom.
Once desired alignment of parts has been
achieved, from inside of shower, drill four
evenly spaced holes through leg of jambs
(1/4" from edge) into side panel and hinge door
stop. Secure using 8A x 3/8" truss head
screws (J).
Secure double channel by drilling, from inside of
shower, four evenly spaced holes (1/4" from
edge) through double channel into side panel
and magnetic door stop. Secure using
8A x 3/8" truss head screws (J).
Double
Channel
INSIDE OF SHOWER
Door
Panel
8A x 3/8 "
Truss Head Screws
1/4"
When securing jamb and double channel to side panel, do not drill through front side of panel or
hit glass with drill bit. (Glass is seated approximately 1/2" into channel.)
Position hinge door stop, which is attached to
door panel, into wall jamb on opposite side from
magnetic door stop. For safety purposes, door
should be installed to open out from shower.
Hinge Door Stop
(attached to door)
OUTSIDE OF SHOWER
Jamb B
If magnetic strips do not
seal tightly, reverse polarity
by removing strip from
door stop and replacing it
with the previous top end
as the bottom end.
Door Panel

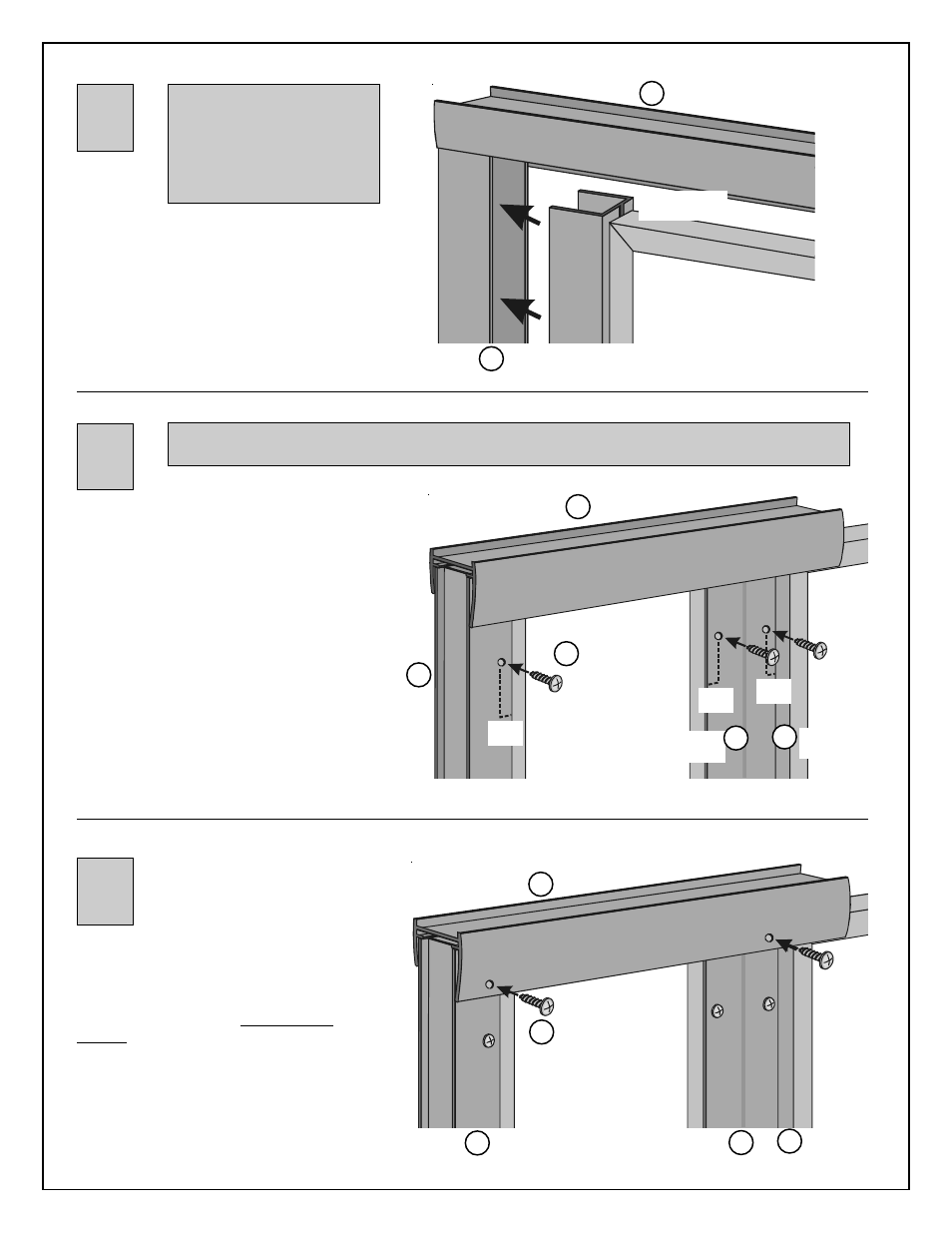

Secure header by drilling, from inside of
shower, through header into jambs and double
channel. Secure using 8A x 3/8" truss head
screw (J).
8
Header C
B C Magnetic
Door Stop
1/4"
1/4"
Jamb
B
Header C
J
Double
Channel
Door
Panel
8A x 3/8 "
Truss Head Screws
B C
Magnetic
Door Stop
Jamb
Header C
J
INSIDE OF SHOWER
B
Side Panel
