Coral Industries Provincial Prestige Swing Door/DPNL - 5PJ - Manual (Page 4)

5PJ 8/02
Position hinge door stop, which is attached to
door panel, into double channel on opposite
side from magnetic door stop. For safety
purposes, door should be installed to open
out from shower.
Hinge Door Stop
(attached to door)
If magnetic strips do not
seal tightly, reverse
polarity by removing strip
from door stop and
replacing it with the
previous top end as the
bottom end.
Door
Panel

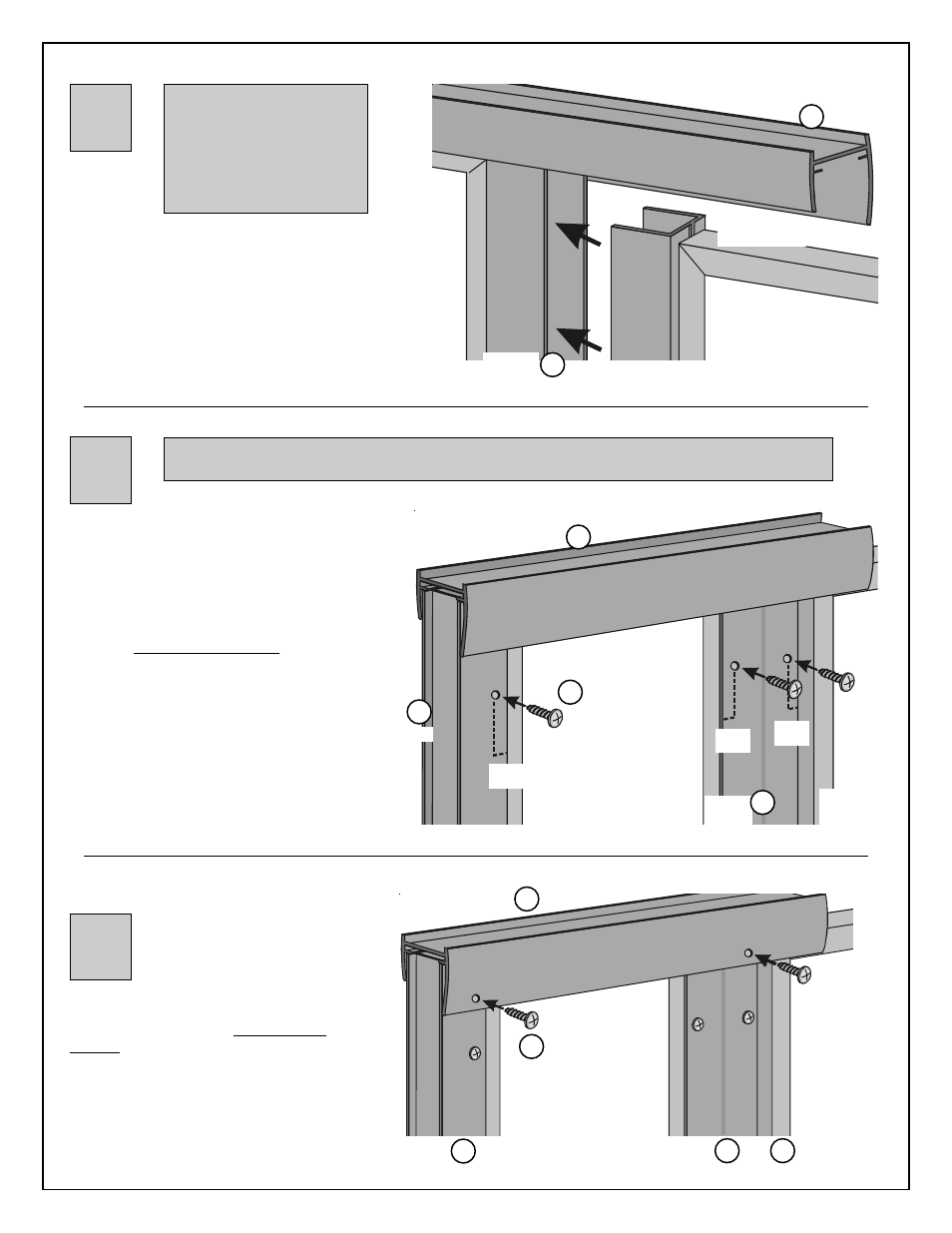

Secure header by drilling, from inside of
shower, through header into jambs and
double channels. Secure using 8A x 3/8"
truss head screw.
Header C
Double
Channel
Door
Panel
8A x 3/8 "
Truss Head Screws
D E
Magnetic
Door Stop
Jamb
Header
C
J
INSIDE OF SHOWER
B
OUTSIDE OF SHOWER
Side
Panel
Adjust side panels, double channels, and
magnetic and hinge door stops so that
magnetic strip properly aligns on door panel
and door closes evenly at top and bottom.
Once desired alignment of parts has been
achieved, from inside of shower, drill four
evenly spaced holes through leg of jambs (1/4"
from edge) into side panels. Secure using
8A x 3/8" truss head screws (J).
Secure double channels to side panels and
hinge and magnetic door stops in same
manner, by drilling, from inside of shower, four
evenly spaced holes 1/4" from edges of double
channels into side panels and door stops.
Secure using 8A x 3/8" truss head screws.
Double
Channel INSIDE OF SHOWER
1/4"
D Hinge or
Magnetic
Door Stop
1/4"
Door
Panel
8A x 3/8 "
Truss Head Screws
When securing double channels and jambs to side panels, do not drill through front side of panel or
hit glass with drill bit. (Glass is seated approximately 1/2" into channel.)
1/4" Jamb
B
Header
J
Double
Channel
D
C
8
6
7
