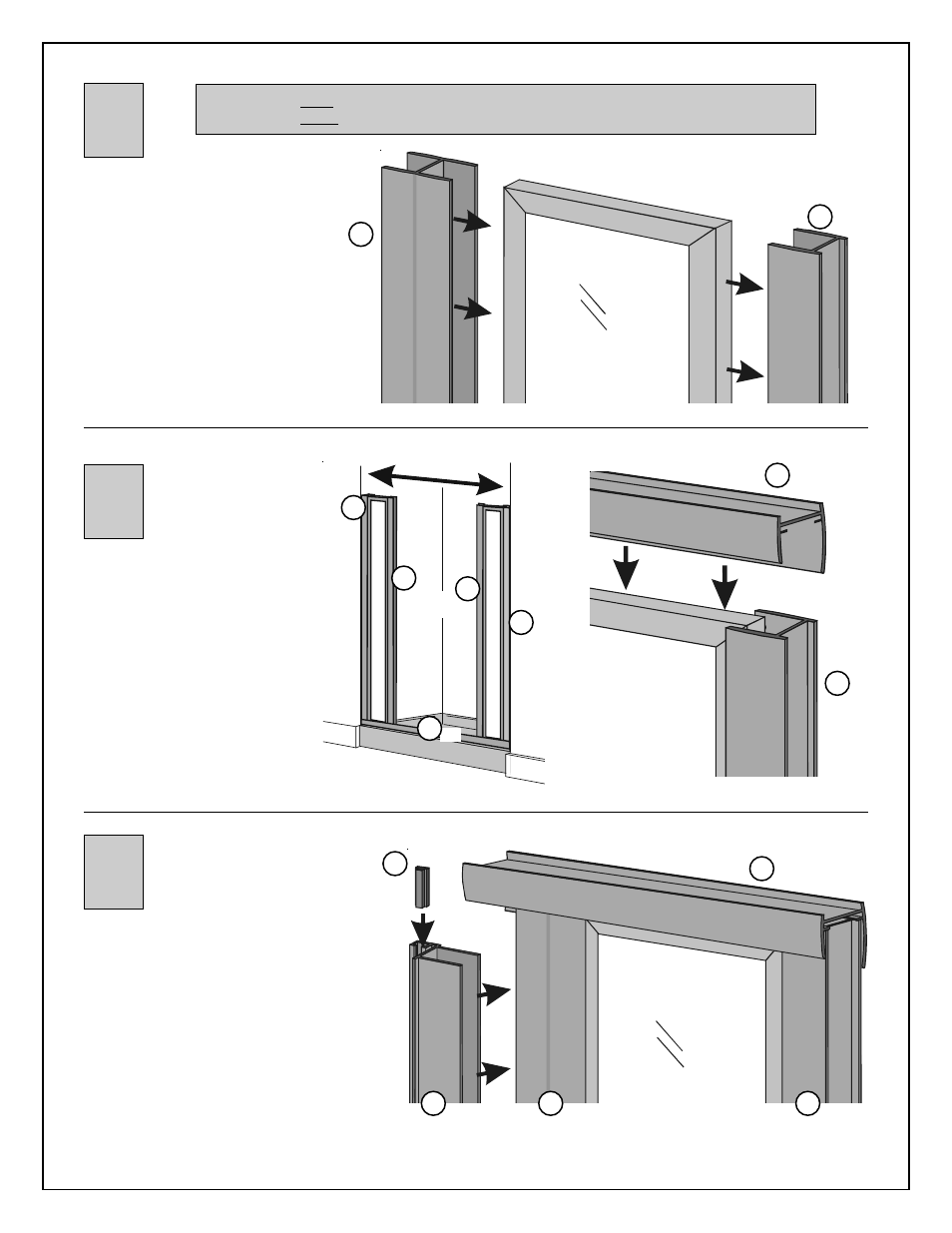

Measure from wall to wall (over
top of both jambs) and cut header
(C) to that measurement.
Position header so that long leg is
toward inside of shower. Lower
into place over jambs, side panels
and double channels.
Side Panel
Header
OUTSIDE OF
SHOWER
4
3
Insert side panels into wall jambs
with bottom of each panel resting
on sill. Only position panels at
this time. Parts will be drilled and
secured after door is in place and
adjustment have been made for
proper alignment of parts.
Slide double channels (D) over
side panels.
Double
Channel
D
Jamb B
Side Panel
C
OUTSIDE OF SHOWER
On units with clear, painted glass, the painted surface of glass faces outside of shower.
On units with tinted, painted glass, the painted surface of glass faces inside of surface.
Double
Channel
D
B
Jamb
Jamb
B
Jamb
B
Sill
A
Measure
OUTSIDE OF SHOWER
Long leg
of header
faces
inside of
shower.
5
G
Magnetic
Strip
OUTSIDE OF SHOWER
Jamb
B
Header C
D
Magnetic
Door Stop
E
Slide magnetic strip (G) into slot
on magnetic door stop (E). Trim
ends even with door stop using
scissors.
Choose which will be the opening
side of your door. Door is normally
installed to open on the side of unit
nearest to showerhead. Slide
magnetic door stop onto panel on
opening side of door. Make certain
that the magnetic strip faces
outside of shower.
Double
Channel
D
