5PJ 8/02
Due to the manufacturing
process, there may be rack
marks present at one end of
your sill and header. All sills
and headers must be trimmed
to fit individual openings. When
cutting sill and header, make
certain to trim off end with rack
marks.
Before starting installation of your new enclosure, carefully read all
instructions and lay out parts to become familiar with their identity.
Do not try to cut the mirrors or glass used in this enclosure. • Tempered glass and mirrors will disintegrate if cut.
CLEANING
Cleaning and care of your enclosure is important to its lasting beauty. We suggest using a nonabrasive liquid cleaner.
Never use scouring powder or pads.
SEALING
The use of a caulking compound can assure a watertight seal when applied along outside edge of the enclosure where metal and bath meet. If
desired, caulk inside of enclosure where jambs meet walls.
Anchors are furnished with every enclosure. However, the use of anchors is not recommended when attaching your enclosure to a fiberglass
unit or wall surrounds with board reinforced mounting areas. Mounting holes in this case should be drilled with a 1/8" drill bit.
Mounting of this unit on tile requires the use of anchors. Special care must be taken not to crack the tile. Before drilling holes in the tile, lightly
chip glazed surface of tile at the desired locations. Drill holes using a 3/16" masonry drill bit. Insert anchors into the holes making certain
that ring on large end of anchor meets the surface of the tile.
USE OF ANCHORS
INSTALLATION INSTRUCTIONS

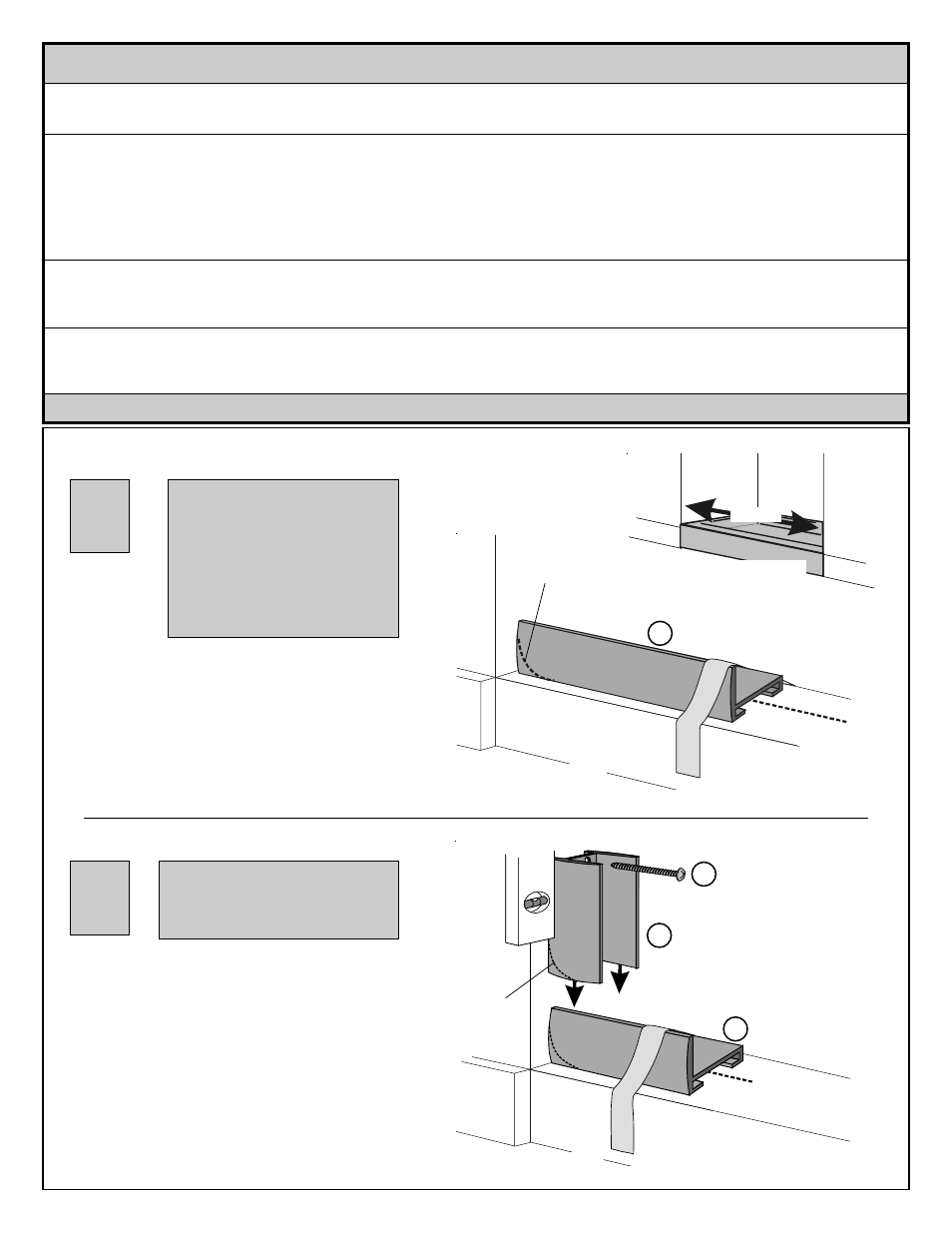

Measure opening at threshold of shower and cut
sill (A) to that measurement. If necessary, file
sharp corners of sill to fit contour of your unit.
Position sill on center of threshold with tall edge of
sill toward outside of shower. Tape sill to threshold
with masking tape to hold in place while positioning
jambs.
Threshold
Centerline
Masking
Tape
Sill A
File sharp corners of
sill as necessary to fit
contour of your unit
OUTSIDE OF SHOWER
Place jamb (B) on sill with short legs against wall.
If necessary, file sharp corners on back of jamb to
fit contour of your unit.
Align jamb vertically using a level and mark wall
through prepunched holes. Remove jamb and drill
where marked using 1/8" drill bit. Repeat for
remaining jamb on opposite side.
Reposition jambs on wall and secure using
8A x 1" pan head screws (I).
1
2
When anchors (H) are used,
holes should be drilled using
3/16" drill bit. (Use masonry
bit for tile.)
Measure
OUTSIDE OF SHOWER
Level
Sill
A
Centerline
Contour as
needed
Jamb
B
8A x 1"
Pan Head
Screw
I
OUTSIDE OF SHOWER
