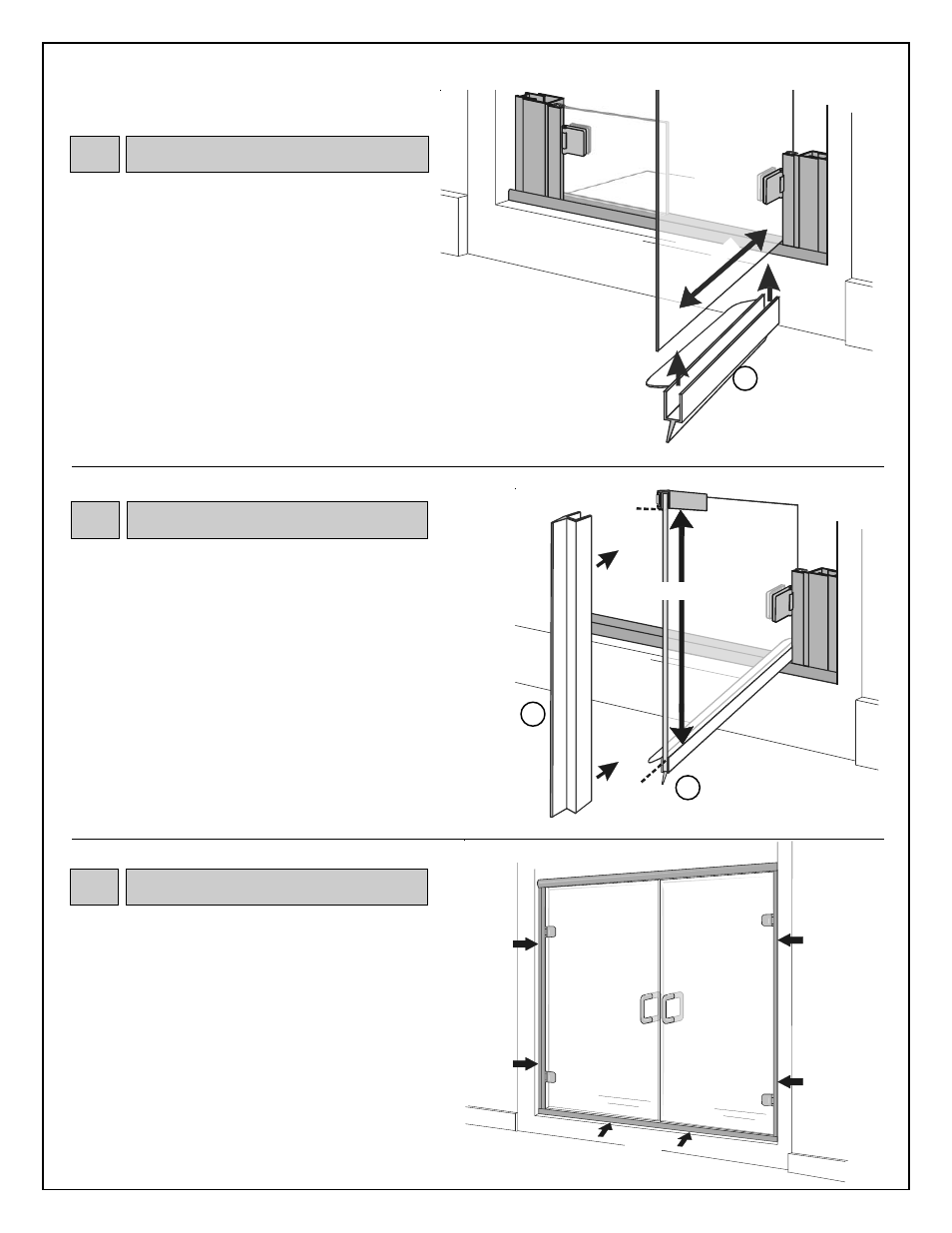

Measure width of door glass at bottom and cut vinyl drip
sweep (F) to that measurement. Cut only from hinge
end of drip sweep. Smooth cut end of sweep fin to
remove sharp point.
Press drip sweep onto bottom edge of glass with drip
sweep fin facing inside of shower. Edges of drip sweep
should be flush with edges of glass.
F Vinyl Drip
Sweep Fin faces inside
of shower.
OUTSIDE OF
SHOWER
Seal unit by caulking along outside of enclosure where
metal and bath meet, especially where sill meets
threshold.
If desired, caulk inside of enclosure where jambs meet
walls.
12 Vinyl Drip Sweep
(F)
14 Caulking
Included in your unit is a vinyl H-seal that fits over the
edge of glass and serves as a splash guard between
panels when door is closed. Use of the splash guard is
optional.
If you choose to use the splash guard, determine the
primary panel (first opening), and the secondary panel
(second opening). Primary panel is normally the panel
closest to the showerhead.
The H-seal will be installed on the secondary panel.
Measure distance on panel between magnetic stop and
drip sweep. Cut H-seal to that measurement and slide
over panel edge.
13 Splash Guard
(W)
(Use of Splash
Guard is optional)
F Vinyl Drip
Sweep
W H-Seal
Splash Guard
OUTSIDE OF
SHOWER
Measure
OUTSIDE OF SHOWER
Caulk
Caulk
Measure
