6X0-GP 7/06

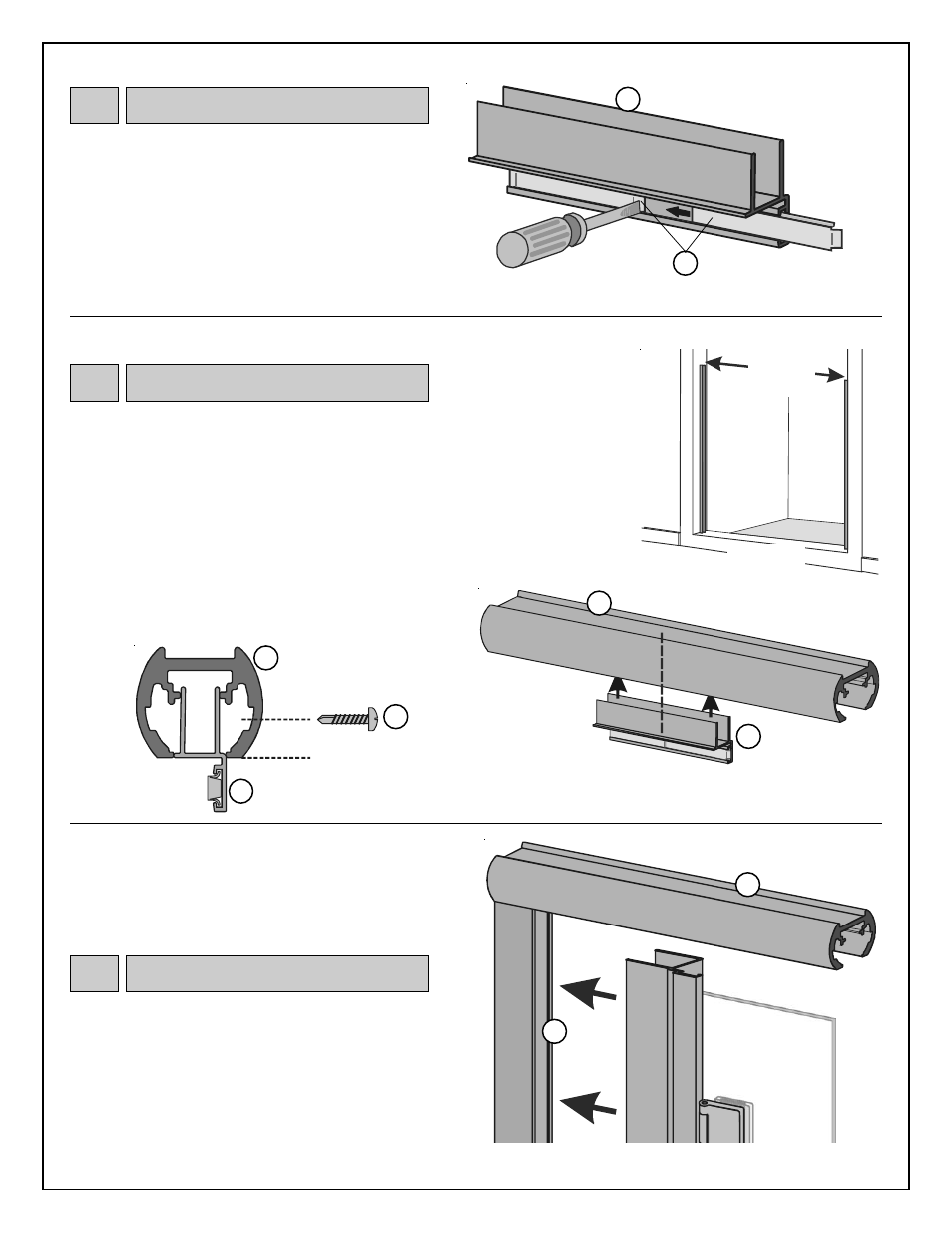

7 Magnetic Stop
(E)
Slide strike plates (from Step 6) into slot of magnetic
stop (E).
Once strike plates are in position, press flaps at each
end of strike plate with flat screwdriver to secure
placement in slot.
E Magnetic Stop
M Strike Plates
from Magnetic Catch Kit
8 Header
(C)
/ Magnetic Stop
(E)
Measure from wall to wall over top of both jambs and cut
header (C) to that measurement.
Locate center of header. Position magnetic stop in header
with center of stop aligned with center of header. Drill, from
inside of shower, two evenly spaced holes through header
into magnetic stop. Vertical position for holes should be 3/
8" up from bottom edge of header. Secure using 8A x 5/8"
self-drilling pan head screws (J).
Position header over jambs so that long leg of magnetic
stop is toward inside of shower. Lower header into place.
9 Door Panels / Hinge Rails
Position one door panel on unit. Hinge rail (attached to
door panel) should rest on sill at bottom of unit and fit
over wall jamb on the side. Panel will need to be held in
place until header insert is installed.
OUTSIDE OF SHOWER
Magnetic Stop
C
Header
J
8A x 5/8" Self-
Drilling Pan
Head Screw
Measure
over top of
jambs
OUTSIDE OF
SHOWER
Long leg to
inside of shower
C
Header
B Jamb
Door Panel with
Hinge Rail attached
Screwdriver
3/8"
Magnetic
Stop E
Header C
Strike Plate
INSIDE OF
SHOWER
Position
in center
of header
E
