6X0-GP 7/06

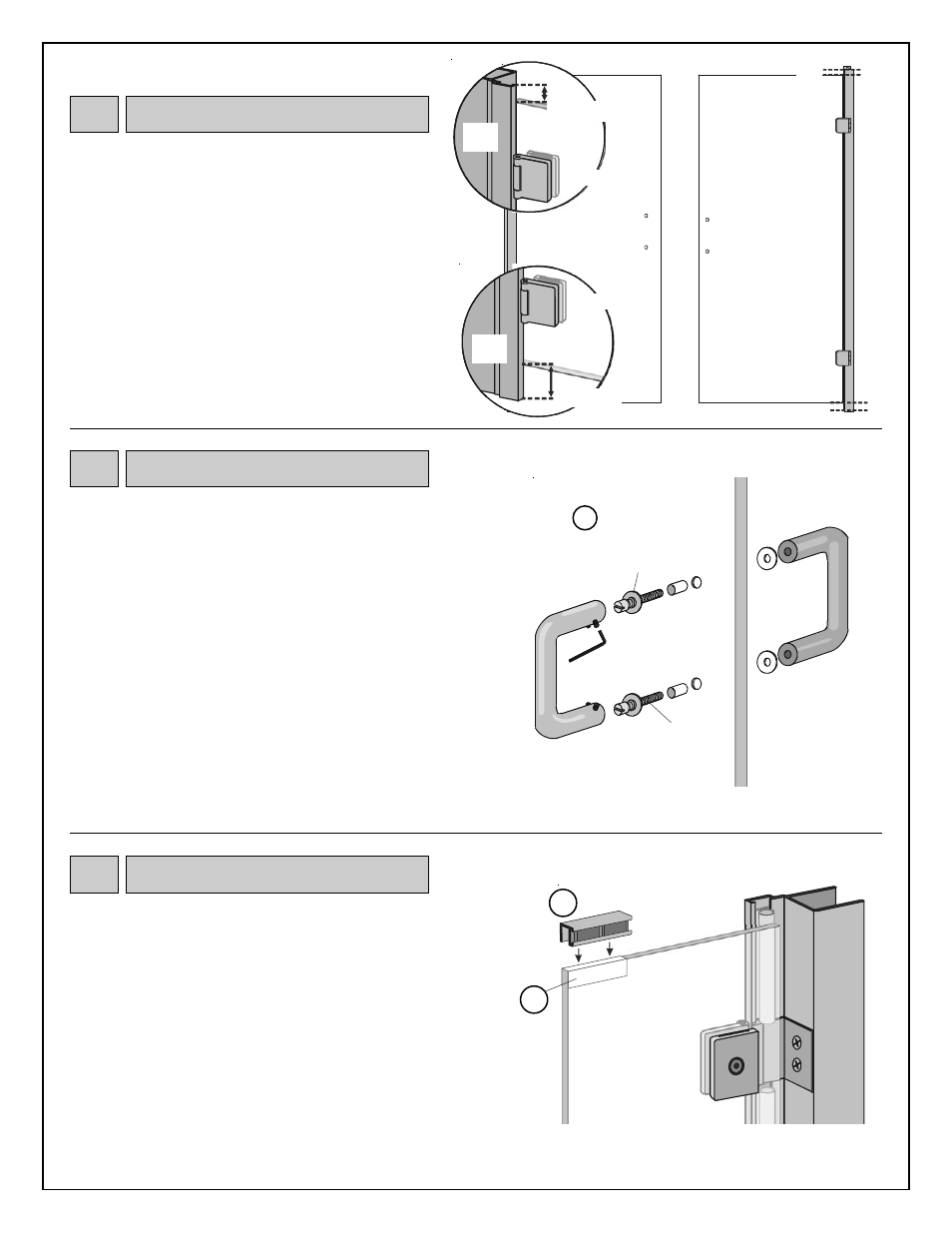

Door panels are handed and must be installed
accordingly. Determine right and left panels by
positioning them (on work table or against wall) as they
will be once installed. Glass should swing out from
shower.
Examine hinge rails attached to glass. At top of panel,
hinge rail should extend 1/4" above edge of glass; at
bottom of panel, hinge rail should extend 1/2" below
edge of glass.
Swap and flip panels as needed for correct positioning.
Vinyl door seal (V) is pre-installed loosely at top and
bottom of hinge rail. Verify all seals are in place before
installing door panels.
4 Door Panel Orientation
5 Handles
(I)
Handles will be mounted on glass before hanging door
panels.
Push / Pull handle kit (I) comes with parts assembled in the
order they will be once installed on glass. Disassemble parts.
Place bushings in holes in glass. Trim as needed so that
bushings are flush with surface of glass. Place one plastic
washer on each connector screw and insert screws (from
inside surface of glass) through bushings in glass.
Place second plastic washer on exposed end of connector
screws on outside surface of glass. Holding exterior handle
in place on outside surface of glass, tighten connector screw
to secure handle.
On inside surface of glass, slip interior handle over connector
screws and tighten with 3/32" allen wrench. Repeat for
remaining handle.
6 Magnetic Closure
(M)
Magnetic closure will be mounted on glass before hanging
door panels. Remove strike plates from magnets for use
in Step 7.
At top "opening" corner of each glass panel, wrap vinyl over
glass, positioning so that edge of vinyl is flush with side
edge of glass.
Place magnetic closure over vinyl, making certain that
magnet faces inside of shower and edge of closure is flush
with edge of glass. Fit of closure on glass is a pressure fit
application and may require the use of a rubber hammer
or leather mallet. Avoid hard surface tools which may
damage surface of closure or shatter glass. Carefully tap
closure into place over vinyl, until inside top of closure gently
touches vinyl.
Exterior
Handle
Plastic
Washer
Handle
Connector
Screw
Bushing
Plastic
Washer
INSIDE OF SHOWER
3/32 Allen
Wrench
Interior
Handle
Push/Pull Handle Kit
Vinyl
Magnetic Closure
(magnet faces
inside of shower)
1/2"
below glass
1/4"
above glass
I
Hinge
Hinge
Rail
Hinge
Rail
Hinge
M
M
Hinge
Rail
Hinge
1/4"
1/2"
