Coral Industries 1000 Pivot Door - 713C - Manual (Page 7)

713C-GP 8/06
D
Trim to remove
sharp edge
Drip Rail

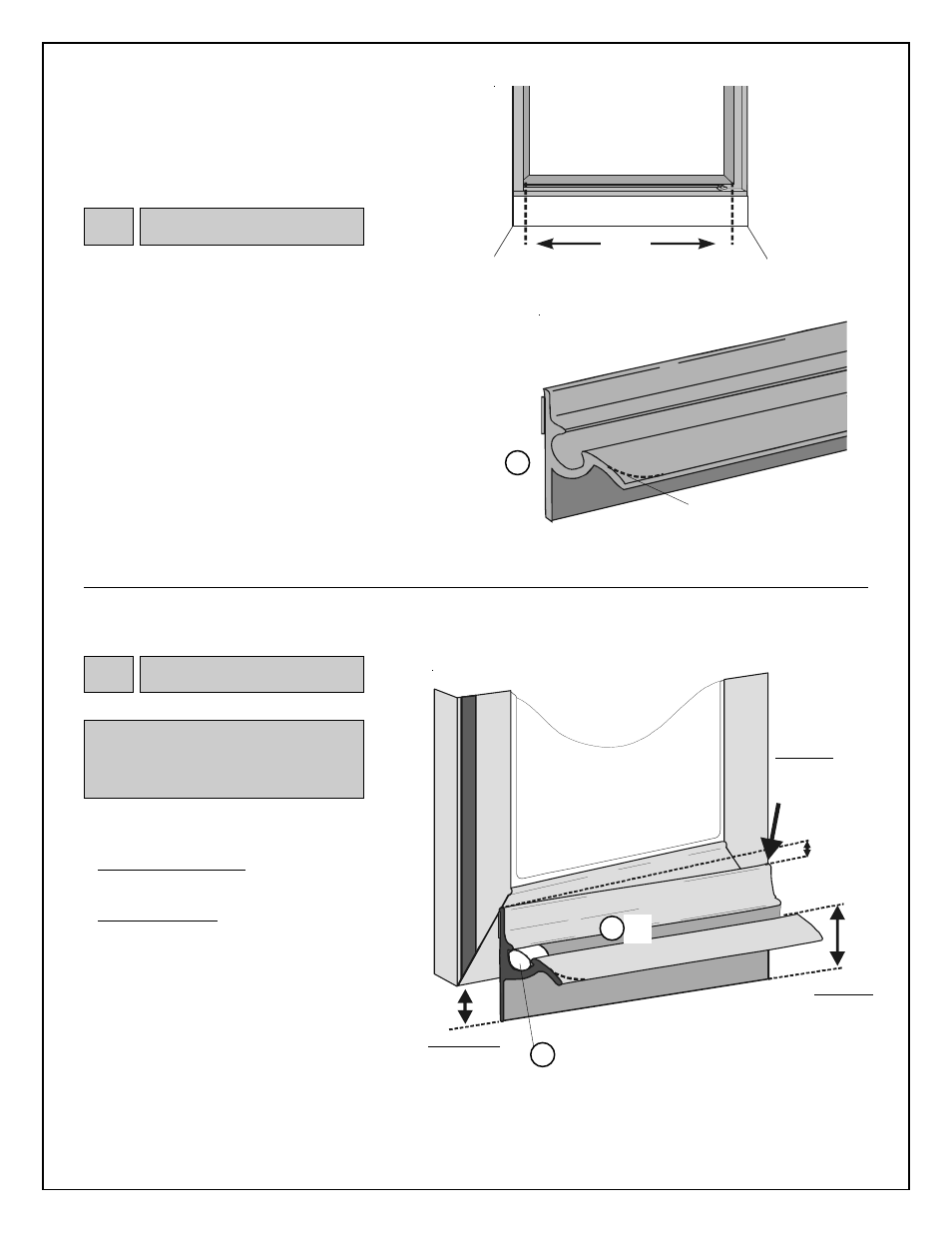

From inside shower, measure width of door
panel at bottom. Drip rail (D) should be 1/2"
shorter than door panel width. If longer, cut
to proper length.
Contour cut end of drip cap fin to remove
sharp point.
9a Drip Rail
(D)
Clean bottom channel of door before
mounting drip rail. After mounting, do
not remove or reposition. Allow 72
hours curing time for maximum bond.
Position drip rail on inside surface of closed
door panel as described below:
• Side-to-side placement: Edge of drip rail
should be flush with edge of door panel on
pivot side of door.
• Vertical placement: Bottom of drip rail
should extend 1/2" below bottom of door
panel on opening side. Angle drip rail so
that sweep extends 3/4" below bottom of
door panel on pivot side. This will create
an 1/4" slope from opening to hinge side for
water drainage.
Mark position. Remove drip rail from door.
Peel protective cover from drip rail tape (E),
and press into place. Insert drip rail plug (I)
into groove of drip rail on opening side of
door.
9b Drip Rail
(D)
Measure
(Width of Door - 1/2" = Length of Drip Rail)
INSIDE OF SHOWER
I
D
Drip
Rail
INSIDE OF SHOWER
Drip Rail Plug
1/2"
1/4" drop from
Opening Side
to Hinge Side
for drainage
Door
Panel
Opening Side
Hinge Side
Drip rail flush
with edge of
Door Panel
3/4"
Hinge Side
