Install door, Pull handle kit – Coral Industries 1000 Pivot Door - 713C User Manual
Page 6
713C-GP 8/06

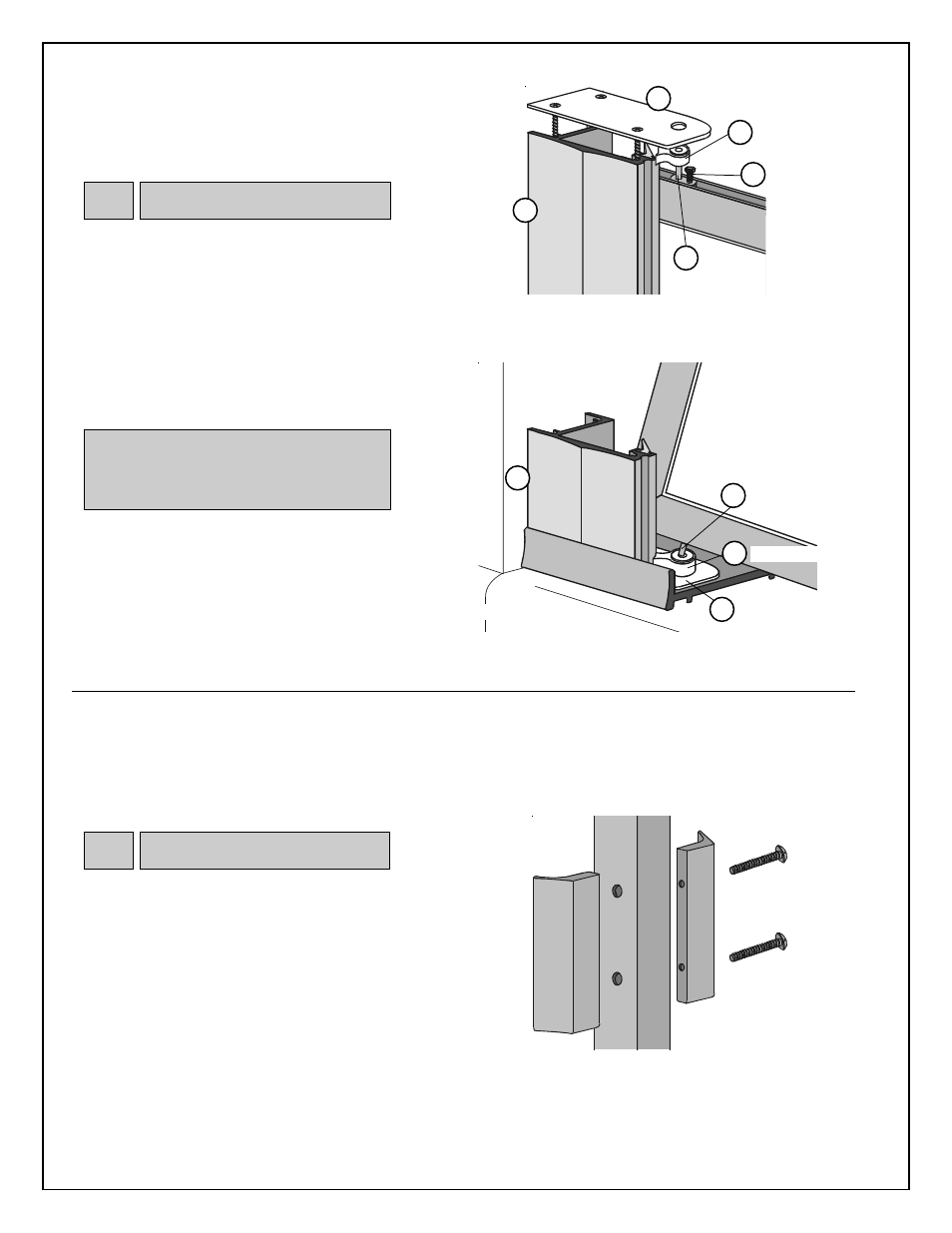

Set door in place by positioning bottom pivot pin
(K) in pivot bushing (L) of bottom pivot plate (G).
Lift top pivot plate and insert top pivot pin into
bushing. Tighten top flat head screws to hold
door in place.
Adjust door for any out of plumb conditions, then
tighten hex head screw in top slide block using
hex head wrench.
If magnetic strips do not seal tightly,
reverse polarity by removing strip from
door stop and replacing the previous top
end to the bottom end.
Pivot Pin
Pivot Plate
L
OUTSIDE OF SHOWER
Pivot Bushing
K
G
Door Panel
Pivot Pin
Pivot Plate
L
Pivot Bushing
K
G
Door Panel
8-32 x 1/2"
Hex Head Screw
M
Pivot
Jamb
B
Pivot
Jamb
B
7
Install Door
6-32 x 1 1/4" Pan
Head Screw
OUTSIDE OF SHOWER
Exterior
Handle
Interior
Handle
The handle for your door may have been pre-
installed. If so, disregard this step and continue
installation.
Mount interior and exterior pull handles from
pull handle kit (O) onto door panel using
6-32 x 1 1/4" pan head screws.
8
Pull Handle Kit
(O)
