Coral Industries 1000 Pivot Door - 713C - Manual (Page 5)

713C-GP 8/06
Pivot
Bushing
Pivot
Plate
Pivot
Jamb
B
L
G

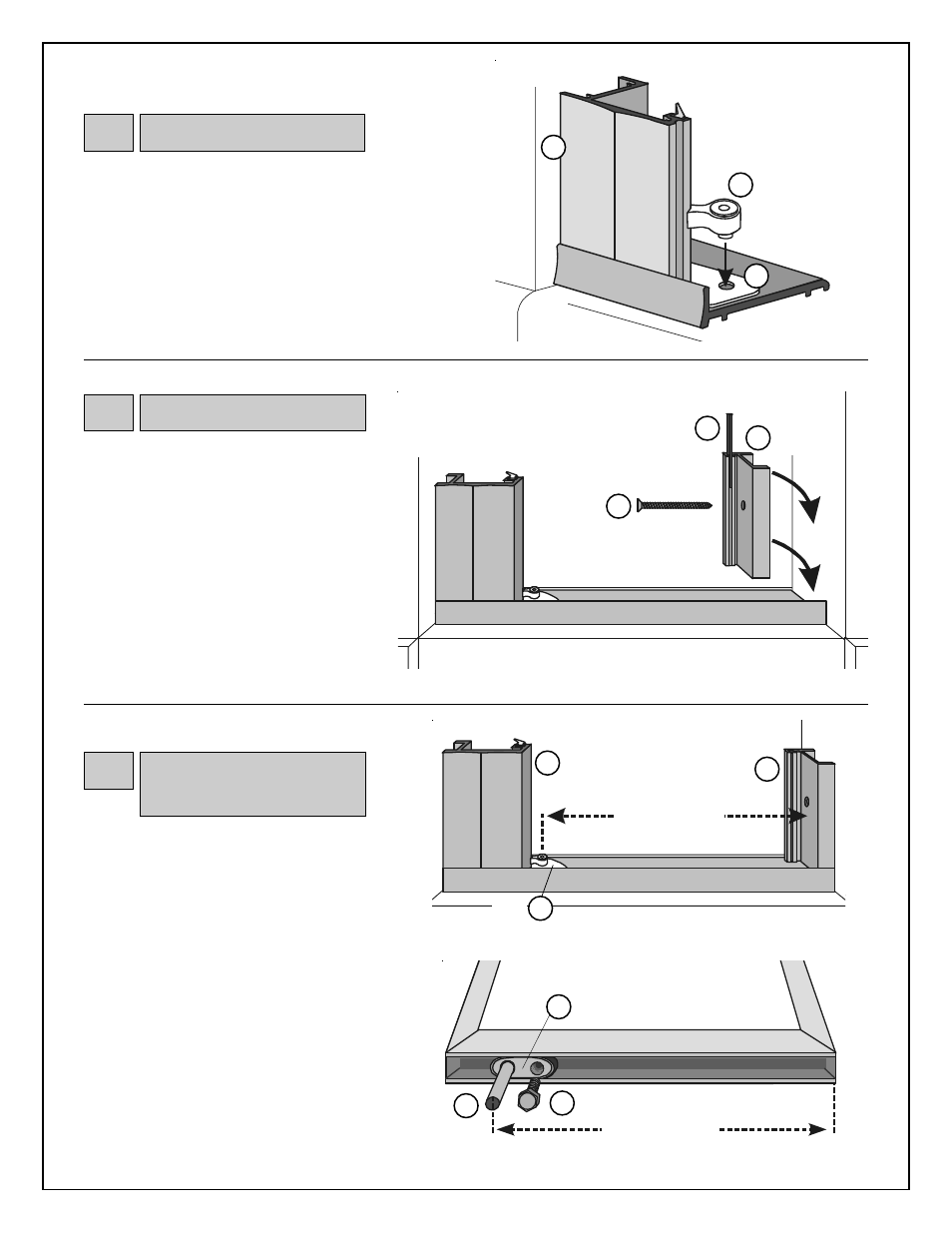

Insert pivot bushing (L) into bottom pivot
plate by placing round portion partially in
hole and straddling pivot jamb with "Y" end
of bushing. Push the"Y" end of bushing
downward until it snaps into place.
4 Pivot Bushing
(L)
Slide magnetic strip (H) into slot of strike
jamb (C). Trim ends even with strike jamb
using scissors.
Position strike jamb firmly on sill against
wall opposite pivot jamb (magnetic strip
facing out from shower). Use level to
properly align jamb. Mark wall through pre-
punched holes. Remove jamb and drill
mounting holes using 1/8" drill bit.
Reposition strike jamb on wall and secure
using 8A x 2" flat head screws (F).
(Dimension A - 1/6" = Dimension B)
Measure distance from center of hole in
bottom pivot plate to flat surface of strike
jamb (Dimension A). Deduct 1/16" from this
measurement and position slide block (J)
in bottom door channel so that the center of
pivot pin (K) is that exact measurement
(Dimension B) from edge of door. Insert
8-32 x 1/2" hex head screw (M) into
threaded hole in slide block and tighten with
hex head wrench.
Using that measurement, position top slide
block and hand-tighten hex head screw for
adjustment later.
C
H
8A x 2"
Flat Head
Screw
Magnetic Strip
Pivot
Jamb
OUTSIDE OF SHOWER
Strike
Jamb
Dimension A
F
Strike
Jamb
C
B
G
Dimension B
(Dimension A - 1/6" = Dimension B)
Pivot Pin K
J
Slide Block
8-32 x 1/2" Hex
Head Screw
M
Pivot
Plate
5 Strike Jamb
(C)
6 Slide Block
(J)
/ Pivot Pin
(K)
