713C-GP 8/06

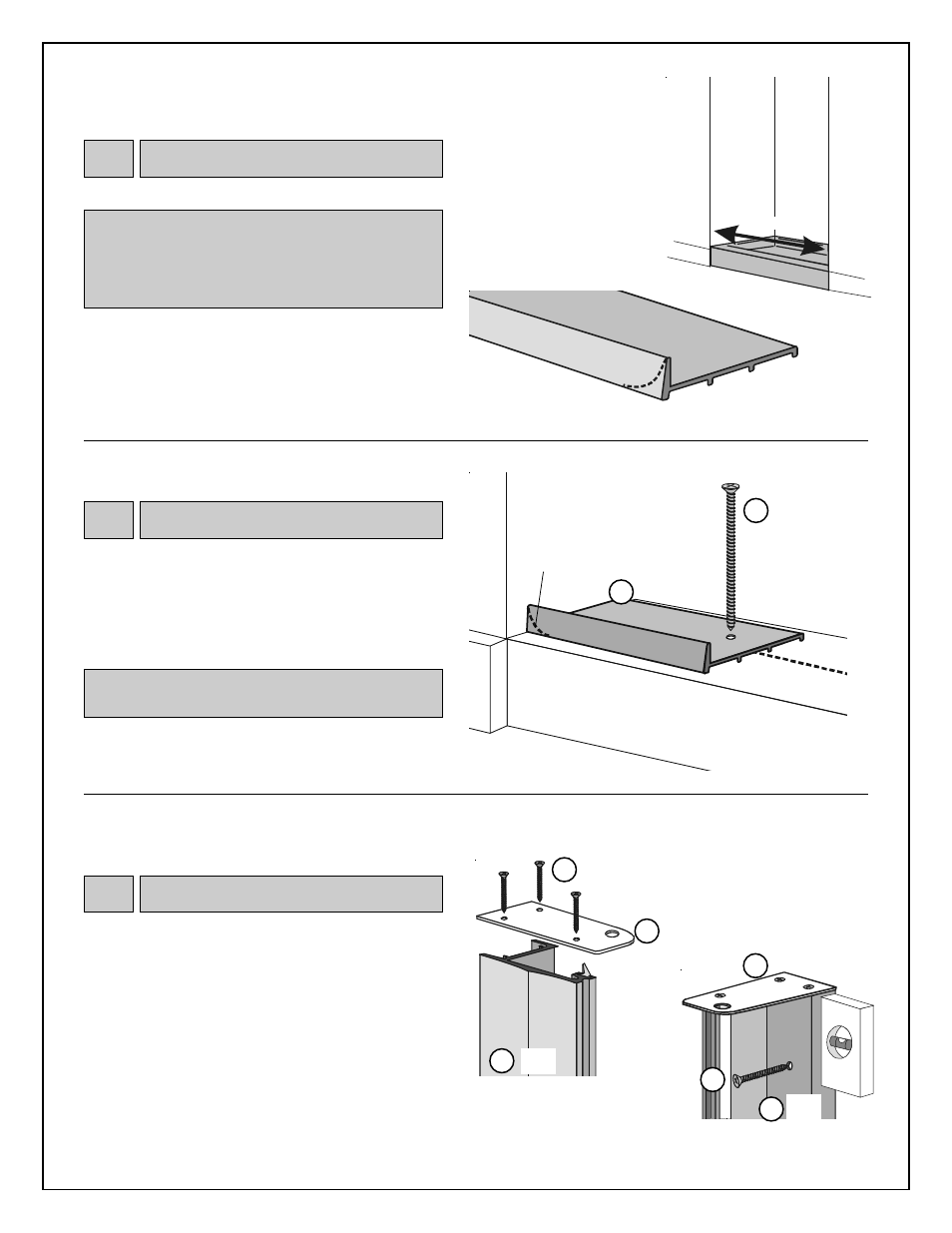

Measure opening at threshold of shower and cut sill (A) to
exact measurement. If necessary file sharp edges to fit
contour of your unit.
Determine if door will hinge from right or left. This will
determine top and bottom of pivot jamb (B). Tighten
8A x 1 1/4" flat head screws (S) firmly on bottom pivot
plate (G) located in pivot jamb. On top plate, tighten,
then loosen screws.
Position pivot jamb on sill (or threshold if sill is not
used) and align vertically on wall using level. Mark hole
locations and remove jamb. Drill holes where marked
using 1/8" drill bit. Reposition jamb on wall and secure
using 8A x 2" flat head screws (F).
Sill
File to fit
contour of
unit if
needed
INSIDE OF SHOWER
OUTSIDE OF SHOWER
Pivot
Plate
8A x 1 1/4"
Flat Head
Screw
8A x 2"
Flat
Head
Screw
F
Measure
A
Centerline
S
Pivot
Jamb
G
Pivot
Jamb
Pivot
Plate
G
1 Sill
(A)
3 Pivot Jamb
(B)
/ Pivot Plate
(G)
When anchors (P) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile)
Due to the manufacturing process, there may be rack
marks present at one end of your sill and header. Sill
and header must be trimmed to fit your individual
opening. When cutting sill and header, make certain
to trim off end with rack marks.
B
B
Position sill on center of threshold (tall edge of sill toward
outside of shower) and mark where mounting holes are to
be drilled. Remove sill and drill holes using 1/8" drill bit.
Reposition sill on threshold and secure using 8A x 1 1/4"
flat head screws (Q).
2 Sill
(A)
8A x 1 1/4"
Flat Head
Screw
Q
