Ga b, Caulk – Coral Industries 6000 Pivot Door with Adjustable Jambs - 763R User Manual
Page 8
763R / 713R -GP 4/06

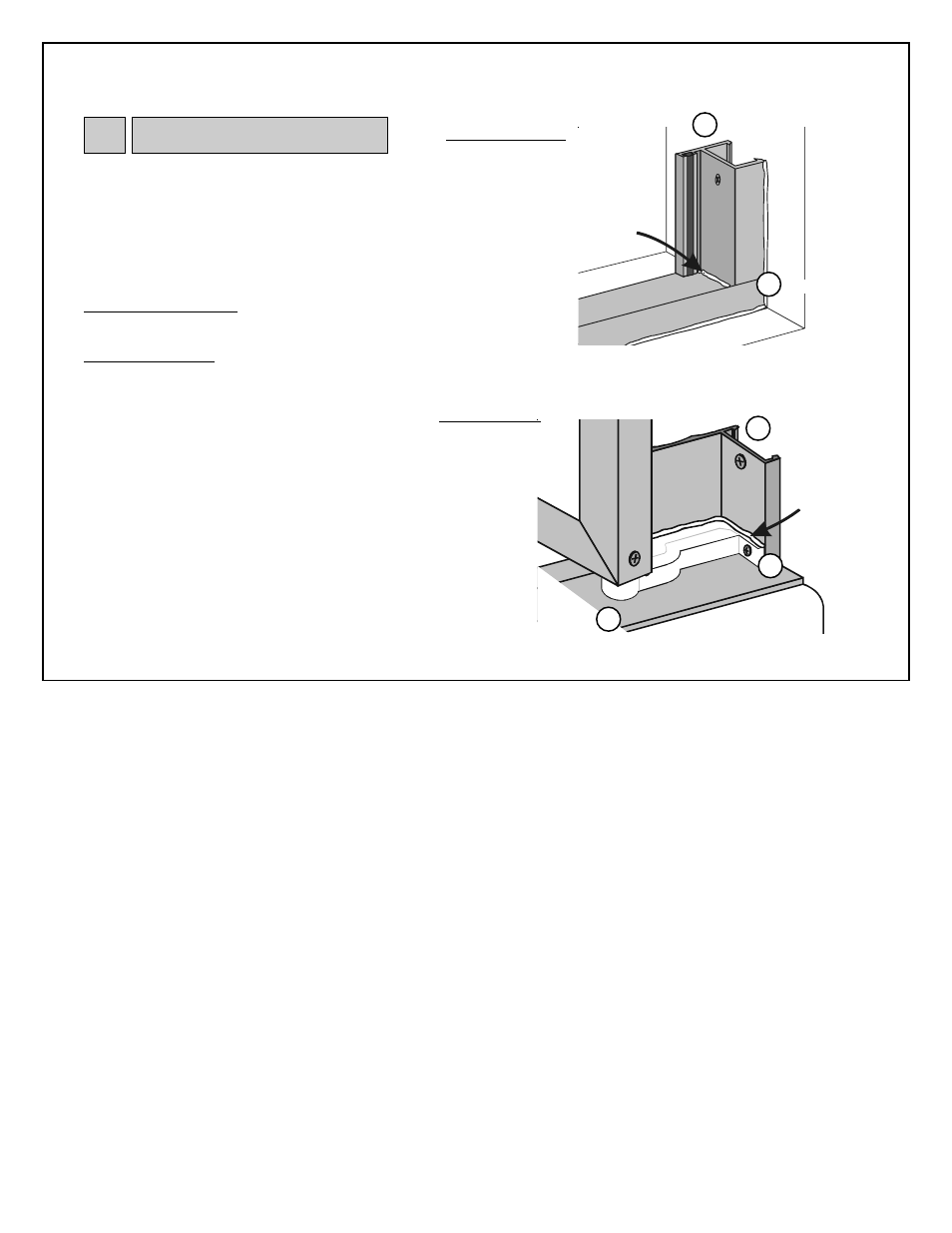

The use of a caulking compound will assure a
water-tight seal. Apply caulk along outside
edge of enclosure where metal and shower
meet, especially where sill meets threshold. If
desired, caulk inside of enclosure where jambs
meet walls.
On opening side of door, caulk joint where sill
and strike jamb meet.
On pivot side of door, caulk where bottom pivot
plate and pivot jamb meet.
Caulk where
strike jamb
and sill meet
Sill
Strike
Jamb
C
A
OUTSIDE OF SHOWER
Opening Side of Door:
Caulk where
pivot jamb
and pivot
plate meet
Pivot Plate
Sill
Pivot
Jamb
G
A
B
INSIDE OF SHOWER
Pivot Side of Door:
9
Caulk
