763R / 713R -GP 4/06

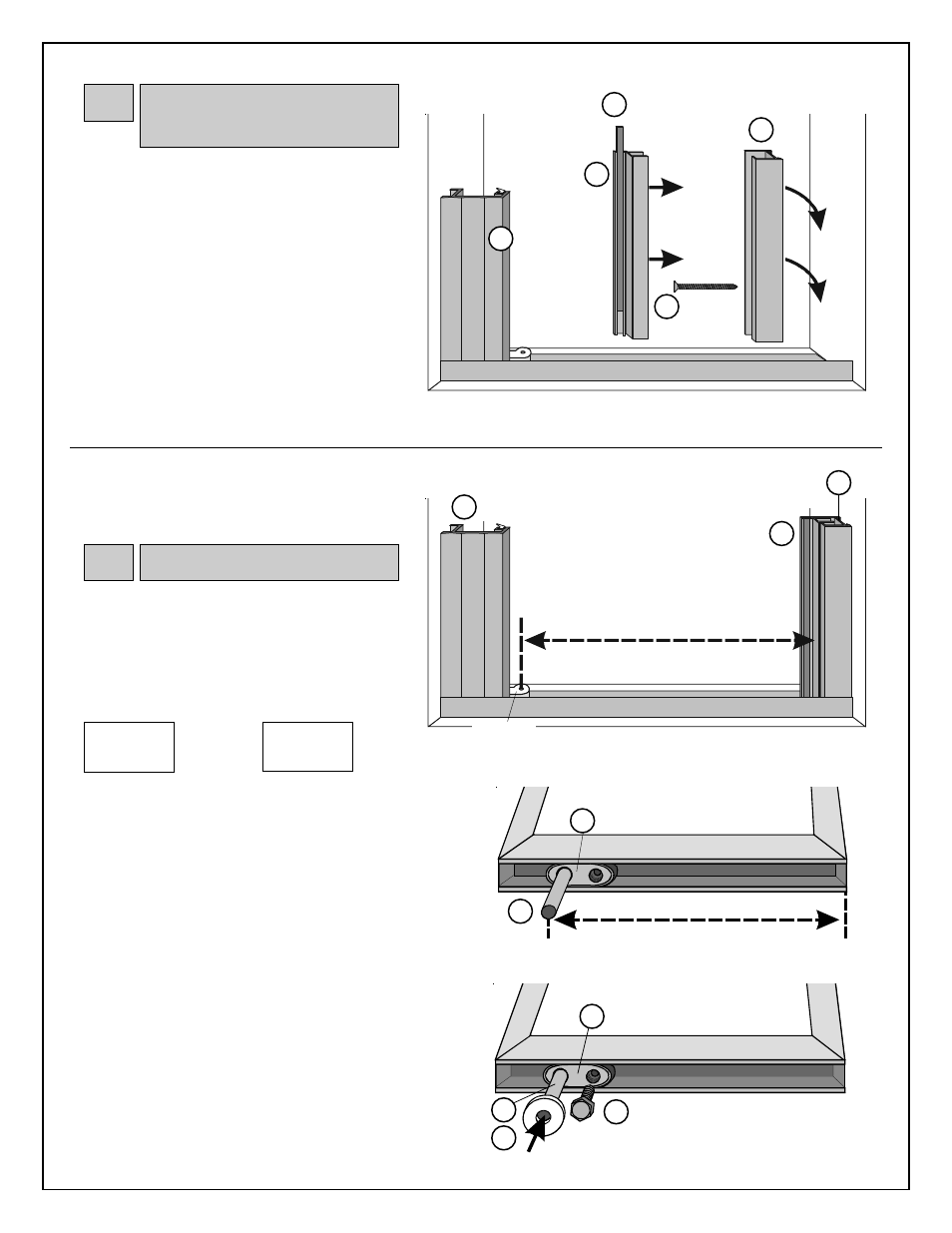

Position adjustable jamb (E) against opening
side wall with bottom resting on sill. Align jamb
vertically using a level. Drill four evenly spaced
holes through adjustable jamb into wall using a
1/8" drill bit.
Secure jamb to wall using 8A x 1 1/4" flat head
screws (Q).
Slide strike jamb into adjustable jamb with
magnetic strip facing out from shower.
Strike
Jamb
C
8A x 1 1/4"
Flat Head
Screw
Q
OUTSIDE OF SHOWER
B
Pivot
Jamb
Adjustable
Jamb
Slide magnetic strip (H) into slot of strike jamb
(C). Trims ends even with scissors.
H
Magnetic Strip
(facing out from
shower)
E
3 Strike Jamb
(C)
/
Adjustable Jamb
(E)
Strike
Jamb
C
Dimension A
(Dimension B = Dimension A - 1/16")
B
Pivot
Jamb
4 Slide Block
(J)
/ Pivot Pin
(K)
At bottom of pivot jamb, measure distance from
the center of hole in bottom pivot plate to the flat
surface of strike jamb. This is Dimension A.
Subtract 1/16" from Dimension A to find
Dimension B.
OUTSIDE OF SHOWER
Adjustable
Jamb
E
Bottom
Pivot Plate
Locate slide block (J) in bottom channel of door
panel. Locate pre-installed pivot pin (K) in slide
block.
Position slide block so that the distance between
the center of the pivot pin and the edge of the
door panel is equal to Dimension B.
Insert 8-32 x 1/2" hex head screw (M) into
threaded hole in slide block and tighten with hex
head wrench.
Slip nylon washer (L) onto pivot pin.
Dimension B
J
Slide
Block
Bottom of Door Panel
Pivot Pin K 8-32 x 1/2" Hex
Head Screw M
Nylon Washer L
J
Slide
Block
Pivot
Pin
K
Bottom of Door Panel
Dimension A Dimension B
- 1/16" =
