763R / 713R -GP 4/06
Pivot Pin
8-32 x 1/2"
Hex Head
Screw
K
M
Pivot Plate
G 8A x 3/8" Pan Head
Self Drilling Screw N

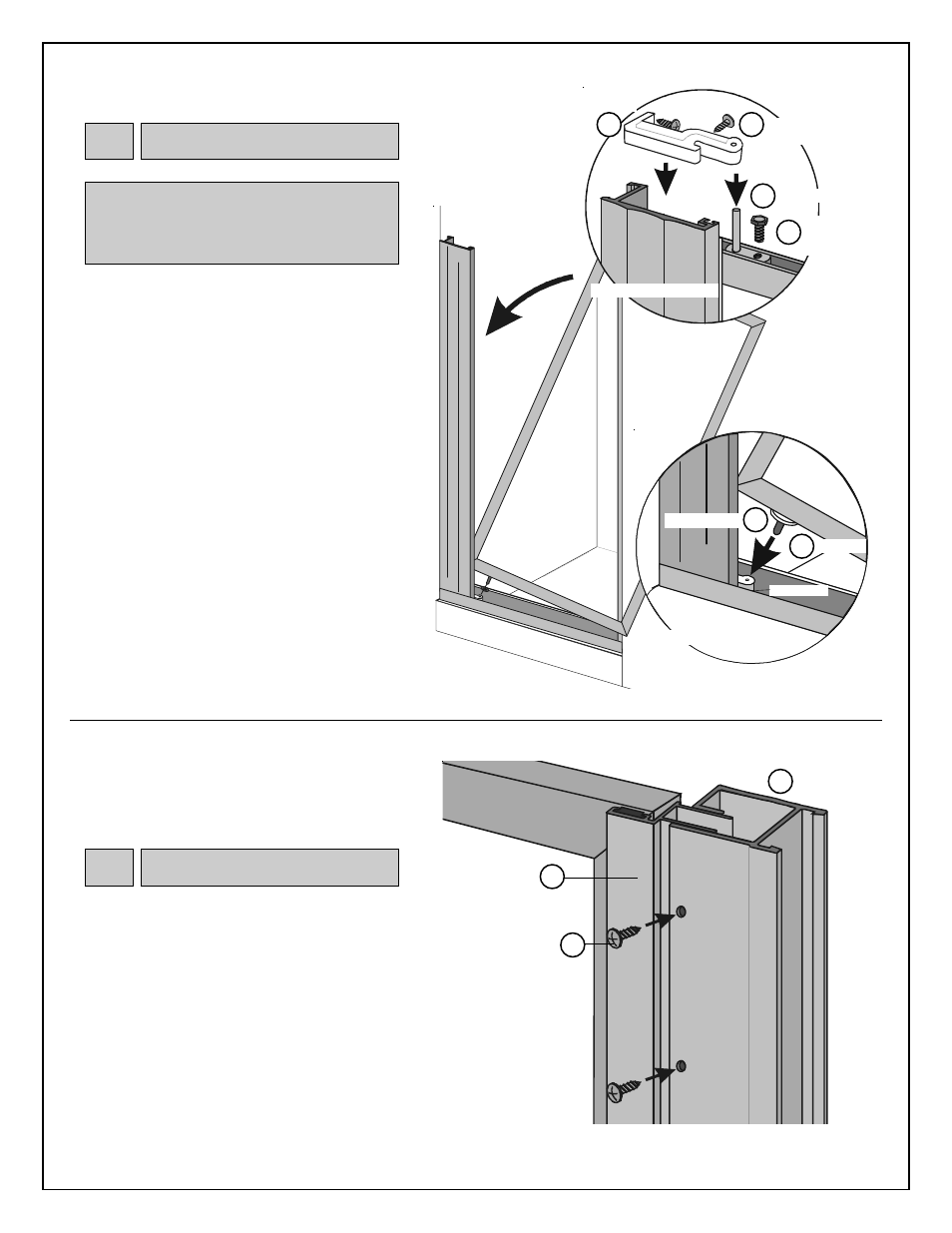

Lift door panel, inserting pivot pin into hole of
bottom pivot plate. Tilt top of door to normal
position, allowing door to close. (Magnetic strip
should hold door in place.)
At top of door, trim pivot door vinyl and slide pivot
plate into top of pivot jamb. As pivot plate is
lowered into place in jamb, move slide block in
top channel of door panel so that pivot pin fits into
hole of pivot plate.
Secure pivot plate to pivot jamb using 8A x 3/8"
pan head self-drilling screws.
Check alignment of door panel, making certain
that door closes evenly. Secure slide block in top
channel by inserting hex head screw in threaded
hole of slide block and tightening.
If magnetic strips do not seal tightly, reverse
polarity by removing strip from door stop
and replacing it with the previous top end as
the bottom end.
With door in closed position, adjust strike jamb to
fit snugly against door panel.
From inside shower, drill four evenly spaced
holes through inside leg of adjustable jamb into
strike jamb using 1/8" drill bit. Secure using
8A x 3/8" pan head self-drilling screws (N).
Strike Jamb
(with magnetic
strip facing
outside of shower)
C
Adjustable
Jamb
E
INSIDE OF SHOWER
5 Door Panel
OUTSIDE OF SHOWER
Pivot Pin
Pivot Plate
Nylon Washer
OUTSIDE OF SHOWER
K
L
6 Secure Strike Jamb
Door Panel
8A x 3/8" Pan Head
Self Drilling Screw
N
