Copernicus IS2 - Manual (Page 3)

IS2 - Version A - Released 02 August 2013 - Copernicus Educational Products Inc.
Continued:
Allen Key
2x
(43281)

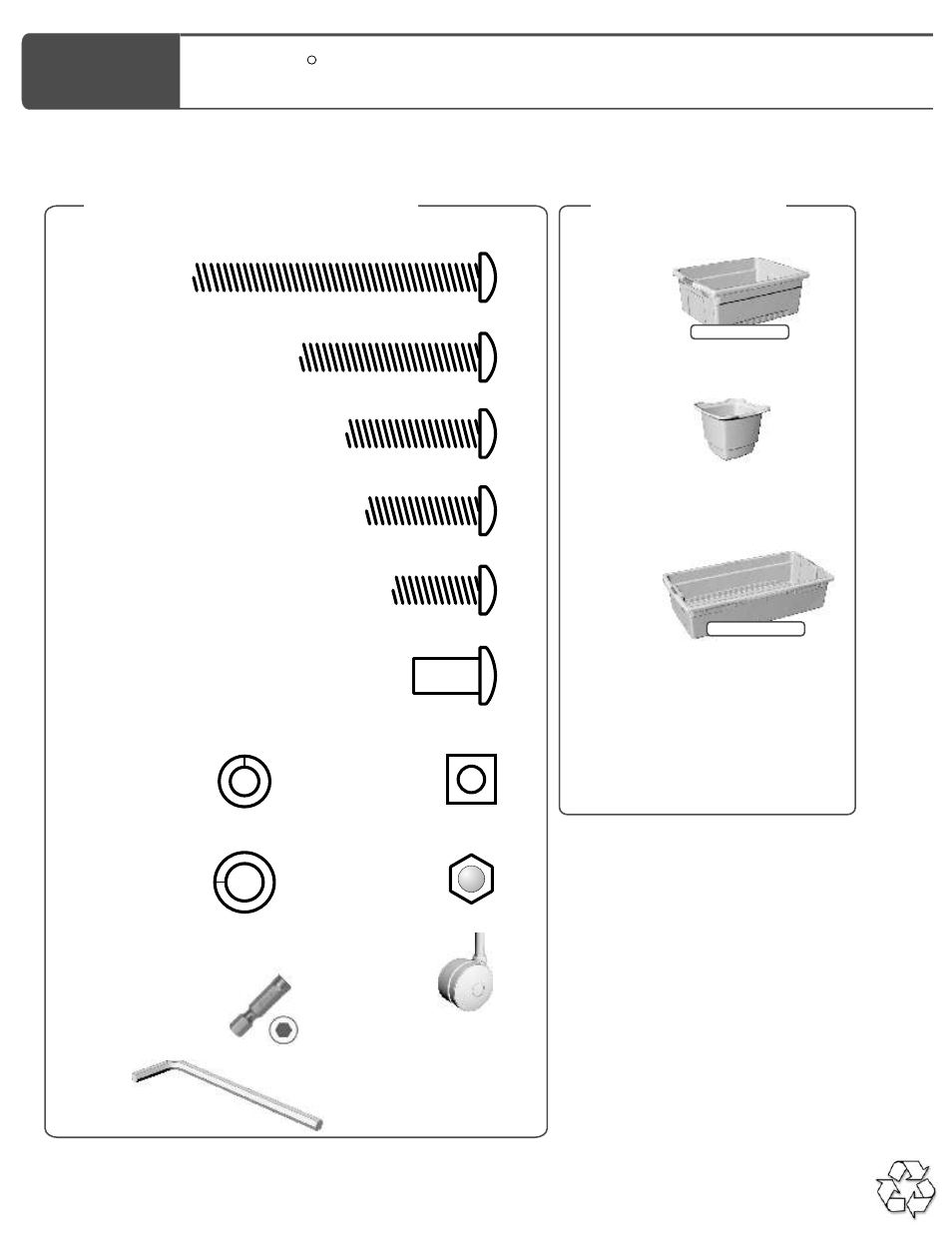

Royal Inspiration Station - Parts
B
M6 x 40mm Bolt
20x
(43240)
E
M6 x 20mm Bolt
20x
(43220)
G
6mm Lock Washer
26x
(43273)
H
8mm Lock Washer
28x
(43274)
F
M6 Barrel Nut
28x
(43272)
I
M6 Nut
4x
(43270)
D
M6 x 25mm Bolt
6x
(43225)
A
M6 x 65mm Bolt
4x
(43265)
Caster
4x
(41003C)
Individual
Driver for Cordless Drill
(Not to Scale)
1x
(43280)
Optional use for faster assembly
Hardware Actual Size
Bag = (43201)
(numbers in brackets are individual part numbers)
- Box 1
Open Tub
4x
(1xCC4068-C)
(1xCC4068-R)
(1xCC4068-Y)
Really Big Tub
1x
(CC4073-B)
Tiny Tub
2x
(1xCC4072-G)
(1xCC4072-O)
Contents - Box 2
C
M6 x 30mm Bolt
4x
(43230)
J
6mm Acorn Nut
4x
(43271)
10 lbs Weight Limit
15 lbs Weight Limit
R
IS2
