Configuration Switches
Referring to DETAIL B below, gently set the Hit & Go, LightAlert and SirenLock set-up switches to the desired posi-
tion. These switches are present even if the options were not purchased. If the SirenLock option was purchased and is
switched on, all of the tones except AIR HORN, are disabled until the 3-Level Warning Light Switch is moved to either the
Level-2 or the Level-3 positions.
Hit & Go - Slide the switch (#4) forward to allow the feature to operate, to the rear to defeat it.
SirenLock - The SirenLock option, when not defeated by means of the internal switches, allows siren tones (Wail, Yelp,
and Hi-Lo) to be produced only when the 3-Level Warning Light Switch is in the Lighting Level 2 (Green and Yellow LED's)
or Lighting Level 3 (Green, Yellow, and Red LED's) position. Air Horn, Radio Rebroadcast, and Public Address are unaf-
fected by this option.
Slide the switch (#1) forward to allow the feature to operate, to the rear to defeat the feature.
To select SirenLock in level 3 only, slide the level select switch (#2) toward the rear of the siren; slide it toward the front of
the siren to enable siren tones operation in both Levels 2 and 3.

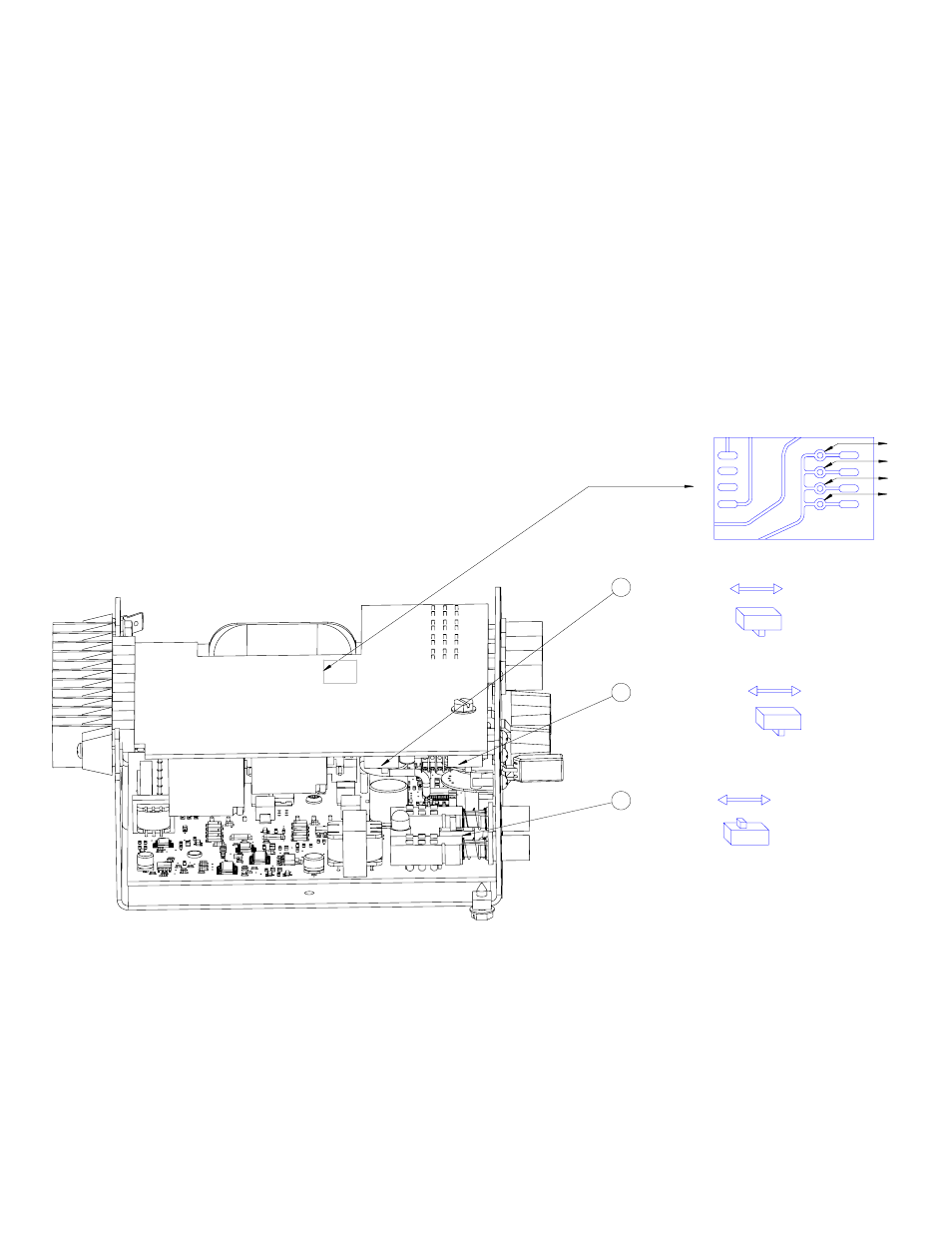

Detail B
1
2
3
SIRENLOCK - OFF ON
LIGHT LEVEL - 3 ONLY 2 & 3
HIT & GO - OFF ON
TO DEFEAT INDICATOR LED
FOR ANY AUXILARY SWITCH,
BREAK FOIL CORRESPONDING
TO SWITCH
