Code 3 V-Con Siren - Manual (Page 15)

15
Auxiliary Controls A, B, C, D switches
A,B, C & D switches are latching, Push-on/off (standard), may be ordered as momentary
Independent circuits
30 Amps. maximum combined total for switches A,B & D
20 Amps. maximum load for any single output A,B, C, or D
Audible alarm (optional)
TO TERMINAL T-9/
LIGHTING LEVEL-2
TO VEHICLE HORN
TO TERMINAL S-6

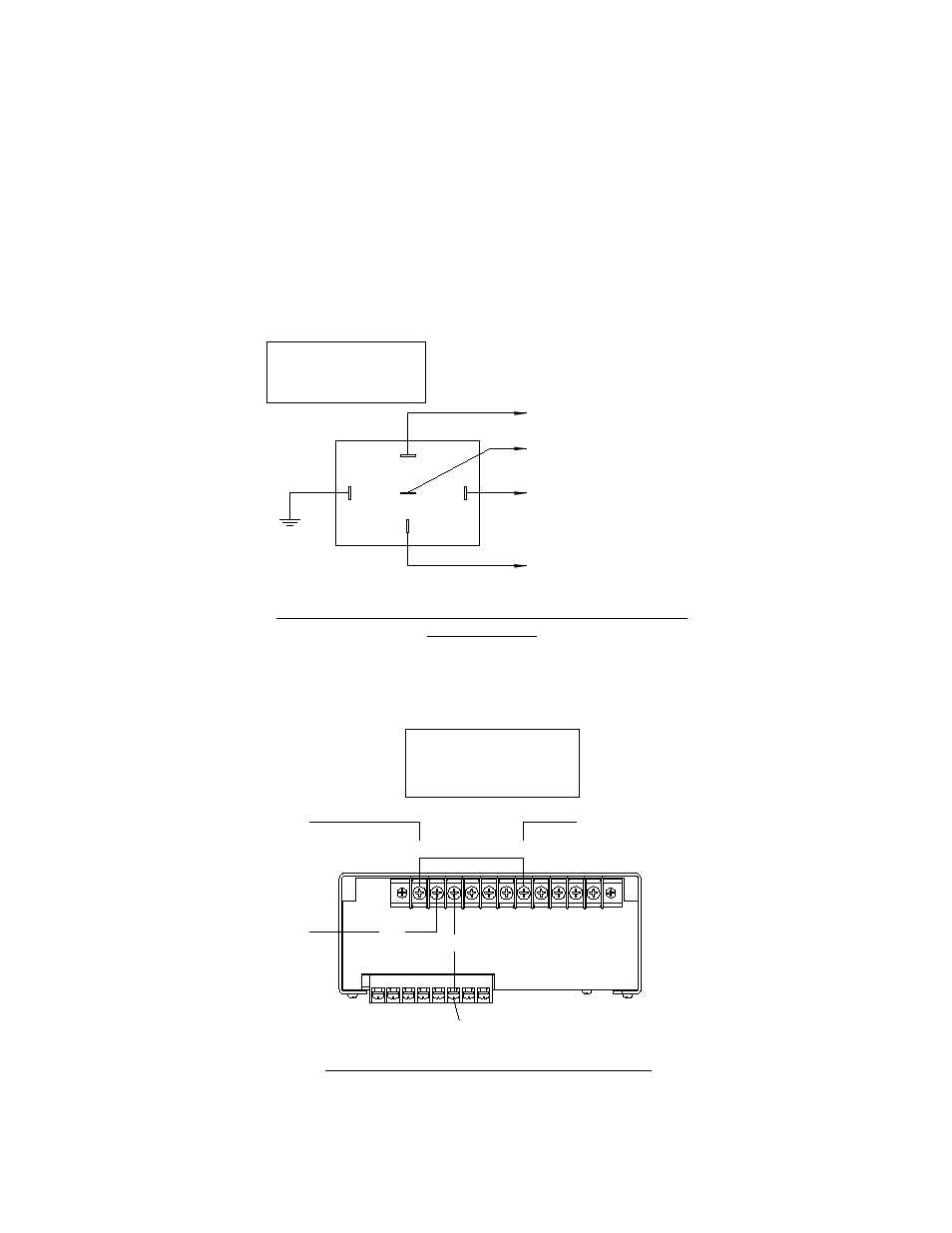

WIRING DIAGRAM, CODE 3 HORNTR, HORN RING
30
CONTROLS HORN
RING TRANSFER
LIGHTING LEVEL 2
86
TRANSFER KIT
87
85
HORN RING
ALTERNATE HORN RING TRANSFER METHOD
"C" CONTROLS HORN
ACCESSORY SWITCH
VEHICLE HORN
HORN RING
RING TRANSFER
T-1
T-2
T-7
S-6
T-3
TO BATTERY
