Final Harness Connections

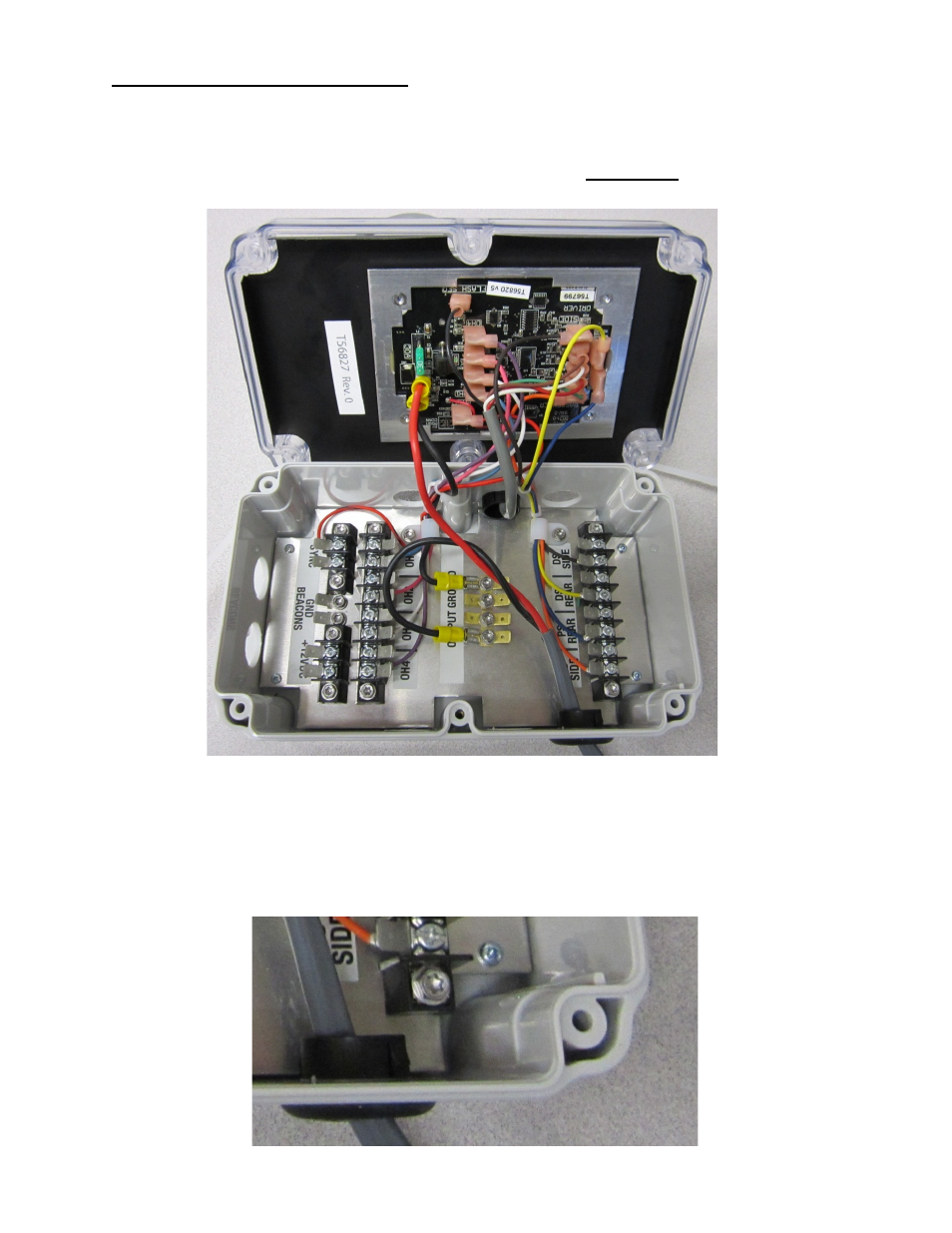

Below is a picture of how the product will arrive. The only connections remaining will be for the customer to
install the lights on the vehicle and run the harnesses back to the Matrix System Central Control box shown
below.
Mount the Matrix System CC Box using two customer supplied screws to the interior of the vehicle. Note:
Although this unit is water resistant, it is not water proof and therefore SHOULD NOT be mounted on the
exterior of the vehicle!
Below is an example of how to run the wire through the bushing. It is easiest to push through before
stripping back the sleeve or adding the quick connects. Once through the bushing, the sleeve can be
stripped and quick connects can be added. Strip jacket enough to allow plenty of room for the wires to
move about inside the Matrix CC box but leave enough of the jacket so that it still covers the wires for about
an inch after entering the box. Harnesses should not hinder opening the lid of the box.
