Code 3 Matrix - Manual (Page 10)

10

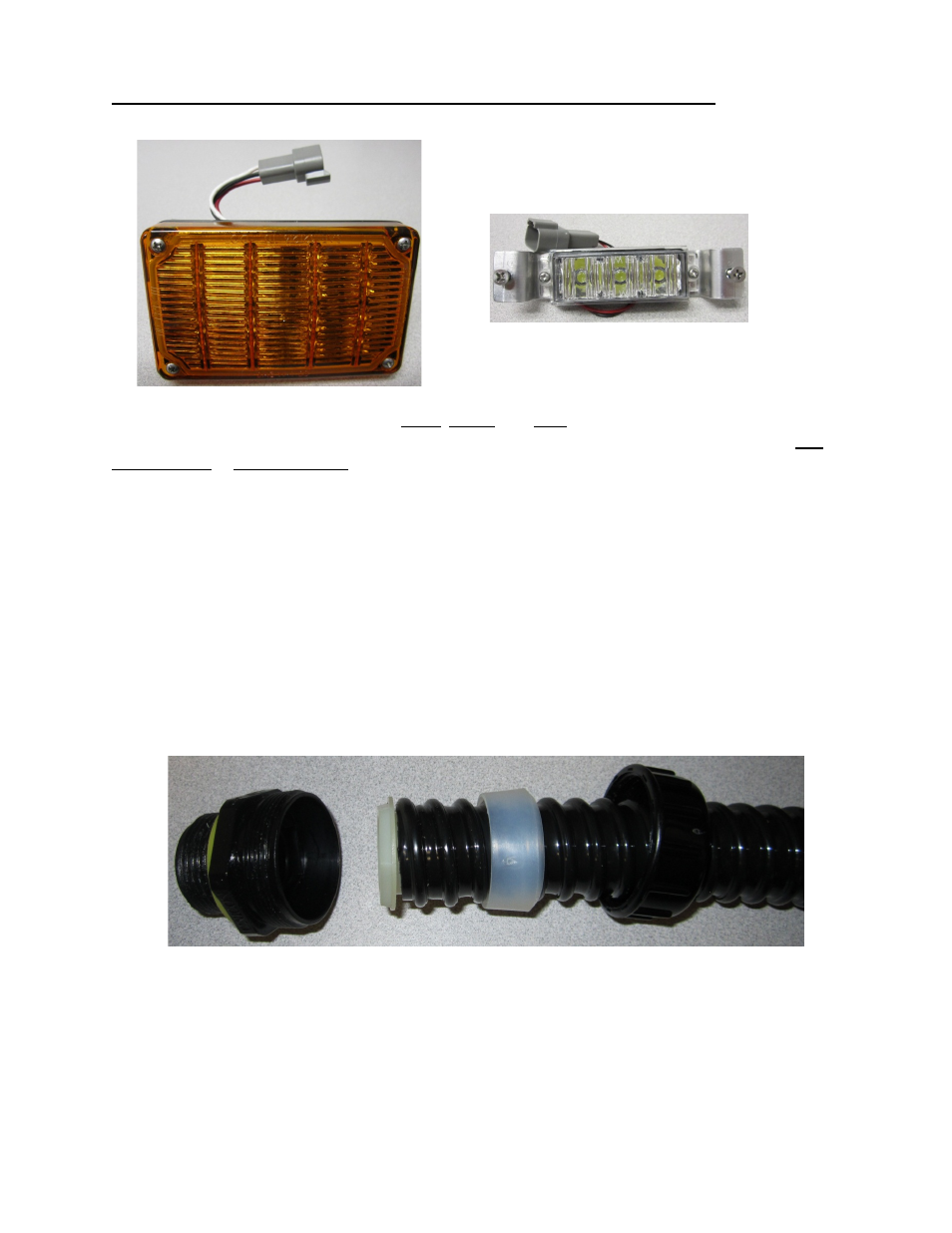

3x5 and XT-3 Installation Into Stainless Steel Enclosure
Stainless steel enclosures are available in single, double, and triple stack (see page 14). Mount XT-3 lights
if needed to the sides of enclosures. One enclosure for single, double, or triple stack can be used for side
mounted lights or solid sheet metal. Simply turn enclosure upside down to turn the hole to the inside of the
vehicle. The enclosures are symmetrical except for that hole. Note that the enclosures have a slight angle
on the top and bottom. This is to assist in drainage and avoid water build up in the enclosures.
The harness for the 3x5 and XT-3 should both be routed from the stainless steel enclosure through the
vehicle and into the cab. It is advisable to leave some extra cable at the Matrix System Central Controller
box for future installations.
Feed Harnesses for 3x5 and XT-3 from the back of the vehicle to the Matrix System Central
Controller
1. Weld stainless steel enclosure into the preferred location on the vehicle.
2. Attach fitting to conduit as shown below.
a. Twist white plastic insert into conduit.
b. Fit insert into fitting on the left.
c. Screw fitting on the right tight to fitting on the left.
