GM lever
Cable brackets and levers
CHECK LIST
__ Locking steering column lever is permanently fastened in the full up position.
Step 1.
__ Shifter is convenient to reach and has ample room for your hand in both park
and low gear. Step 2.
__ Carpet covers floorboard holes. Step 4.
__ Cable is securely fastened to the shifter and held with E-clip. Step 5.
__ Shifter is securely mounted to floorboard. Step 7.
__ Shifter cable is clear of exhaust system, engine and any moving parts. Step 7.
__ Throttle lever and shift lever are tight on transmission. GM step 9, Ford Step
14, Chrysler Step 20.
__ Oil pan bolts are tightened to 12-13 lb.ft. GM Step 10, Ford Step 16, Chrysler
Step 21.
__ Shifter is properly adjusted. Cable boots are installed, cable nuts are tightened
and swivel is secured with cotter key. GM Step 11, Ford Step 17, Chrysler Step
22.
__ The Neutral safety switch is connected and properly adjusted to prevent engine
starts in drive gears and reverse. GM Step 12, Ford Step 18, Chry not required.
__ There is no debris in the shifter mechanism.
__ Tower is trimmed. Step 26.
__ Boot and tower effectively cover mechanism. Step 27.
__ Indicator screw indicated gear properly. Step 29.
__ Shifter moves freely in all positions as described in Shifter Operation.
__ If your shifter is not working properly do not attempt to drive your car. Make sure
you have followed all instructions. If the shifter is broken or defective return it
to your B&M dealer.
TOOL LIST
1 Phillips screwdriver
1 7/16 socket
1 Ratchet or speed handle
1 7/16" wrench
1 1/2" wrench
1 9/16" wrench
2 11/16 wrench
1 9/32 drill bit
1 drill motor
1 1-1/2" holesaw
1 Crimping tool
1 Torque wrench 0-50 ft.lbs.
1 File
1 Tin snips
1 Wire strippers
1 Ruler
1 Dividers
1 Electrical tape
1 Hacksaw
1 Hammer
1 Drift pin
2-4 Jackstands
A/R Cable ties
IMPORTANT
Before installing the knob onto the shifter put Loctite on the threads of the
stick. The knob may gall on the threads of the stick and make it impossible to
remove the knob from the stick. If this occurs it can cause the stick to break if
you use excessive force while attempting to remove the knob from the stick.

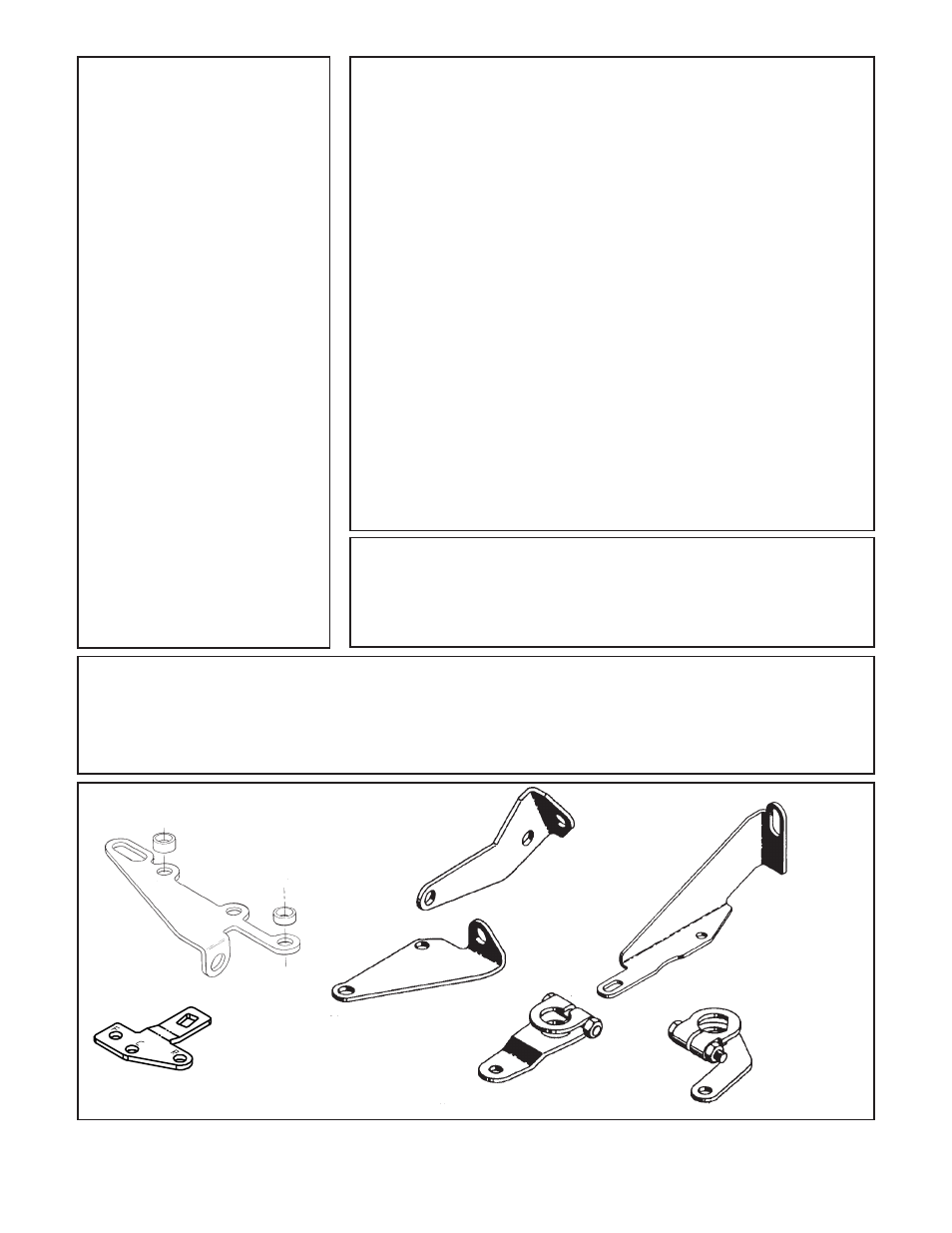

GM cable bracket
Ford lever
C-6 cable bracket
C-4 cable bracket
Chrysler lever
Chrysler cable bracket
PERIODIC INSPECTION AND MAINTENANCE OF YOUR SHIFTER IS RECOMMENDED TO ENSURE THAT
THE MECHANISM IS WELL LUBRICATED, FREE FROM DIRT OR RUST AND THAT THE CABLE IS PROPERLY
ADJUSTED. LACK OF MAINTENANCE COULD RESULT IN A FAILURE INCLUDING A FAILURE OF THE
REVERSE LOCKOUT SAFETY FEATURE.
WARNING
