Parts list – B&M 70233 TRANSKIT User Manual

Page 4

background image

4

Description

Qty

70233 SKIN PACK CARD

1

PLATE, FRICTION REV INPUT CL .068"

4

PLATE, STEEL REV INPUT CL .078"

4

PLATE, FRICTION OVERRUN CL .078"

2

PLATE, STEEL OVERRUN CL .092"

2

PLATE, FRICTION FWD CL .070" SM

5

PLATE, STEEL FWD CL .090"

5

PLATE, FRICTION 3-4 CL .080" SM 7

PLATE, STEEL 3-4 CL .078" 20 TOOTH

5

PLATE, STEEL 3-4 CL .078" 15 TOOTH

1

PLATE, FRICTION LO REV CL .088" SM

5

PLATE, STEEL LO REV CL .070"

4

BAND, 2-4

1

PLATE, 3-4 CLUTCH APPLY

1

BAG ASSY 70233 TRANSKIT

1

SPRING, TH700 PRESSURE REG (BLUE) 1

RING, RETAINING PRESSURE REG

1

ROD, BLOCKER LINE BIAS

1

SPACER 5/16"ID X 3/8"LG RED

1

SPACER 5/16"ID X 5/8"LG YELLOW

1

SPACER 5/16"ID X 3/4"LG BLUE

2

DRILL, .094 (3/32")

1

DRILL, .125 (1/8")

1

SPRING, 3-4 CLUTCH BOOST

5

BUSHING, FR0NT PUMP

1

BUSHING, EXTENSION HOUSING

1

DRAIN PLUG,

1

NUT, HEX JAM 1/2"-20

1

PLUG, 1/8" NPT STEEL

1

GASKET, DRAIN PLUG

1

70233 MISCELLANEOUS

OVERHAUL SEAL AND GASKET KIT

1

FILTER, TRANSMISSSION OIL

1

INSTRUCTIONS, 70235 TRANSPAK

1

Description

Qty

70232 SKIN PACK CARD

1

PLATE, FRICTION REV INPUT CL .078"

4

PLATE, STEEL REV INPUT CL .078"

3

PLATE, FRICTION OVERRUN CL .078"

2

PLATE, STEEL OVERRUN CL .092"

2

PLATE, FRICTION FWD CL .070" SM

5

PLATE, STEEL FWD CL .090"

4

PLATE, FRICTION 3-4 CL .080" SM

6

PLATE, STEEL 3-4 CL .078" 20T

5

PLATE, FRICTION LO REV CL .088" SM

5

PLATE, STEEL LO REV CL .070"

4

BAND, 2-4

1

PLATE, 3-4 CLUTCH APPLY

1

RING, RETAINING 3-4 CL (.094")

1

BAG ASSY 70232 TRANSKIT

1

SPRING, TH700 PRESSURE REG (BLUE) 1

RING, RETAINING PRESSURE REG

1

ROD, BLOCKER LINE BIAS

1

SPACER 5/16"ID X 3/8"LG RED

1

SPACER 5/16"ID X 5/8"LG YELLOW

1

SPACER 5/16"ID X 3/4"LG BLUE

2

DRILL, .094 (3/32")

1

DRILL, .125 (1/8")

1

SPRING, 3-4 CLUTCH BOOST

5

BUSHING, FR0NT PUMP

1

BUSHING, EXTENSION HOUSING

1

DRAIN PLUG

1

NUT, HEX JAM 1/2"-20

1

PLUG, 1/8" NPT STEEL

1

GASKET, DRAIN PLUG

1

70232 MISCELLANEOUS

OVERHAUL SEAL AND GASKET KIT

1

FILTER, TRANSMISSSION OIL

1

INSTRUCTIONS, 70235 TRANSPAK

1

Parts List

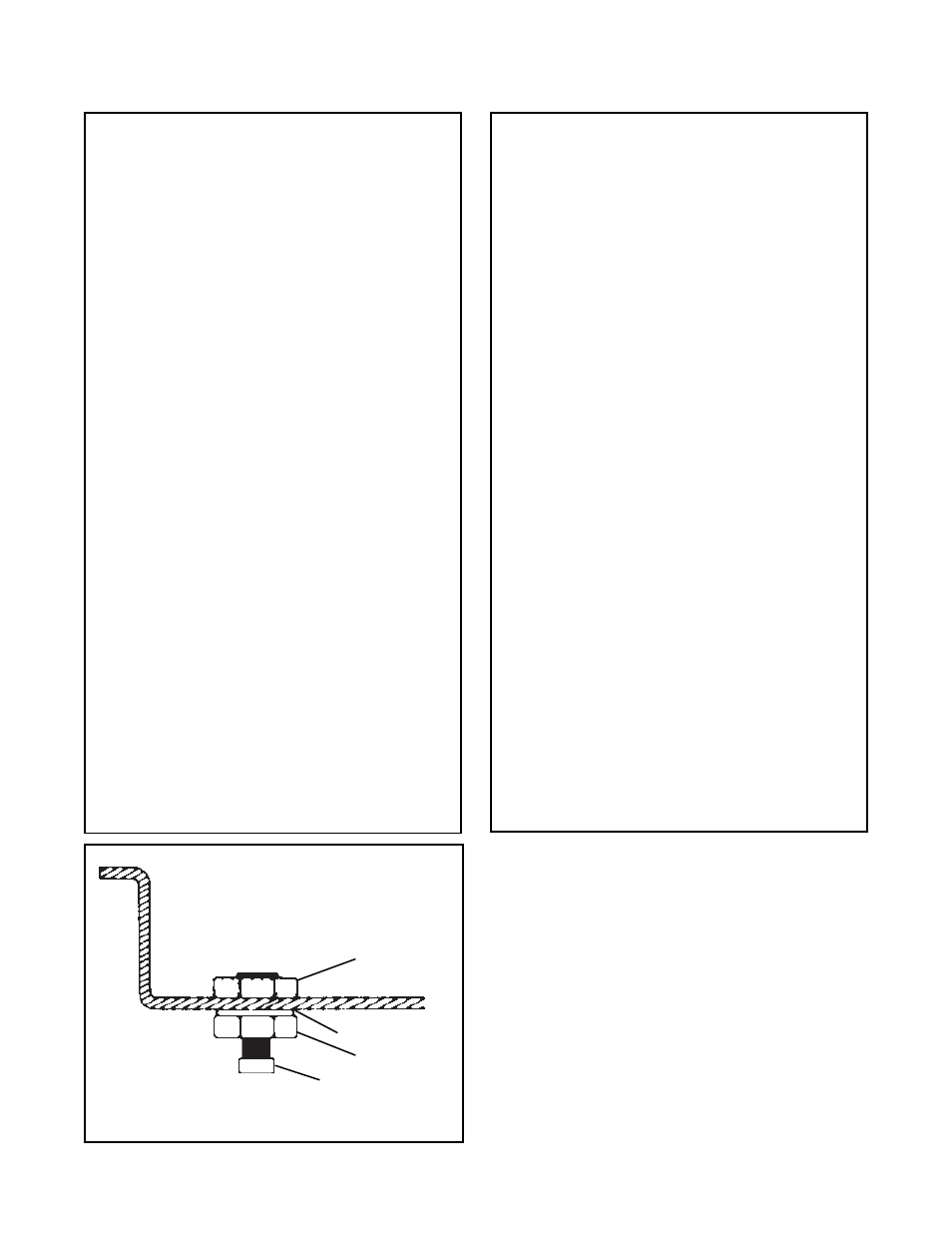

Figure 5:

Drain Plug Installation

GASKET

BOLT

1/8"NPT PLUG

NUT
