B&M 30289 CHROME DEEP PAN User Manual
Page 2

will re-use stock pan bolts.
Tighten bolts 12-13 ft-lbs. Do
not overtighten as this can cause
leaks. Install drain plug and
tighten 20-25 ft-lbs.
STEP 5. If using a temperature
sensor, install in provided 1/8"
NPT port on driver's side, other-
wise tighten 1/8" NPT plug.
(only applicable on cast pan)
STEP 6. Lower vehicle but try to
keep rear wheels off the ground,
if possible. Add 6 quarts of B&M
Trick Shift ATF. While Trick Shift
is superior in heat capacity, lubri-
cation and friction material per-
formance, if Trick Shift is unavail-
able, we recommend Ford Type
F fluid over Dexron or Type A.
STEP 7. Start engine and place
shifter in Neutral position. Add
fluid until oil level is between the
Add and Full marks. Shift trans-
mission through all gear posi-
tions. If the rear wheels are off
the ground, allow the transmis-
sion to shift through all gears sev-
eral times. Place selector in
Neutral and check fluid level. Do
not overfill as this will cause
foaming and overheating.
Check for leaks.

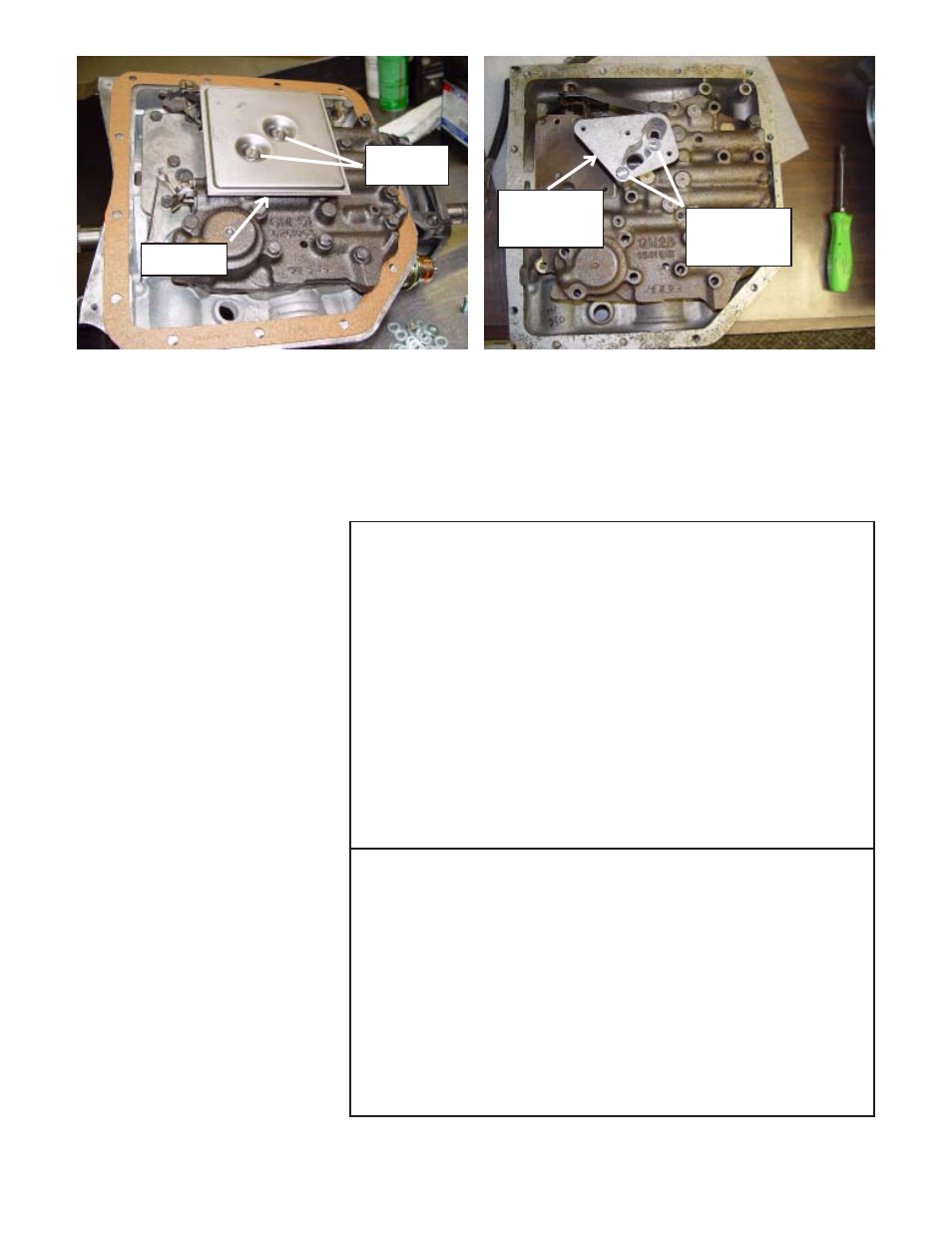

Figure 1
Figure 2
TOOL LIST
1
1/2" Socket - 3/8" Drive
1
Speed Handle or Ratchet - 3/8" Drive
1
1/2" Wrench
1
Flat Blade Screwdriver
1
3/4" Wrench
1
Scraper
1
Torque Wrench 0-50 ft.-lbs. (optional)
PARTS LIST
1
Oil Pan (Deep Cast or Deep Chrome)
1
Pan Gasket
1
Drain Plug and Gasket
1
Filter (#10288)
1
Filter Extension
1
Filter Extension Gasket
2
Filter Extension Screws
3
Filter Nuts
3
Filter Screws
13
Washers (Cast deep pan ONLY)
13
Pan Bolts (Cast deep pan ONLY)
FILTER
SCREWS
FILTER
B&M
FILTER
EXTENSION
FILTER
EXTENSION
SCREWS
