B&M 120002 TPS FOR CARBUERETED KITS - Manual (Page 2)

Step 1: If using the factory throttle cable, use supplied factory cable bracket. Mount carburetor cable bracket to
carburetor and leave the cable bracket loose for adjustment.
Step 2: Mount the TPS to firewall or inner fender in an area where the cable will not be in a bind.
Step 3: Adjust length of cable by loosening brass adjustment nut on cable but do not tighten yet. Insert the slider end
of cable into the bracket at the carburetor.
Step 4: Work with cable length and adjustment at carburetor until the TPS is able to travel its full range from closed
throttle to wide open throttle. After proper adjustment is achieved, tighten all bolts and screws.
Pin
A
B
C Function
Signal ground
Sensor Output
+5 VDC
Pin out:

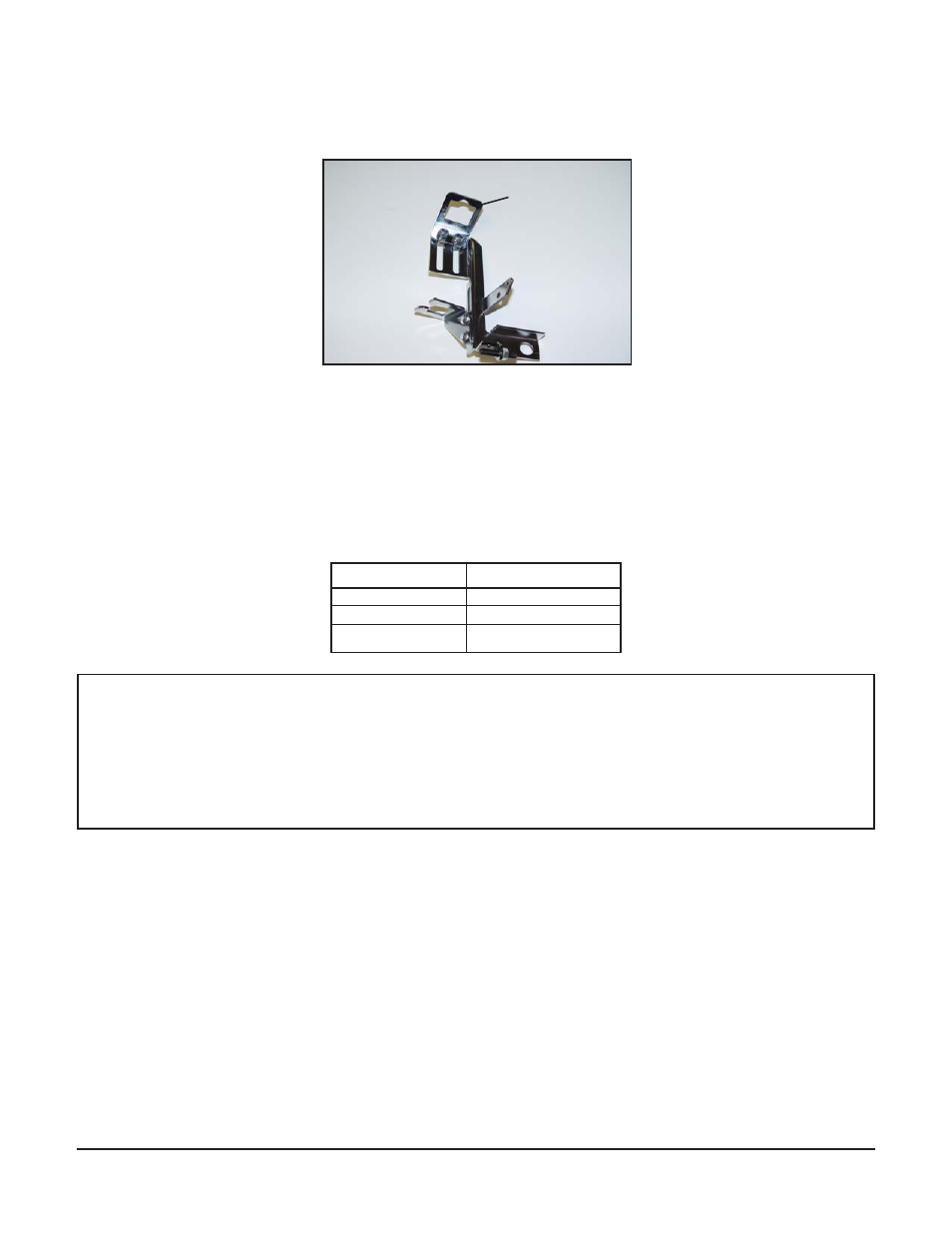

Replace with factory
cable bracket
