OSD MENU Description
DISPLAY SETUP
COLOR ADJUSTMENT
VIDEO SHIELD
VGA - TV SELECTION
VIDEO OUT SETTING
SPOT MONITOR
EVENT DURATION
AUTO SCAN
CH1
MAIN - MAIN
QUAD
ADJUSTABLE
SET DURATION 010 SEC

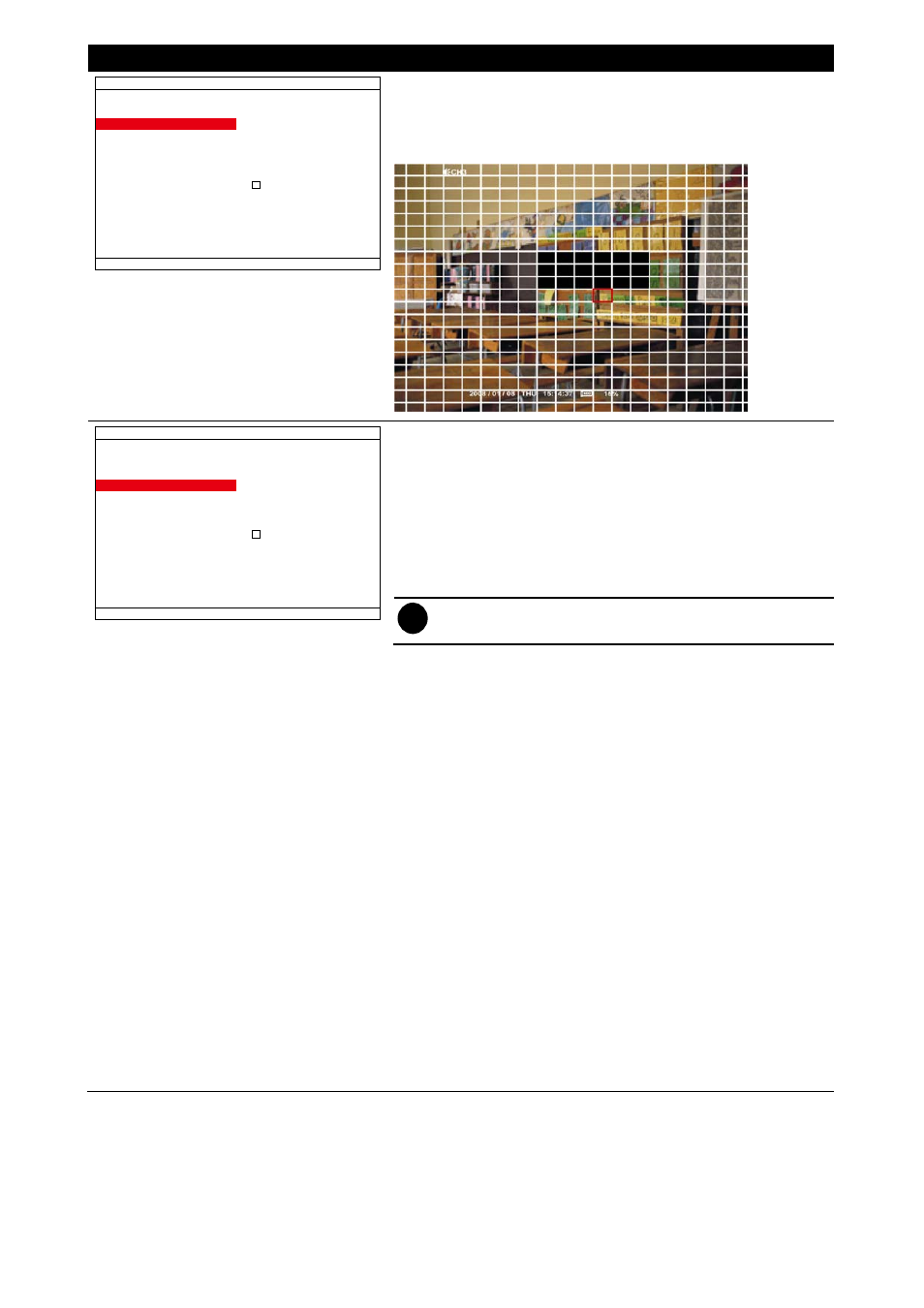

VIDEO SHIELD
Select the channel and set an area that will be blocking for
particular security issue when DVR unit is recording such as
enter password for entrance guard.
DISPLAY SETUP
COLOR ADJUSTMENT
VIDEO SHIELD
VGA - TV SELECTION
VIDEO OUT SETTING
SPOT MONITOR
EVENT TYPE
AUTO SCAN
CH1
MAIN - MAIN
QUAD
ADJUSTABLE
EVENT DURATION 010 SEC
VGA - TV SELECTION
Select the VGA and TV output order.
- MAIN - MAIN: Both VGA and TV output surveillance
video on screen.
- MAIN – SPOT: VGA output surveillance video and TV
output the alarm event video.
- SPOT – MAIN: VGA output alarm event video and TV
output the surveillance video.
i When there is only one output source (TV or VGA),
please select the output mode as MAIN – MAIN.
SPOT MONITOR
Enable/disable to display channel alarm event in QUAD screen
mode or the selected channel (1, 2, 3, or 4) when the sensor is
activated or motion is detected. When there is multiple alarm
events, DVR system will display in QUAD screen mode.
EVENT DURATION
Select the way of the event video to be display.
- STEADY: When event has occurred, the event video will
display on the screen. After event has been reset, the
screen display will return to the normal display screen in
few seconds later.
- ADJUSTABLE: the event video will be display according
to the time that user has setup in SET DURATION. And
then, after duration time, screen will return to the normal
display screen.
SET DURATION
Set a period time (10 ~ 999 sec) for alarm event to display on
screen.
AUTO SCAN
Enable/disable auto cycle switch to display the next channel
when in full screen mode.
