INSTRUCTION MANUAL
9

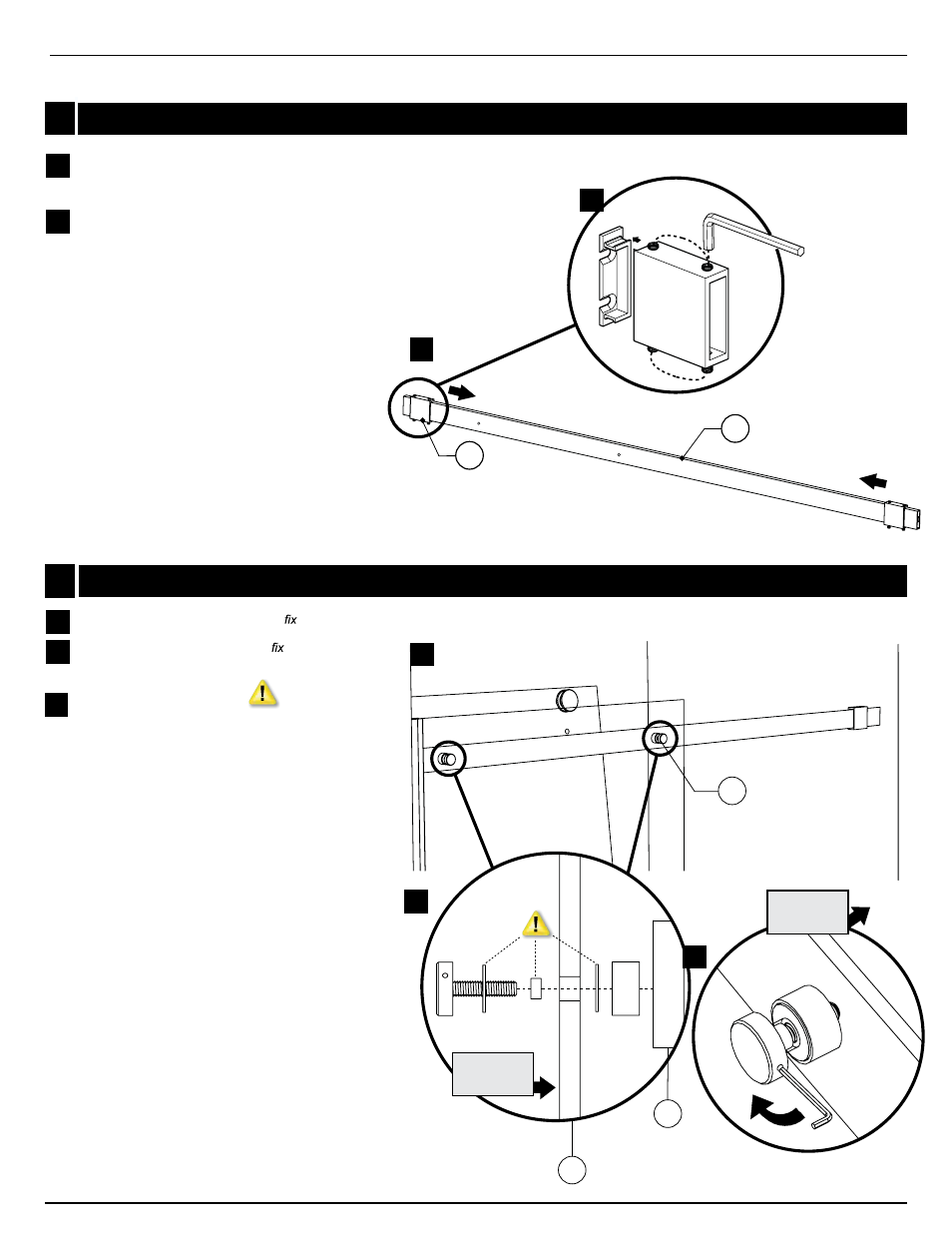

Align running rail holes with holes in panel.
Install glass fasteners (14) to join panel(10) and rail
(12). Be sure to place gaskets between all contact with
glass and metal parts.
Fasten with hex 3mm key.
Unfasten set screws (x4) from wall bracket (13).
Then remove back plate from the wall bracket and set
aside
With back plates of wall brackets removed, slide the
wall brackets away from the ends of the running rail
(12).
GLASS FASTENERS
14
10
12
12
13
RUNNING RAIL
4
5b
5c
5c
5a
5a
5b
4b
4a
5
4a
4b
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
