Alumax W1 User Manual
Page 15
5
9
9
2
4
2
1
INSTRUCTION MANUAL
15

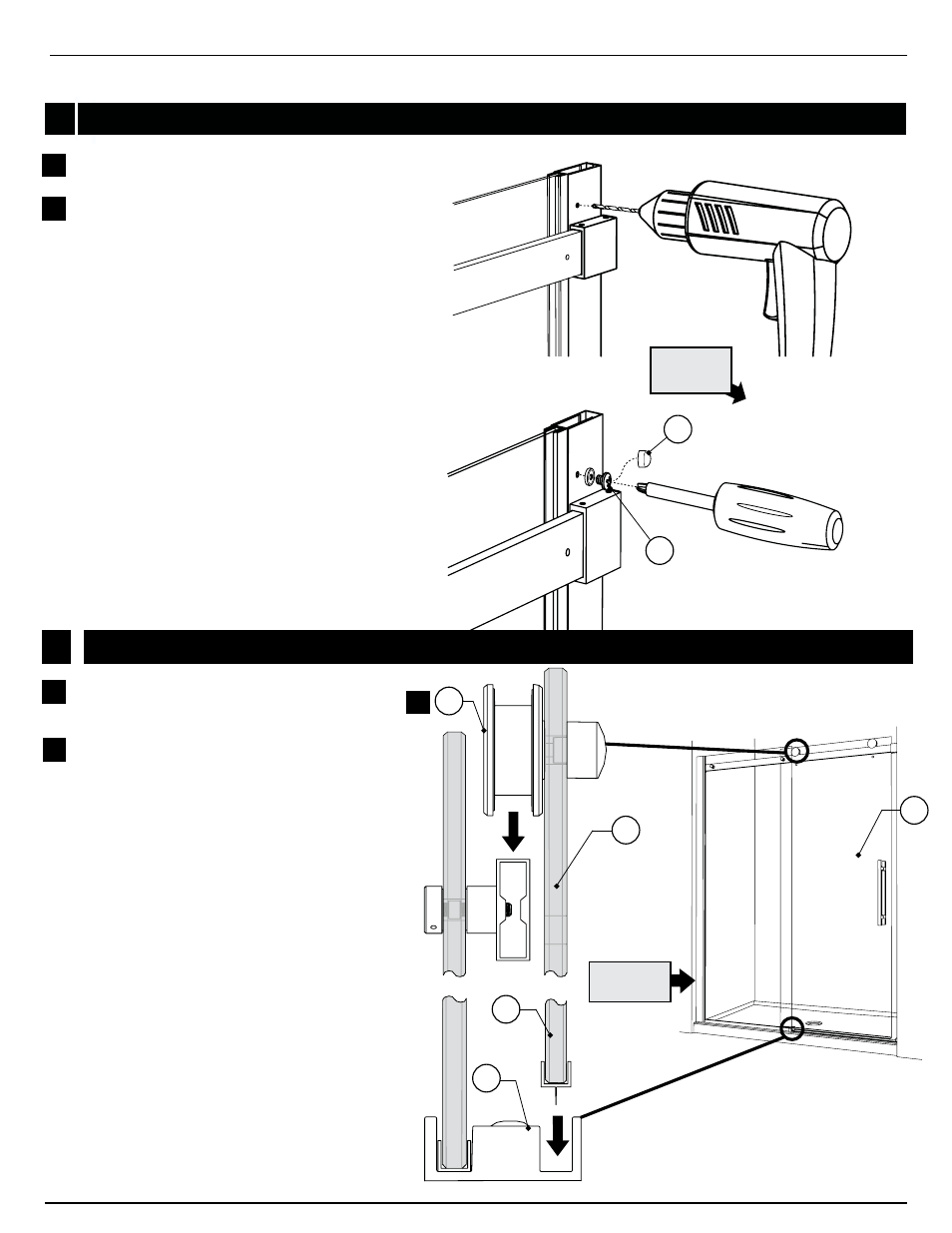

11 WALL JAMB AND EXPANDER
Install door panel (9) by aligning the rollers (11) on
running rail (12) and by aligning the door panel (9) with
the back channel of bottom guide (17)
Slide door to insure a smooth stable glide.
DOOR PANEL INSTALLATION
9
17
11
Drill through wall jamb hole with 1/8” drill bit, to perce
through the expander. (x3)
Screw 3/4” screws (21) through holes to hold expander
and wall jamb together in place. (x3) Cover all screws with
screw caps (24).
12
11a
11b
12a
12b
12a
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
