INSTRUCTION MANUAL

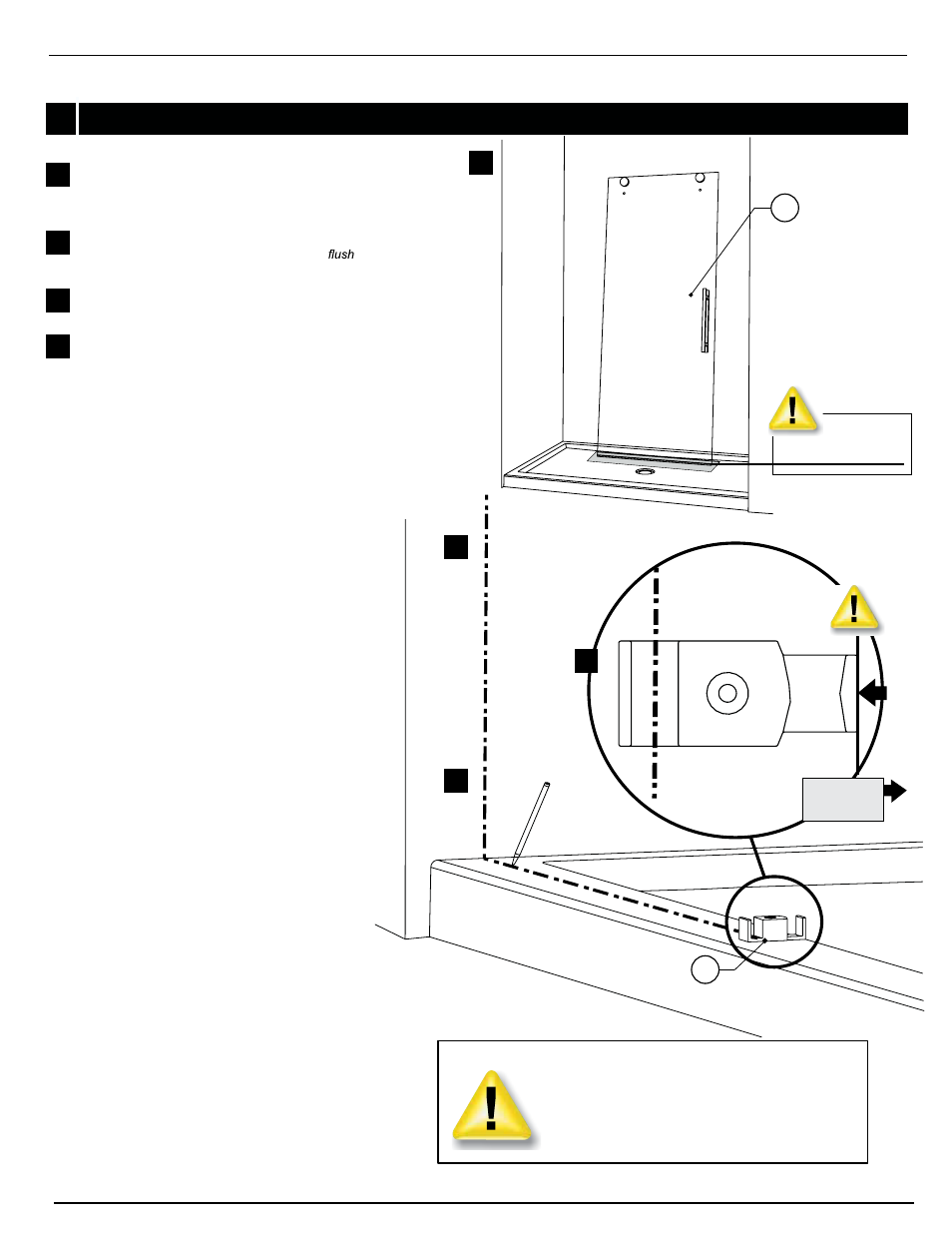

2 WALL JAMB INSTALATION

CARBOARD OR TOWEL

TO PROTECT

Place door panel (9) inside shower to simplify follow-

ing installation procedures. Place the panel on a cush-

ioned surface, such as a towel or carboard, to prevent

damage either to the panel or the base.

Temporarily place bottom guide (17) on shower base.

The back of the bottom guide must be placed

with

the inner threshold edge of the shower base.

While keeping bottom guide in place at the edge of the

threshold, trace a line in the center of the front channel.

Continue to trace the center line at the same distance

along the threshold up the side of the wall. This will

locate the placement of your wall jamb.

THE BACK OF BOTTOM GUIDE (17) MUST BE FLUSH

WITH INNER THRESHOLD OF SHOWER BASE.

INTERIOR

SHOWER SIDE
