Alumax W1 User Manual
Page 18
8
INSTRUCTION MANUAL
18

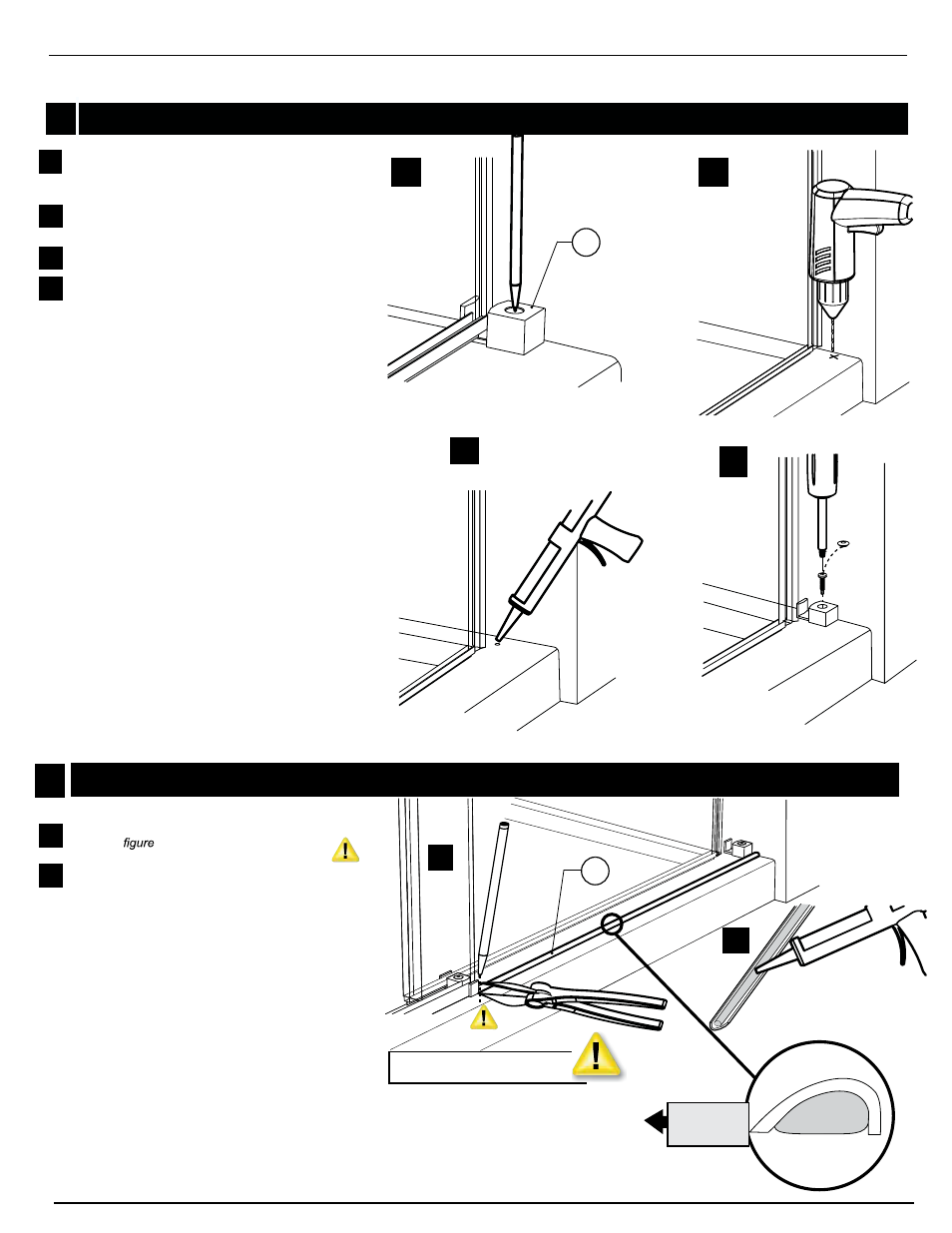

Place door receiver (18) against wall, place so that
the door panel slides smoothly into receiver. Mark
hole location.
Remove door receiver and drill in marked
location with 1/8” drill bit.
Insert one drop of silicone into hole.
Reposition and secure in place with provided screw
then cap with screw cap.
Place threshold (8) between wall and bottom guide as
shown in
16a. Cut off any excess length.
Apply silicon on the bottom of threshold as indicated
in 16b. Secure threshold in place.
15 DOOR RECEIVER INTALLATION
18
THRESHOLD
16
15a
16a
16a
15a
15b
16b
16b
15b
15c
15c
15d
15d
CUT ONLY IF NECESSARY
INTERIOR
SHOWER SIDE
