INSTRUCTION MANUAL
11

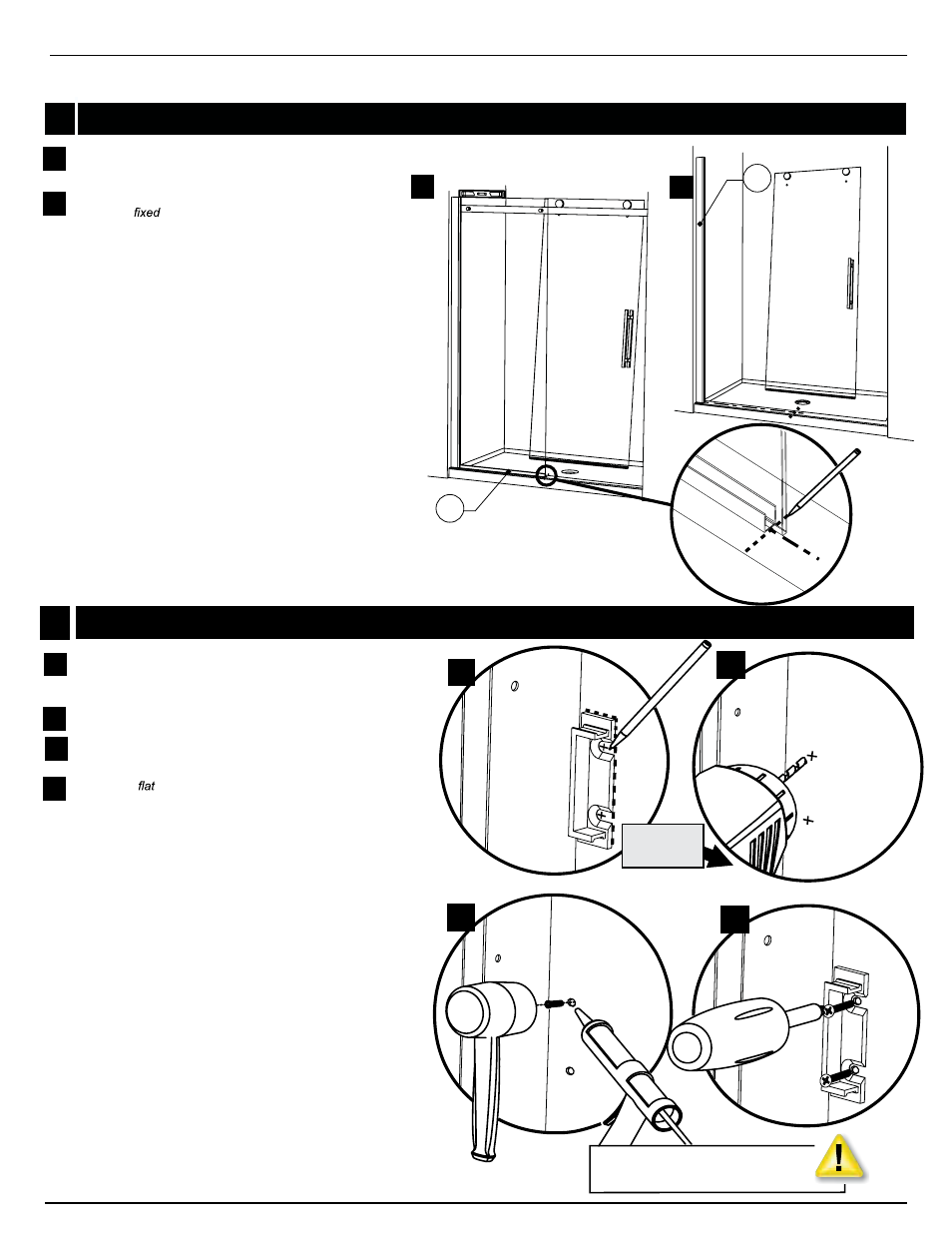

6 BOTTOM GUIDE
Trace edge of U-channel (4) to determine location of
bottom guide.
Remove glass fasteners, running rail along with wall
brackets, panel and U-channel (4). Put aside.
Only the wall jamb (1) and previously assembled door
panel should stay in place.
Align back plate of wall bracket to previously traced mark
on wall. Trace hole centers to determine drilling location.
(x2)
Drill marked holes in walls by using the 1/4” drill bit.
Insert one drop of silicone in each hole bored in the wall
before inserting the wall plugs.
Screw in head screws through holes to secure back
plate of bracket to wall (x2)
WALL BRACKET BACK PLATE
SAME PROCEDURE FOR OPPOSITE SIDE OF WALL
6a
7a
7a
7b
7b
7c
7c
7d
7d
6a
6b
6b
7
INTERIOR
SHOWER SIDE
