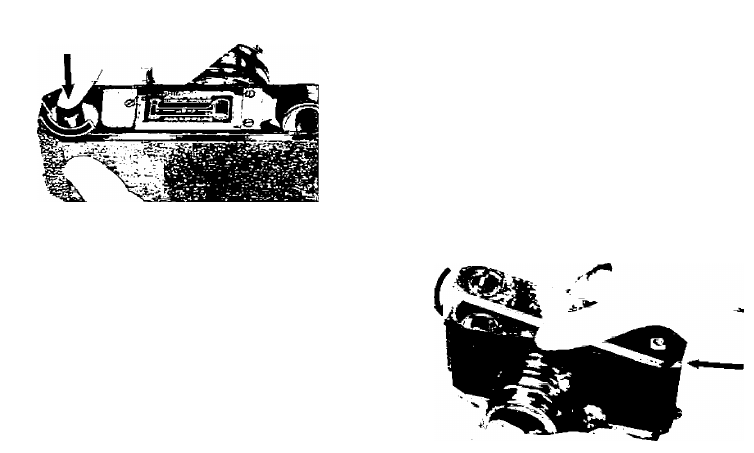

The

Take-up

Spool

has

a

spring

catch

to

facilitate

its easier removal from the camera body. By turning

the top of the Take-up Spool slightly, it v/ill jump up

and

allow

you

to

get

a

better

grip.

Re-lock

this

spring

as

shown

in

the

illustration

after

you

have

loaded

your

camera

and

before

you

replace

the

Baseplate.

Replace

the

Baseplate

by

hooking

it

into

the

lug first and lock the Baseplate.

2 1
