Attaching Flash Unit to Camera Accessory Shoe

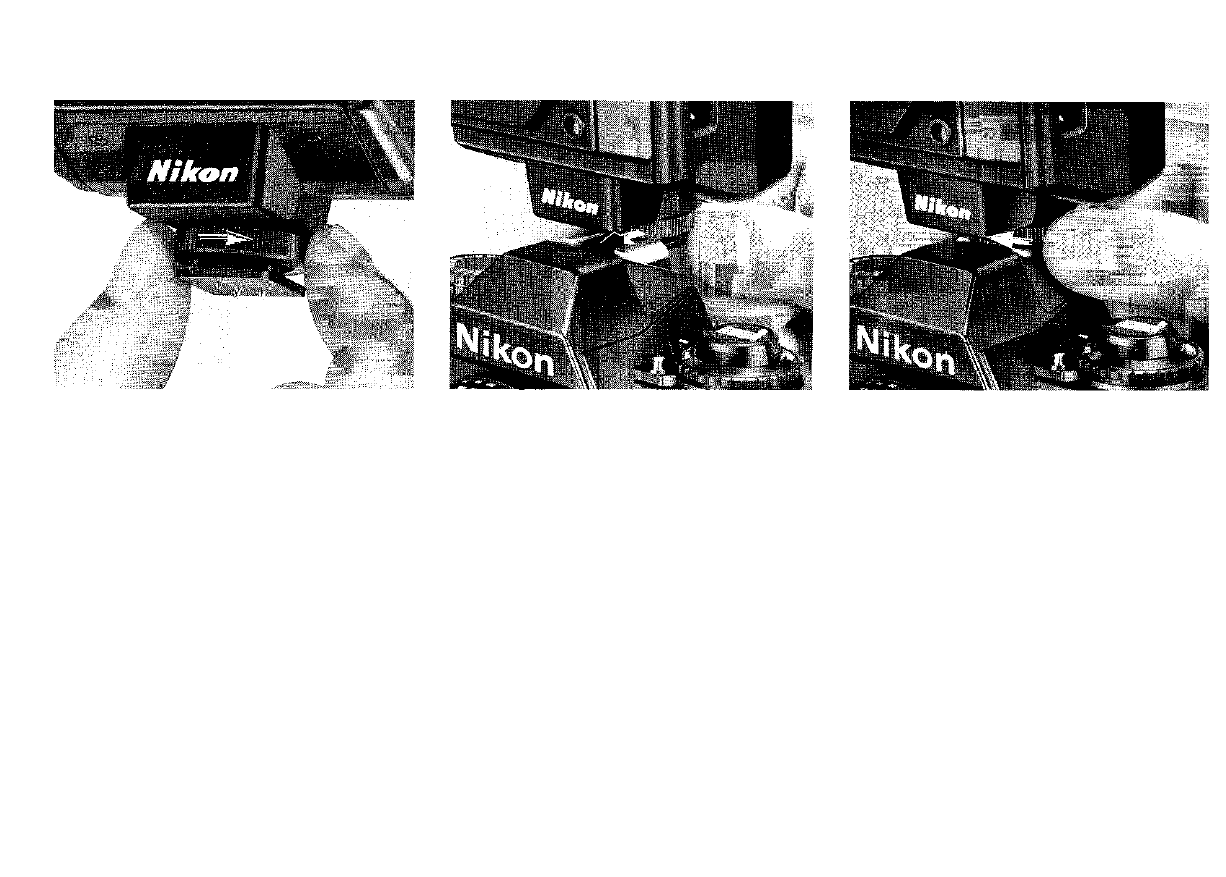

^ Turn the mounting foot
' lock nut clockwise as far
as it goes.
Slide mounting foot
' forward into the camera’s
accessory shoe as far as it
goes.
0_ Tighten lock nut firmly.
With Nikon F3-series cameras with DE-2 or
DE-3 finder: Attach Flash Unit Coupler AS-4 or
AS-7 to camera's accessory shoe before
mounting the SB-20. The SB-20 cannot be
mounted on F3-series camera with the other
finders.
