BASIC OPERATION

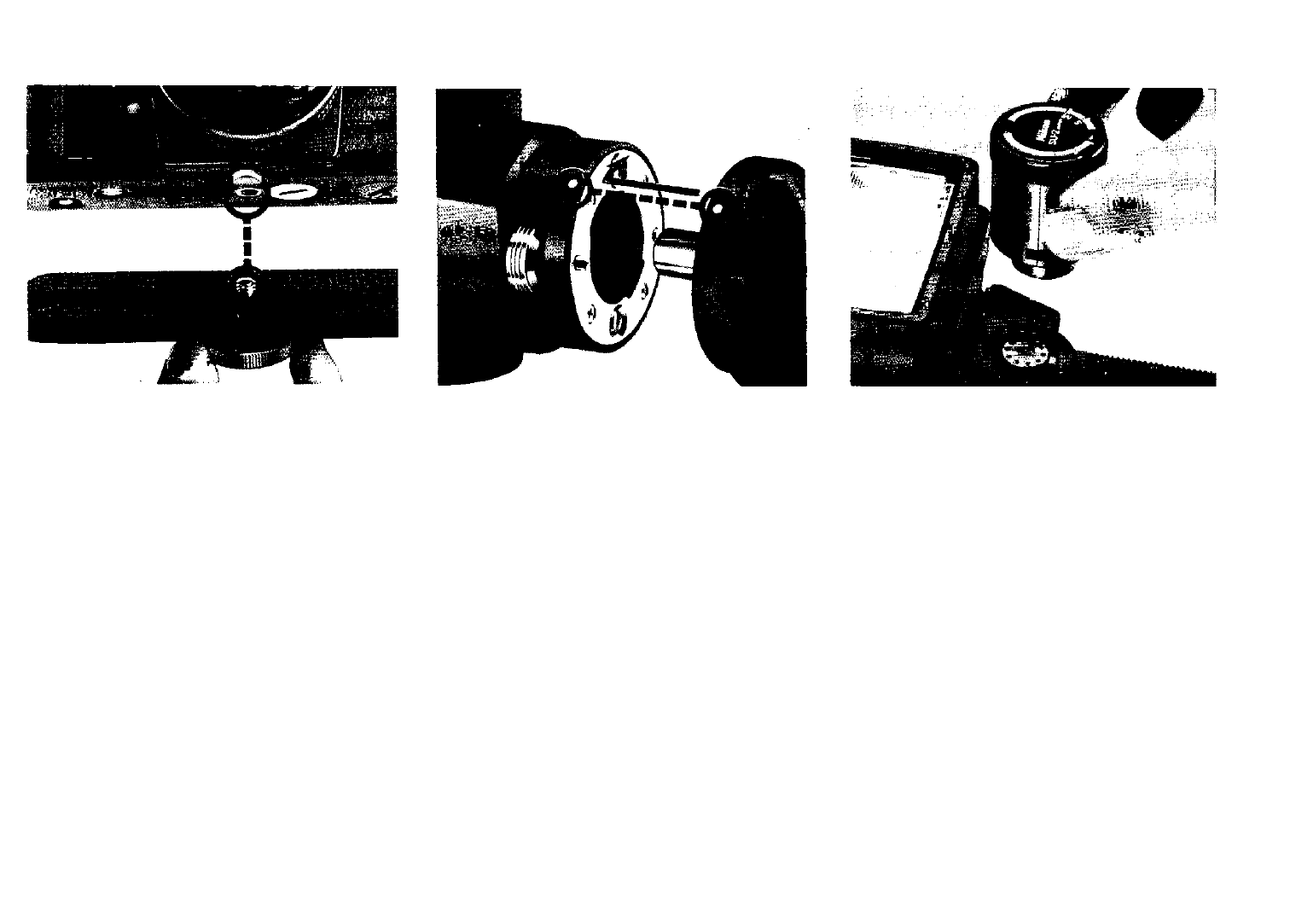

2 Attach the bracket @ to

* the camera.

Screw the bracket's attachment

screw @ into the camera's tripod

socket to secure the two units together

tightly. (For details, refer to page

. )

2 Attach the bracket to the

* flash unit.

Insert the bracket mounting pin @

into the hole in the bracket mounting

adapter (s) with the two white dots @

aligned; rotate the camera forward

until it click-locks into place.

With the “Nikon" name facing toward

the flash head®, align the protrud

ing portion of the Sensor Unit SU-2

with the notched portion inside the

SB-14's sensor socket®; then push

the sensor into the socket until it

click-locks into place.
